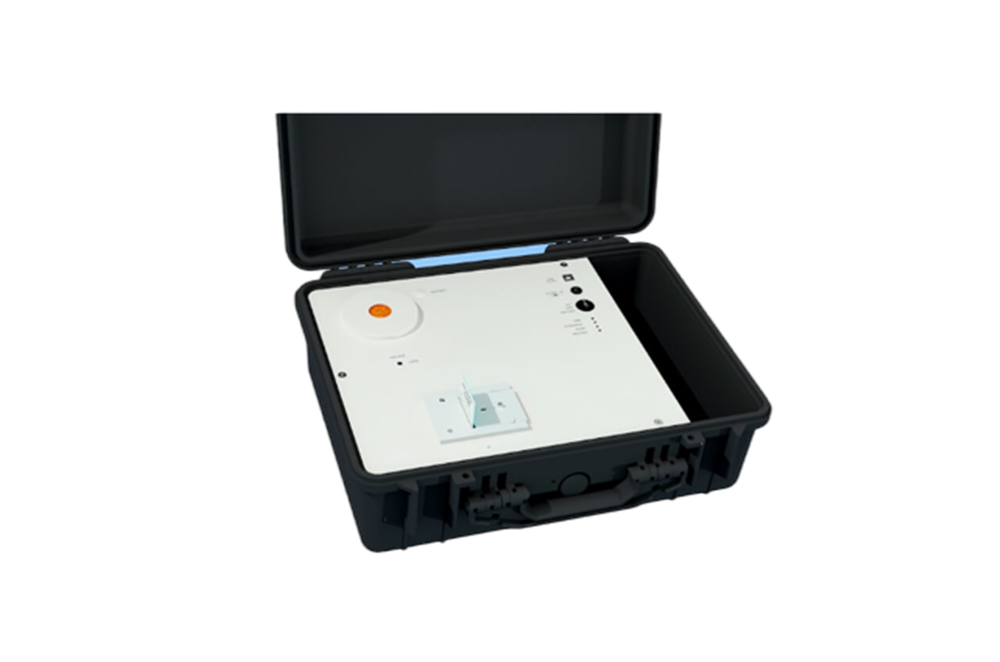

Atomfair FTIR 835 Portable FTIR Spectrometer
Product Overview
Atomfair FTIR 835 Portable Fourier Transform Infrared Spectrometer achieves excellent performance in a compact body with high cost performance and unique design. Its innovative optical structure and exclusive software & hardware configuration greatly shorten the analysis cycle. It is suitable for precise laboratory research, teaching scenarios in universities and colleges, as well as on-site testing in outdoor and remote areas. It is a professional analytical instrument with both versatility and portability.
Core Features
- Compact and portable: small body size, easy to carry and move, suitable for a variety of usage scenarios
- Optical innovation: adopts a new type of compact pendulum roof mirror optical system, avoiding the traditional corner cube optical design and dynamic calibration requirements, solving the optical alignment problem of traditional optical interferometers
- Efficient analysis: matched with specially designed software and firmware, significantly reduce the overall analysis time and improve detection efficiency
- Diverse scenarios: meet the needs of various scenarios such as precise laboratory analysis, college teaching practice, outdoor and remote area on-site testing
Technical Specifications (International Standard)
| Item | Parameter Details |
| Infrared wavelength range | 7000 – 400 cm⁻¹ |
| ZnSe wavelength range | 5000 – 600 cm⁻¹ |
| Resolution | 2 cm⁻¹ |
| Interferometer type | Pendulum type |
| Standard infrared beam splitter | Multi-coated KBr |
| Optional infrared beam splitter | Multi-coated ZnSe |
| Sample processing method | ATR (1 or 3 reflections), Transmission, Reflection |
| Frequency reference | VCSEL Laser |
| Infrared light source | Ceramic |
| Drying oven configuration | Equipped |
| Interface type | USB |
| Data acquisition system | 24-bit, high speed |
| Power supply specification | 12 VDC, 30W |
| Body size (W × D × H) | 49 cm × 39 cm × 20 cm |
| Weight | 12 kg |
| Working temperature environment | 15 – 28℃ |
| Working humidity environment | Below 65% |
Basic Configuration
Includes exclusive analysis software, adapted to the operation of various instrument functions and data processing requirements.
