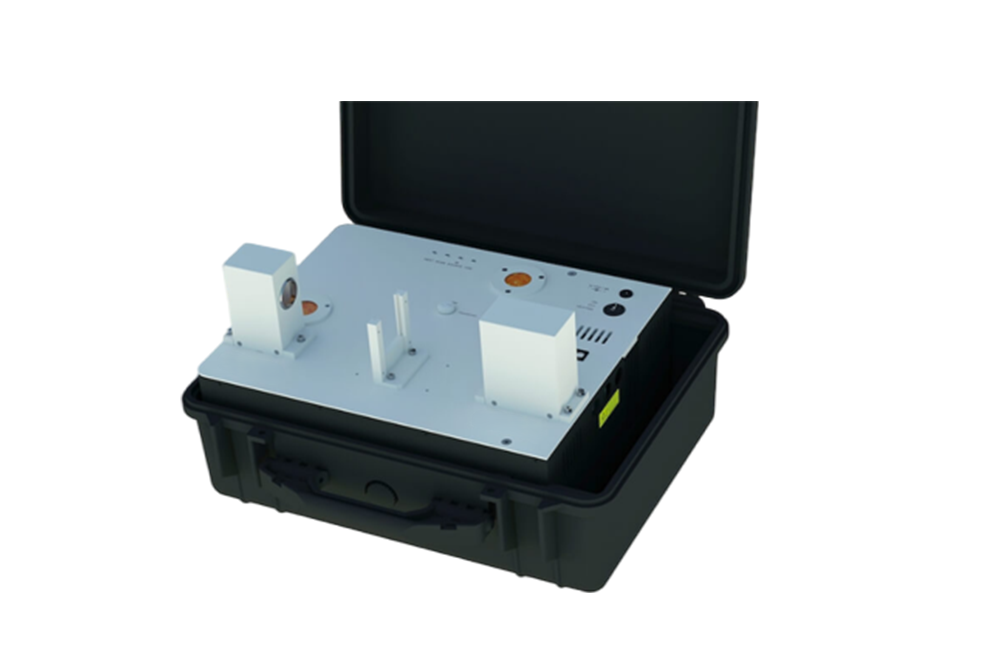

Atomfair FTIR-P 7392 Portable Spectrometer
Product Overview
Atomfair FTIR-P 7392 Portable Fourier Transform Infrared (FTIR) Spectrometer is a cost-effective and high-performance compact instrument. Its unique optical design, proprietary software and firmware configuration greatly shorten the overall analysis time. It is suitable for research laboratories of various institutions, and can also be flexibly applied to testing needs outside the laboratory or in remote areas.
Core Specifications
| Item | Details |
| Wavelength Range | 7000-400 cm⁻¹ |
| Resolution | Standard: 1 cm⁻¹; Optional: 0.5 cm⁻¹ |
| Interferometer Type | Swing type |
| Beam Diameter | 30 mm |
| Aperture Ratio | f 3.2 |
| Beam Splitter | Standard: Multi-coated KBr; Optional: ZnSe |
| Frequency Reference | VCSEL / HeNe Laser |
| Sample Chamber Specification | Open structure, optical axis 63.5 mm above substrate, width 200 mm |
| Sample Diameter | 10 mm |
| Infrared Light Source | High-intensity air-cooled ceramic |
| Detector | Low noise DLATGS |
| Data Acquisition System | 24-bit, high speed |
| Drying Oven Configuration | Equipped |
| Operating System | Windows |
| Interface Type | USB2.0 |
| Power Supply Parameters | 12 VDC, 30 W |
| Instrument Dimensions | 49 cm (W) × 39 cm (D) × 20 cm (H) |
| Instrument Weight | 18 kg |
| Operating Temperature | 15–28℃ |
| Operating Humidity | Below 65% |
Product Advantages
- Compact and portable: Small size with versatility, easy to carry and use in different scenarios.
- Optical advantages: Adopting a new compact Michelson self-compensating optical system, avoiding many optical alignment problems of traditional optical interferometers, without relying on traditional corner cube optics and dynamic calibration.
- Strong compatibility: Compatible with various commonly used accessories to meet diverse testing needs.
- Efficient analysis: Relying on proprietary software, firmware and high-performance hardware configuration, it significantly improves analysis efficiency and shortens testing time.
