Atomfair Infrared Tablet Press Mold Product Information
1. Core Product Information

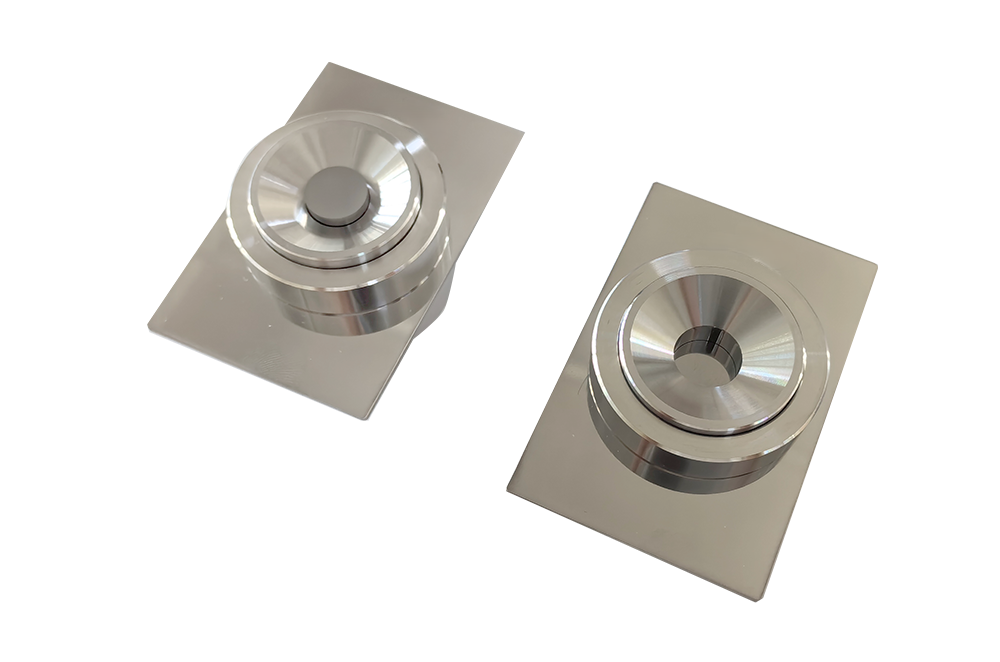

- Product Name: Infrared Tablet Press Mold
- Product Category: Infrared Sampling Accessories, Pellet Mold Series
- Product Code: Atomfair-ITPM-4389
2. Key Specifications (Compliant with International Standards)
| Item | International Standard Specification |
|---|---|
| Core Feature | Non-stick Release Design |
| Mold Material | 304 Stainless Steel (Compliant with international food & laboratory grade stainless steel standards) |
| Indenter Material | Cemented Carbide YT15 (Internationally universal cemented carbide material) |
| Indenter Hardness | HRC85-HRC90 (Rockwell Hardness Scale, international standard) |
| Mold Size | Φ13mm (Tablet forming size, International universal dimension standard) |
| Cavity Depth | 10mm |
| Overall Dimension | Φ76×50×70mm |
| Mold Weight | 0.75kg |
| Standard Configuration | 2 Tablet Inserts Included |
3. Product Application
Specially designed for laboratory infrared test sample preparation, it is the core equipment in infrared sampling processes, suitable for pressing samples such as KBr powder into Φ13mm tablets. Compatible with the pre-test requirements of various infrared spectrometers, it is widely used in sample analysis in chemistry, materials, pharmaceutical and other fields, ensuring the quality of tablet formation and the accuracy of infrared testing.
4. Core Features
- Compliant & Durable Material: The mold is made of 304 stainless steel, and the indenter is made of cemented carbide YT15 (HRC85-HRC90 high hardness), complying with international material standards for laboratory equipment, wear and corrosion resistant with long service life.
- Practical Structural Design: Non-stick release design avoids sample adhesion during pressing, Φ13mm standard forming size plus 10mm cavity depth adapts to conventional sample dosage with convenient operation.
- Complete & Convenient Configuration: Comes standard with 2 tablet inserts, no additional selection is required, directly meeting the storage needs after tablet pressing. The overall size and weight design are suitable for laboratory workbench scenarios.
- Strong Standard Compatibility: Strictly follow the international specifications for infrared sampling equipment, compatible with the sample testing requirements of mainstream infrared spectrometers worldwide, high pressing precision to ensure the reliability of test data.
