Description

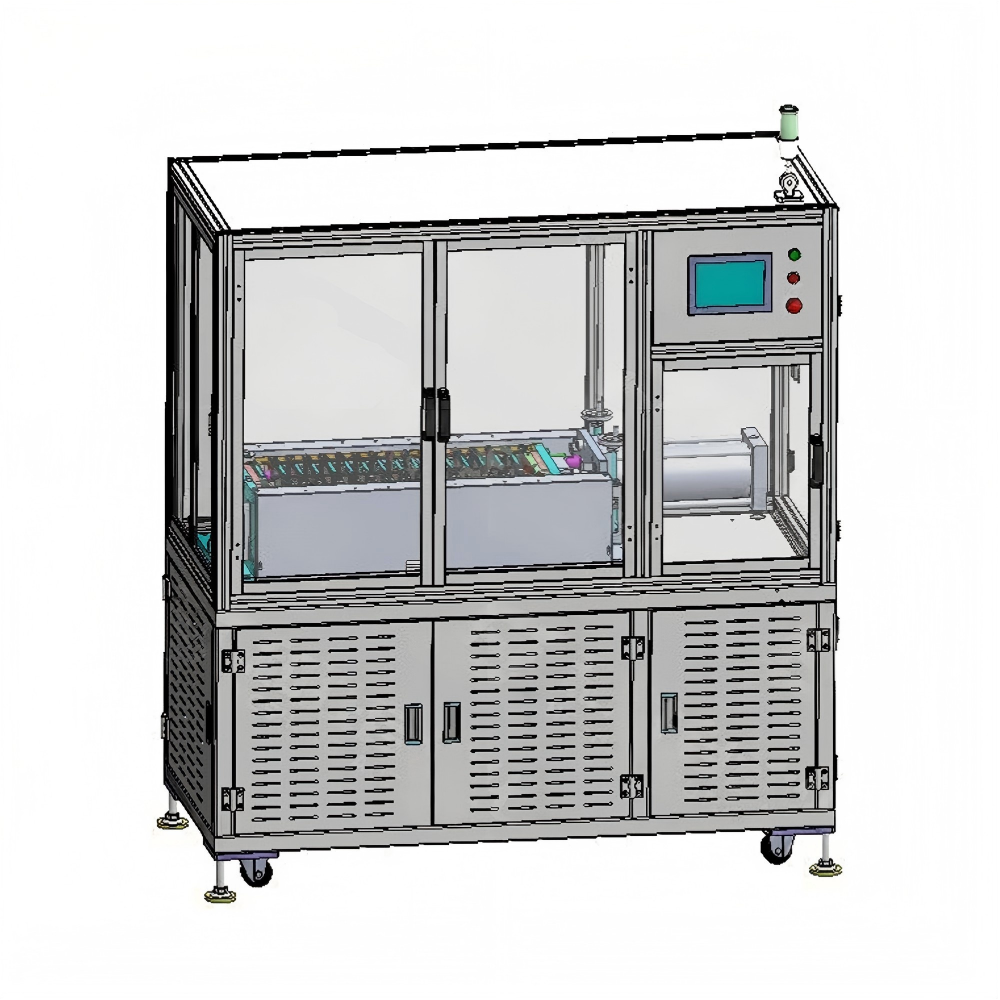

Atomfair Horizontal Hot Press Formation Machine
Product Model
Atomfair-HPF-6410
Release Date
2022-03-14
Dimensions
1650 × 800 × 1800 mm
Weight
1 Ton
Version
V2.0
Product Description
This machine is designed for the formation process of polymer lithium-ion batteries under pressure. It consists of an electrical test control system and heating & pressure fixtures, with 64 independent channels (5V 10A each) for high-efficiency battery formation.
Key Features
- Equipment failure rate ≤ 0.3%, channel utilization rate ≥ 99%
- Temperature control accuracy ±2 ℃, heating range: room temperature ~ 85 ℃
- Pressure control accuracy ±5 kg, max. pressure support up to 5 Tons
- Dual over-temperature protection, automatic alarm and power cut-off when temp exceeds 85 ℃
- 4-wire test method for high-precision voltage and current measurement
- Independent constant current / constant voltage source for each channel
- Fast inspection cycle ≤ 9 seconds
- Support PC control or standalone operation
- Simple calibration via single-point data feedback
- Complete data logging, curve display and Excel export
Technical Specifications
- Charge/Discharge Current: 1 – 10000 mA
- Voltage Range: 0 – 5 V
- Resolution: Current 1 mA, Voltage 1 mV
- Temperature Control: ±2 ℃, up to 85 ℃
- Pressure Control: ±5 kg, max. 5 T
- Channel Count: 64 channels, 5V 10A per channel
- Min. battery thickness: 2.5 mm
- Power Supply: 3-phase AC 380V ±10%, 50 Hz
- Max. power: 6.6 kW
- Communication: RS485
- Protection: Over current, over voltage, under voltage, over capacity, leakage, over-temperature
- Data protection: Power-off data backup ≥ 1 hour
