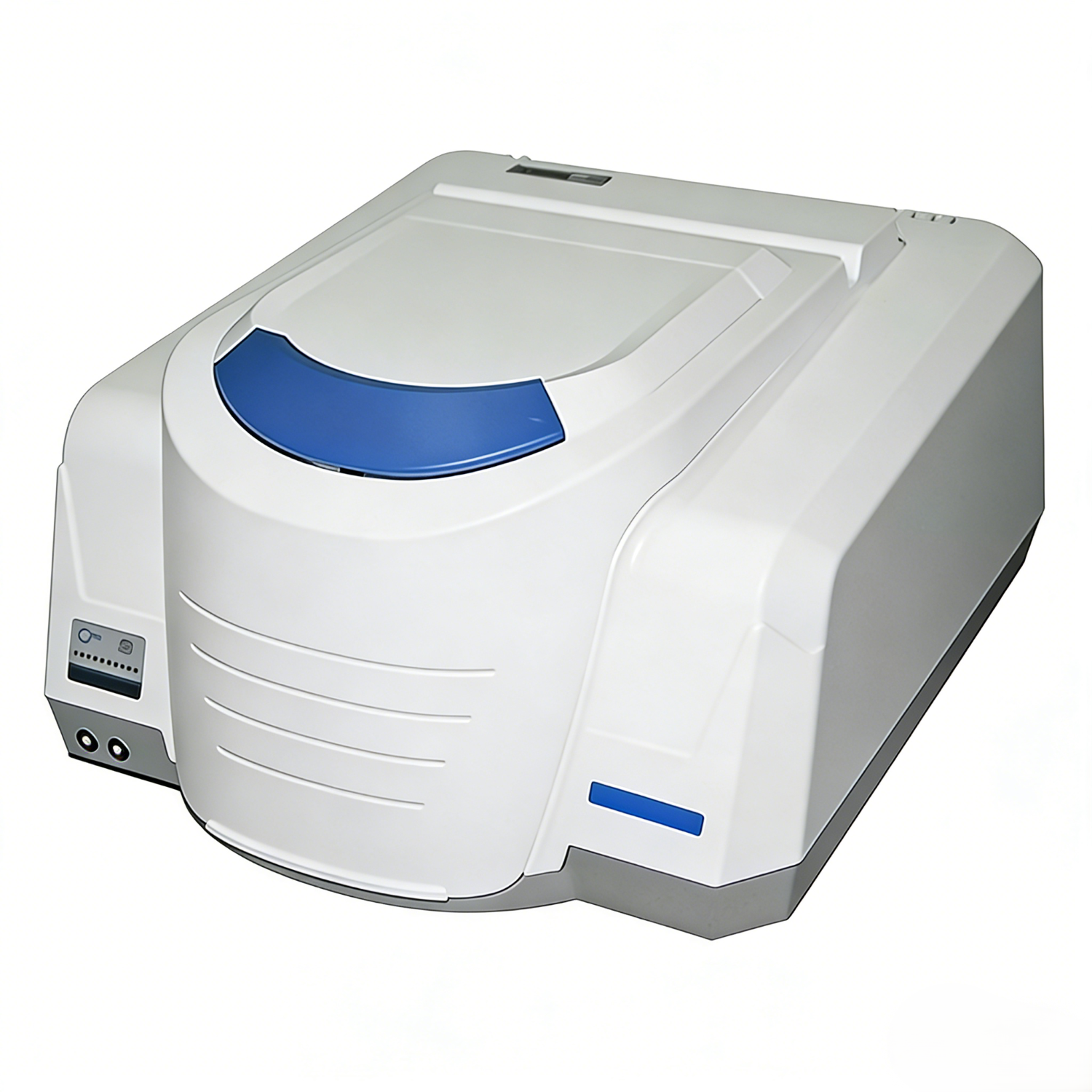

Atomfair-FTIR-510 Fourier Transform Infrared Spectrometer
Product Overview
The Atomfair-FTIR-510 Fourier Transform Infrared Spectrometer (Specialized Analysis System for Semiconductor Coating Materials) is an upgraded analytical instrument based on previous models. Through a series of technological improvements and innovations, it achieves significant performance enhancements, boasting high resolution, strong expandability, reliable stability, user-friendly operation, long service life, and low maintenance costs. Its core technical indicators have reached the advanced level of international similar products. Widely applicable in fields such as pharmaceuticals, chemicals, petroleum, environmental protection, food, materials, public security, national defense, semiconductors, and optics, this instrument is an indispensable professional analytical and testing tool for laboratory scientific research and enterprise production inspection.
Key Technical Specifications (International Standards)
| Parameter Name | Specifications |
|---|---|
| Spectral Range | 7800~350cm⁻¹ |
| Resolution | 0.5cm⁻¹ |
| Detector | Imported high-sensitivity DLATGS |
| Beam Splitter | KBr substrate with germanium coating and moisture-proof layer |
| Scanning Speed | Computer-controlled, selectable scanning speed |
| Light Source | Air-cooled high-energy ceramic light source |
| Signal-to-Noise Ratio | <2.2×10⁻⁵AU (1-minute scan, 4cm⁻¹ resolution) |
| Linearity | <0.1% |
| Wavenumber Accuracy | 0.01cm⁻¹ |
| Power Requirement | AC220V/50Hz |
| Dimensions | 543mm×455mm×248mm |
| Data Acquisition | He-Ne laser |
| Data Transmission Interface | USB 2.0 |
| Supported Operating Systems | Windows XP, Windows 7 |
Core Product Features
- High Resolution Performance: The resolution meets the sample testing needs of users in different scenarios, ensuring accurate detection data.
- Superior Stability: Adopts dynamic mirror alignment technology for real-time dynamic adjustment, guaranteeing the repeatability, long-term stability, and spectral peak integrity of sample detection; Equipped with plane mirrors, effectively overcoming the “spectral distortion” phenomenon of interferometers with cube corner compensation systems; Optimized structural design ensures strong shock resistance, maintenance-free operation, and no need for post-adjustment.
- New Type Infrared Light Source: Uses high-temperature resistant thermal insulation materials and cleverly utilizes apertures to form a semi-enclosed thermal insulation chamber, ensuring long service life; The filament can quickly reach the operating temperature after power-on, featuring high energy efficiency and excellent thermal insulation performance.
- Efficient Moisture-Proof Design: Fully enclosed structure effectively isolates moisture; Equipped with a large-capacity desiccant box, the moisture absorption capacity is increased by 8 times compared with traditional designs, reducing the frequency of desiccant replacement and improving instrument usability.
- Strong Expandability: Large sample chamber design facilitates the expansion of various infrared accessories, including but not limited to gem identification accessories, parallel light accessories, infrared microscope accessories, specular reflection accessories, diffuse reflection accessories, ATR accessories, gas cells, liquid cells, polarization accessories, etc.
- Audit Trail Function: The supporting software is equipped with a “three-level management authority” function, complying with international relevant testing standard requirements.
- Professional Certification Service: Provides 3Q certification and installation services to ensure compliant use of the instrument.
Product Honors
Awarded the title of “2014 Tianjin Key New Product”
Product Applications
Ideal for qualitative and quantitative analysis, material composition identification, and process quality control in multiple industries:
- Pharmaceuticals: Raw material identification, formulation analysis, and compliance testing.
- Chemicals: Chemical composition analysis, reaction process monitoring, and product quality inspection.
- Petroleum: Oil product component analysis and quality evaluation.
- Environmental Protection: Detection of harmful substances in air, water, and soil.
- Food: Food ingredient analysis, additive detection, and quality control.
- Materials Science: Research and development of new materials, and analysis of material structures.
- Public Security & National Defense: Forensic evidence identification and military material testing.
- Semiconductors & Optics: Analysis of semiconductor coating materials and optical component testing.
Frequently Asked Questions
What are the specific technical parameters of the product?
Please refer to the “Key Technical Specifications (International Standards)” section above for detailed parameters.
What are the application cases of the instrument in the pharmaceutical field?
In the pharmaceutical field, the instrument is mainly used for raw material identification, formulation analysis, and compliance testing, providing accurate data support for pharmaceutical quality control and compliance certification.
How low is the specific maintenance cost of the instrument?
The instrument adopts a maintenance-free structural design with excellent shock resistance and moisture-proof performance, reducing the frequency of fault maintenance. The large-capacity desiccant box greatly reduces the replacement frequency of dehumidification consumables. Meanwhile, the core components have a long service life and do not need frequent replacement, so the overall maintenance cost is much lower than similar products in the industry.
