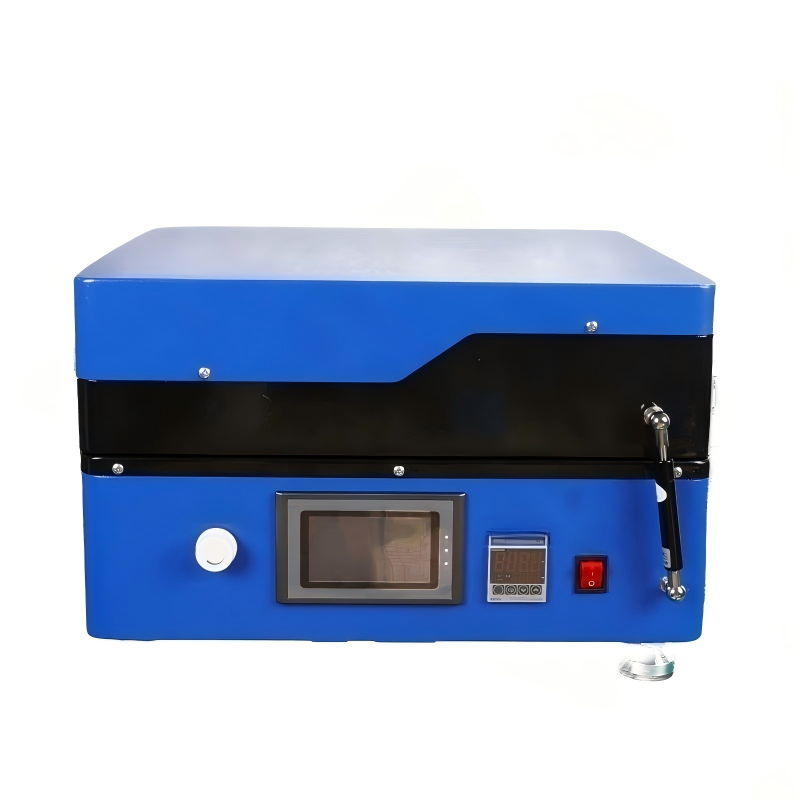

Atomfair Automatic Film Coating & Drying Machine Product Information
Model: Atomfair-AFCD-819
Product Overview
This automatic film coating and drying machine is widely used in various high-temperature film coating research, including ceramic films, crystal films, battery material films and special nano films. It is well-adapted to the development of science and technology for film formation under high-temperature conditions in the future.
Key Features
- Large-area uniform heating ensures high-precision temperature uniformity inside the chamber.
- Flat plate coating with motor-driven scraper for stable and adjustable coating speed.
- Adjustable film coating speed; vacuum aluminum plate enables quick placement/removal of copper foil, aluminum foil, etc.; built-in vacuum pump or external vacuum source connection for substrate adsorption without deformation.
- Standard film former with high coating precision and adjustable coating thickness.
- Usable in a glove box, compact in size for space-saving and easy to operate.
- PLC and touch screen control for convenient setting of all parameters.
Technical Specifications
| Parameter Name | Specific Specifications |
|---|---|
| Coating Speed | 0-100 mm/s (adjustable) |
| Maximum Stroke | 250 mm |
| Vacuum Plate | Equipped with vacuum aluminum flat plate |
| Vacuum Plate Dimension | 365mm × 200mm × 30mm (L×W×H) |
| Scraper Adjustable Range | 0.01~3.5 mm |
| Power Supply | 220V/50Hz |
| Machine Weight | 50 KG |
| Overall Dimensions | 500mm × 310mm × 330mm (L×W×H) |
| Additional Configuration | Equipped with heating and drying system |
