Description

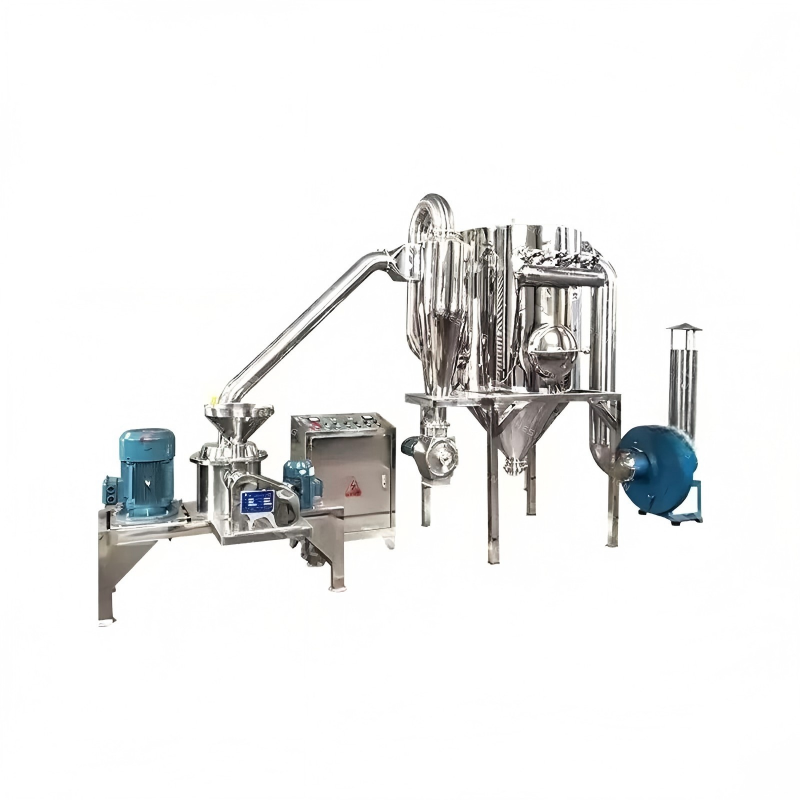

Atomfair Airflow Ultrafine Grinder Product Information
Product Model
Atomfair-AUG-420
Release Date
2024-07-26
Version
V2.0
Dimensions & Weight
- Dimensions: W1800 * D4000 * H3000 mm
- Weight: 800 kg
Product Overview
Airflow ultrafine grinder uses high-speed airflow impact for ultra-fine grinding of dry materials. Widely used in medicine, food, chemical, cosmetics, feed, ceramics and other industries.
Key Features
- No temperature rise: grinding at room temperature, avoids material degradation.
- No pollution: material self-collision, no grinding medium.
- Low wear: particle collision, little contact with chamber wall.
- Low energy consumption: high efficiency and energy saving.
- GMP compliant: suitable for pharmaceutical and food industries.
Technical Specifications
- Power: 3-phase 5-wire AC380V, 50Hz; air compressor 22kW; feeder 0.75kW
- Vibratory feeder: 2–10 kg/hr, self-cleaning screw
- Hopper volume: 30 L
- Powder contact parts: SUS304
- Grinding chamber diameter: 200 mm
- Capacity: 500 g–10 kg/hr
- Working pressure: 0–10 Bar
- Process gas consumption: 2.7 Nm³/min @10 Bar
- Cyclone: TFJ20, SUS304, internal polished
- Dust collector: filtration area 10 m², SUS304
- Gas supply: clean compressed air or nitrogen, ≥0.8 MPa, 2.7 m³/min
- Dimensions: W1800 * D4000 * H3000 mm
- Weight: approx. 800 kg
