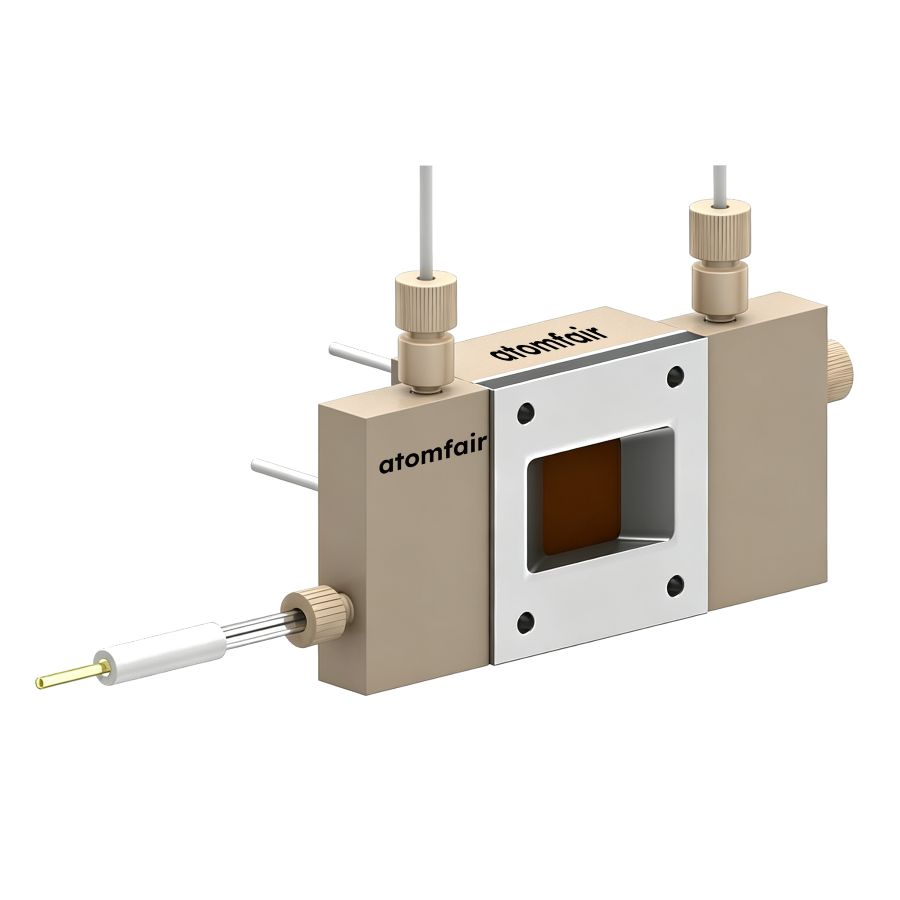

Multifunctional In-situ Testing Electrochemical CellProduct Type: Multifunctional in-situ flow cell
Research-grade laboratory product
|
|||||||||||||||||||||||
|
|||||||||||||||||||||||
|
LABORATORY PROCUREMENT SUPPORT
For model selection, technical compatibility or configuration confirmation, contact our technical sales team.
E-MAIL: inquiry@atomfair.com
|
|||||||||||||||||||||||
|
Manufacturer: Atomfair LLC LLC
Brand: ATOMFAIR®
|
This electrochemical cell requires careful selection of windows and electrodes based on the intended in-situ measurement technique. The flow path must be assembled correctly to ensure proper electrolyte circulation and sealing.
- Window Selection: Choose between quartz, sapphire, Kapton, or beryllium windows according to the optical or X-ray measurement technique (UV/Raman, XAFS, or XRD).
- Electrode Contact Mode: The working electrode must be configured in either standard or gas diffusion contact format depending on the experimental requirements.
- Flow Path Assembly: Assemble the cell to create a closed flow path that directs electrolyte past the reference, working, and counter electrodes.
- Body Material Compatibility: The titanium and PEEK body materials offer chemical resistance; verify compatibility with the specific electrolyte and conditions.
- Customization: For non-standard electrode sizes or window materials, confirm specifications with the manufacturer to maintain proper sealing and function.
What are the trade-offs between using quartz, sapphire, Kapton, or beryllium windows for in-situ electrochemical cell measurements on the Atomfair AF-IS-MULT?
The window selection depends on the analytical technique: quartz or sapphire for UV/Raman, Kapton for XAFS, and beryllium for XRD. The cell's replaceable front window allows switching between these modes. The standard configuration includes a sapphire window, but other windows are available upon request. The chamber size is 15x15x1.2 mm, and the window must be compatible with the cell body.
Does the Atomfair AF-IS-MULT cell support both standard and gas diffusion working electrode formats, and what are the implications for integration into a flow cell setup?
Yes, the cell supports both standard and gas diffusion contact formats. The standard format is for conventional electrodes, while the gas diffusion format enables operation with gas diffusion electrodes for gas-involving reactions. The cell is a multifunctional flow cell with a closed flow path where electrolyte flows past the reference, working, and counter electrodes. The body is made of high-purity titanium and PEEK for chemical compatibility.
What are the key handling and infrastructure requirements for the Atomfair AF-IS-MULT in-situ electrochemical cell?
The cell has a chamber size of 15x15x1.2 mm, requiring precise electrode alignment and careful assembly. The standard configuration includes an Ag/AgCl reference electrode and a sapphire window. Standard protective packaging is used for delivery, but custom reinforcement is available for fragile components. The cell is made of high-purity titanium and PEEK, which are chemically inert but should be handled with care to avoid contamination.
The Atomfair AF-IS-MULT multifunctional in-situ flow cell is a research-grade electrochemical cell designed for multiple in-situ characterization modes, featuring replaceable windows (quartz, sapphire, Kapton, beryllium) and a closed electrolyte flow path with standard and gas diffusion working electrode contact formats.
Positive
- Multi-modal in-situ compatibility: Replaceable front window options (quartz/sapphire for UV/Raman, Kapton for XAFS, beryllium for XRD) enable the same cell body to support multiple spectroscopic and diffraction techniques without requiring separate cell purchases.
- Closed flow path with dual contact modes: Electrolyte flows past all three electrodes in a closed loop, and both standard and gas diffusion working electrode contact formats are supported, allowing direct adaptation to different electrode architectures within a single cell design.
Trade-offs
- Separate accessory procurement required: Electrodes, membranes, windows, and gas diffusion electrodes are not included in the standard configuration and must be ordered separately, requiring careful pre-order specification to ensure compatibility.
- Customization lead time for non-standard parts: Non-standard electrode sizes or window materials require custom inquiry and confirmation before ordering, which may extend procurement lead times and necessitate additional technical coordination.
