Multifunctional Combination Carbon Paste (Adjustable) Working Electrode Series | ATOMFAIRRESEARCH GRADE INSTRUMENT
|
|||||||||||||||||||||||
|
|||||||||||||||||||||||
|
TAILORED SOLUTIONS FOR RESEARCH
Contact our engineering team for technical support or official institutional quotations.
EMAIL: inquiry@atomfair.com
|
|||||||||||||||||||||||
|
Manufacturer: Atomfair LLC
Brand: ATOMFAIR®
|
|||||||||||||||||||||||
The electrode surface is highly sensitive to contamination and requires anhydrous inert atmosphere storage to prevent phase degradation. The electrode head thickness under 4mm enables direct SEM/AFM integration but imposes strict handling protocols to avoid surface damage.
- Surface Contamination Sensitivity: Keep containers tightly sealed or handle exclusively within an anhydrous inert environment to prevent phase contamination or degradation before electrochemical validation.
This procedure describes surface renewal and electrode preparation for consistent electrochemical measurements. The adjustable carbon paste design allows facile surface renewal to eliminate memory effects between experiments.
Required Equipment: Anhydrous inert environment (glovebox or sealed chamber), Carbon paste composite (provided with electrode), Polishing pad or clean surface
- Prepare inert environment
Transfer the electrode into an anhydrous inert atmosphere glovebox or sealed chamber to prevent moisture or oxygen contamination. - Renew carbon paste surface
Remove the old carbon paste from the electrode cavity and refill with fresh carbon paste composite, pressing firmly to ensure uniform packing. - Polish the electrode surface
Polish the filled carbon paste on a clean polishing pad using gentle circular motions until a smooth, flat disk surface is achieved. - Verify surface integrity
Inspect the polished surface under magnification to confirm absence of cracks, voids, or contamination before electrochemical use. - Mount for electrochemical measurement
Secure the electrode head into the electrochemical cell assembly, ensuring electrical contact and proper sealing against the cell body.
How sensitive is correlative electrochemical and SEM/AFM performance to carbon paste surface contamination after renewal?
Surface contamination critically compromises both electrochemical and microscopic data fidelity. The electrode head thickness is under 4mm, enabling direct SEM or AFM imaging, but the manufacturer specifies that containers must be kept tightly sealed or handled within an anhydrous inert environment to prevent phase contamination or degradation before electrochemical validation. After surface renewal via the adjustable carbon paste design, immediate inert-atmosphere handling is required to avoid artifacts from ambient moisture or airborne particulates on the fresh carbon surface.
Will this carbon paste working electrode integrate with standard electrochemical cell ports or SEM sample stages without custom adapters?
Yes, the modular detachable design with head thickness under 4mm allows direct mounting in conventional electrochemical cells and fitting within SEM/AFM sample chambers without adapter modification. The embedded disk diameters range from 2mm to 4mm, covering typical micro- and macro-electrode scales. However, compatibility with specific cell port threads or stage clamps should be verified; the product description does not specify thread pitch or connector geometry beyond the modular configuration.
How does the adjustable carbon paste composition affect potential window limits relative to fixed commercial carbon-paste electrodes?
The adjustable carbon paste formulation provides a wide potential window and low background current characteristic of high-quality carbon paste composites, but no quantified upper or lower potential limits are provided in the source. Unlike fixed-composite electrodes, the user-adjustable design allows facile surface renewal and modification of paste composition for specific redox systems, yet the exact potential range will vary with the paste batch and any dopants added. Researchers must empirically determine the working potential window for their specific formulation before quantitative experiments.

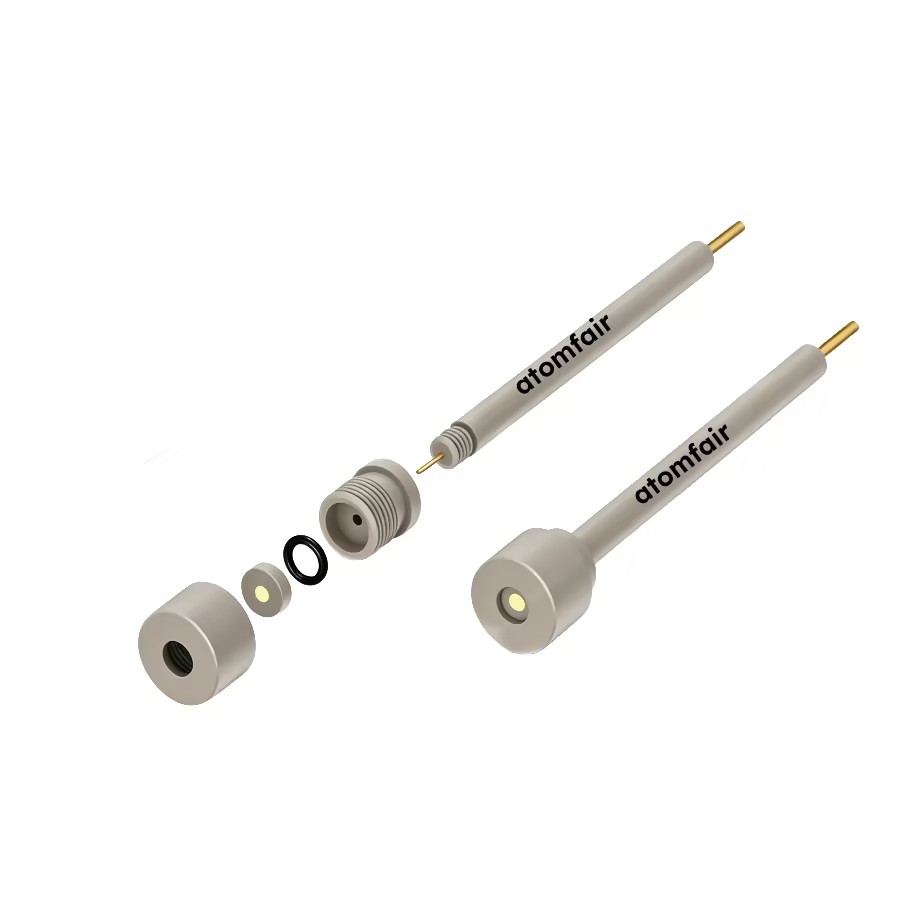

The ATOMFAIR Multifunctional Combination Carbon Paste Working Electrode (Adjustable) offers a unique correlative electrochemical-microscopic analysis capability by integrating a thin (<4 mm) electrode head compatible with SEM and AFM, enabling direct structure-function correlation on the same surface. Its adjustable carbon paste composition and 2–4 mm diameter range provide flexibility for sensor development and surface renewal, but the carbon paste material requires strict anhydrous inert handling to prevent contamination or degradation before use.
Positive
- Correlative electrochemical-microscopic analysis: The electrode head thickness of less than 4 mm allows direct integration with SEM or AFM systems, enabling structural and topographical correlation with electrochemical data from the identical electrode location without sample transfer.
- Adjustable carbon paste with surface renewal: The user-adjustable carbon paste configuration facilitates facile surface renewal and electrode refilling, ensuring fresh electrode surfaces for each experiment and eliminating memory effects.
Trade-offs
- High sensitivity to surface contamination: The product is highly sensitive to surface contamination; containers must be kept tightly sealed or handled exclusively within an anhydrous inert environment to prevent phase contamination or degradation before electrochemical validation.
