1100 mAh 18650 Cylindrical Sodium-Ion Cell - 4 Pack
1100 mAh 18650 Cylindrical Sodium-Ion Cell - 4 Pack - Image 2

1100 mAh 18650 Cylindrical Sodium-Ion Cell – 4 Pack

$33.00

Institutional Procurement & Supply Compliance: As a verified US supplier, Atomfair accepts formal institutional Purchase Orders (POs), contract billing schedules, and custom procurement loops for university and national laboratories, and corporate R&D departments globally.

1100 mAh 18650 Cylindrical Sodium-Ion Cell for sodium-ion battery applications. Confirm the selected configuration, quantity and integration requirements before quotation.

SKU: AF-BT-C-N110-1100-0007
Category:
Brands:

1100 mAh 18650 Cylindrical Sodium-Ion Cell – 4 Pack | ATOMFAIR

Product Type: Sodium-ion battery product
Sodium-ion battery product

Product Overview

The 1100 mAh 18650 cylindrical sodium-ion cell is specified with a 3.0 V nominal voltage, 4.2 V charging cut-off and 2.0 V discharge ending voltage.

The cell measures up to 65.1 mm in height and 18.4 mm in diameter, with a maximum continuous discharge current of 1.1 A and a maximum pulse discharge current of 2.2 A.

Performance Features
  • 1100 mAh rated capacity and 3.0 V nominal voltage.
  • 0.5C standard charging and discharge current.
  • 4.2 +/-0.05 V charging cut-off and 2.0 +/-0.05 V discharge ending voltage.
  • Maximum continuous discharge current of 1.1 A.
  • Maximum pulse discharge current of 2.2 A.

Technical Specifications
Parameter Specification / Available Values
Atomfair Model AF-CY-1100D
Product Form 18650 cylindrical sodium-ion rechargeable cell
Rated Capacity 1100 mAh
Nominal Voltage 3.0 V
Charging Voltage 4.2 +/-0.05 V
Discharge Ending Voltage 2.0 +/-0.05 V

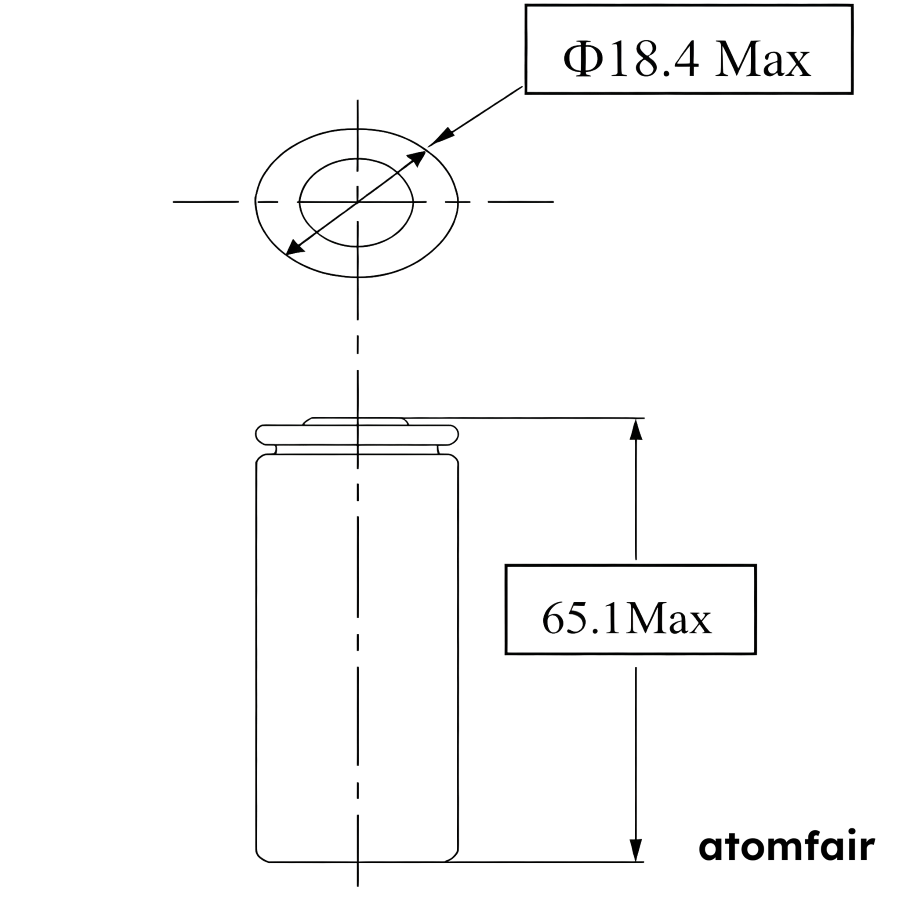

Dimensions Maximum height 65.1 mm; maximum diameter 18.4 mm
Weight <=40 g
Maximum Continuous Discharge 1.1 A
Maximum Pulse Discharge 2.2 A
Internal Resistance <=60 mOhm at 650 Hz AC impedance
Before Quotation: Confirm the selected 18650 cylindrical cell model, quantity and intended device or battery-pack application before quotation.
Specification Confirmation: Review charging cut-off, discharge cut-off, current limits, temperature and resistance requirements.
Application Matching: Match the 18650 dimensions, terminal arrangement, protection circuit and charger limits with the finished pack.
Information to Include: Include target capacity, quantity, charger specification, discharge profile and pack assembly requirements.
BATTERY PROCUREMENT SUPPORT
For model selection, system matching or configuration confirmation, contact our technical sales team.
E-MAIL: inquiry@atomfair.com
Supplier: Atomfair
Brand: ATOMFAIR®

Every advanced material, component, equipment, and instrument in our catalog is backed by rigorous testing. We maintain strict internal quality management frameworks and align with CE conformity metrics to deliver transparent, reproducible performance data via our public open-science repository.

To request raw batch performance data, submit formal vendor registration paperwork, or execute a fast-turnaround R&D manufacturing loop, contact us at inquiry@atomfair.com.

Item is dispatched under the Atomfair Shipping & Delivery Framework (Free worldwide shipping on orders over $59 USD excl. heavy equipment). Return is governed by the Atomfair Return & Refund Policy (7-day technical return window).
