This Si-C result should be read as a formation-aware high-energy anode dataset, not as a simple capacity brag. The supplied chart reports 1802.15 mAh/g and 96.48% coulombic efficiency on the shown second cycle at 4.5 mg/cm2 loading in a lithium-metal 2320 coin cell. That means the material is already beyond the first pass through formation and into the state you actually want to judge when deciding whether a silicon-carbon anode is worth taking seriously. The number is huge, but the context is what makes it useful.

Why the Second Cycle Matters More Than the First Impression

Silicon-carbon anodes are not judged cleanly by a single early curve because the material spends real energy on interphase formation and structural accommodation. The second cycle is therefore the better readout for stabilized reversible capacity. In this case, the second-cycle figure is exceptionally strong: it says the electrode can recover and move a very large amount of lithium after the initial formation work has already happened. That is the kind of result that pushes a team from curiosity into serious design planning.

ParameterReported condition or result
SampleSiC silicon-carbon anode
Cell format2320 coin cell, lithium-metal half cell
Counter electrodeLithium metal
ElectrolyteCarbonate-based electrolyte
Voltage range0.008-1.5 V
Charge / discharge rate0.1C / 0.1C
Test temperature25 +/- 1 C
Reported specific capacity1802.15 mAh/g
Reported coulombic efficiency96.48% on the shown second cycle
Electrode loading4.5 mg/cm2

What 1802.15 mAh/g Means in Practice

The capacity is so high that the areal number matters even more than usual. At 4.5 mg/cm2, the loading corresponds to about 8.11 mAh/cm2. That is a very different balancing problem from graphite or LFP: the anode can easily outrun a conventional cathode if the rest of the stack is not designed with the same seriousness. The result is exciting precisely because it creates new design space, but it is also a warning that the full cell will not be forgiving if the cathode, N/P ratio, and formation strategy are treated casually.

The voltage window and the second-cycle efficiency also matter together. The 0.008-1.5 V range captures the low-voltage silicon-carbon behavior expected for high-capacity lithiation and delithiation, while the 96.48% CE on the shown second cycle suggests a strong stabilized response after formation. That is not the same as saying the first cycle loss was small. It means the tested state has already reached a useful operating condition, which is exactly what a development team wants to see before scaling further.

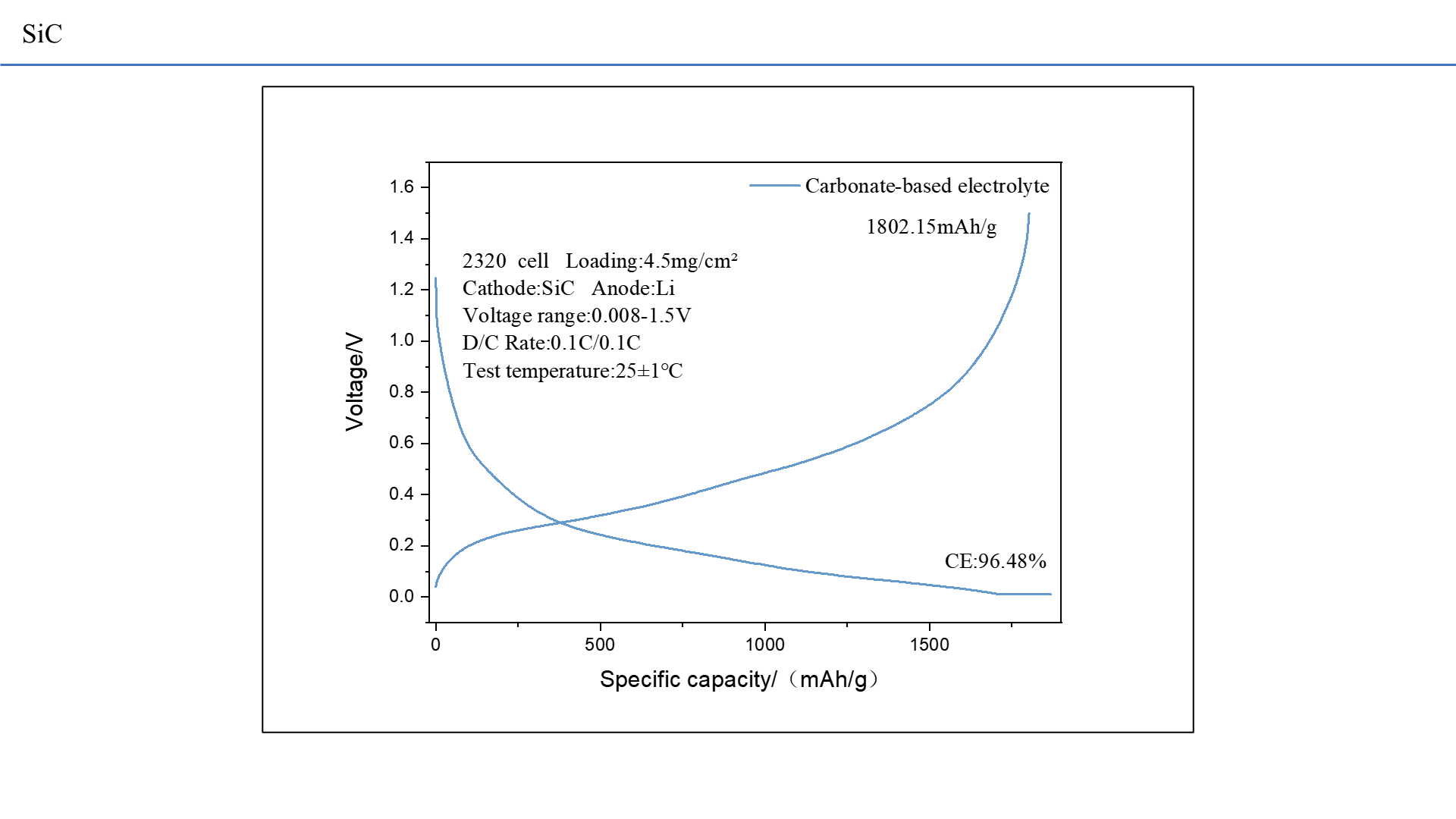

Si-C anode charge-discharge profile at 4.5 mg/cm2, 0.008-1.5 V, 0.1C/0.1C, and 25 +/- 1 C on the shown second cycle.
Figure 1. Si-C anode charge-discharge profile on the shown second cycle. The supplied chart reports 4.5 mg/cm2 loading, 0.008-1.5 V, 0.1C/0.1C, 25 +/- 1 C, carbonate-based electrolyte, 1802.15 mAh/g specific capacity, and 96.48% coulombic efficiency.

What the Data Supports

QuestionWhy it matters
Is this a formation-sensitive material?Yes. Silicon-carbon anodes only make sense when the first and second cycles are read in context, because formation loss and recovery are both part of the story.
What is the practical areal capacity?About 8.11 mAh/cm2, which is high enough to reshape full-cell balancing decisions.
Does the result already prove pouch-cell readiness?No. It shows a strong half-cell response, but expansion control, collector choice, and stack pressure still matter.
Is this a drop-in graphite replacement?No. It is a higher-energy route with different mechanical and interfacial demands.

For a follow-up, compare this electrode concept against a dedicated silicon-carbon anode powder or another custom Si-C build so the loading, binder, and current collector are all explicit. If the current collector needs to be optimized for this anode class, the carbon-coated collector route is relevant, and a single-side coated carbon copper foil is a practical product reference for that design conversation.

Next Validation Step

The next experiment should repeat the second-cycle condition across multiple cells, then add rate capability, longer cycling, impedance tracking, and expansion checks. Use battery test equipment and instruments that can preserve the same 1.5 V upper cut-off, current profile, rest steps, and export rules across the comparison set. The broader Battery Research hub is the right route when the project needs to connect anode material selection, current collector choice, and cell validation into one workflow.

Only after the Si-C behavior is repeatable should the team move to a lithium-ion dry pouch-cell platform or another paired format. That step has to include measured cathode capacity, N/P target, stack pressure, electrolyte amount, and formation protocol, because silicon-carbon performance is only half the story in a real device.

Publication Boundary

This article should be published as a technical interpretation of the supplied silicon-carbon half-cell curve. It may state the loading, capacity, second-cycle efficiency, voltage range, rate, temperature, and electrolyte description. It should not claim cycle life, pouch-cell readiness, or production suitability without more evidence. For a comparable silicon-carbon anode or test plan, specify the active-material basis, coating process, current collector, anode chemistry, N/P target, electrolyte, and validation objective.
