The most important feature of this Ni90 result is not only the reported 220.80 mAh/g. It is the fact that the value appears at a stated 28.5 mg/cm2 loading in a lithium-metal 2320 coin cell. That makes the dataset relevant to high-loading cathode screening, where a material must deliver useful capacity without being evaluated only under a very light coating. The 88.98% first-cycle efficiency also needs to stay in the same conversation, because high gravimetric capacity and first-cycle lithium loss will both affect the next full-cell design.
Why 28.5 mg/cm2 Changes the Interpretation
A high-loading electrode changes the question from “what can the powder deliver?” to “how much cathode capacity remains accessible after the electrode is built?” The reported Ni90 trace uses 28.5 mg/cm2, 2.5-4.3 V, 0.1C/0.1C, and 25 +/- 1 C. If the loading is an active-material basis, 220.80 mAh/g corresponds to roughly 6.29 mAh/cm2. That conversion is an engineering estimate, not a substitute for a confirmed formulation or measured areal-capacity record.
This is the point at which a ready-made lithium-ion electrode sheet becomes more informative than powder capacity alone. Researchers need to compare coating loading, current collector, thickness, density, and process route because the same Ni90 chemistry can behave differently when transport distance and electrode resistance increase.

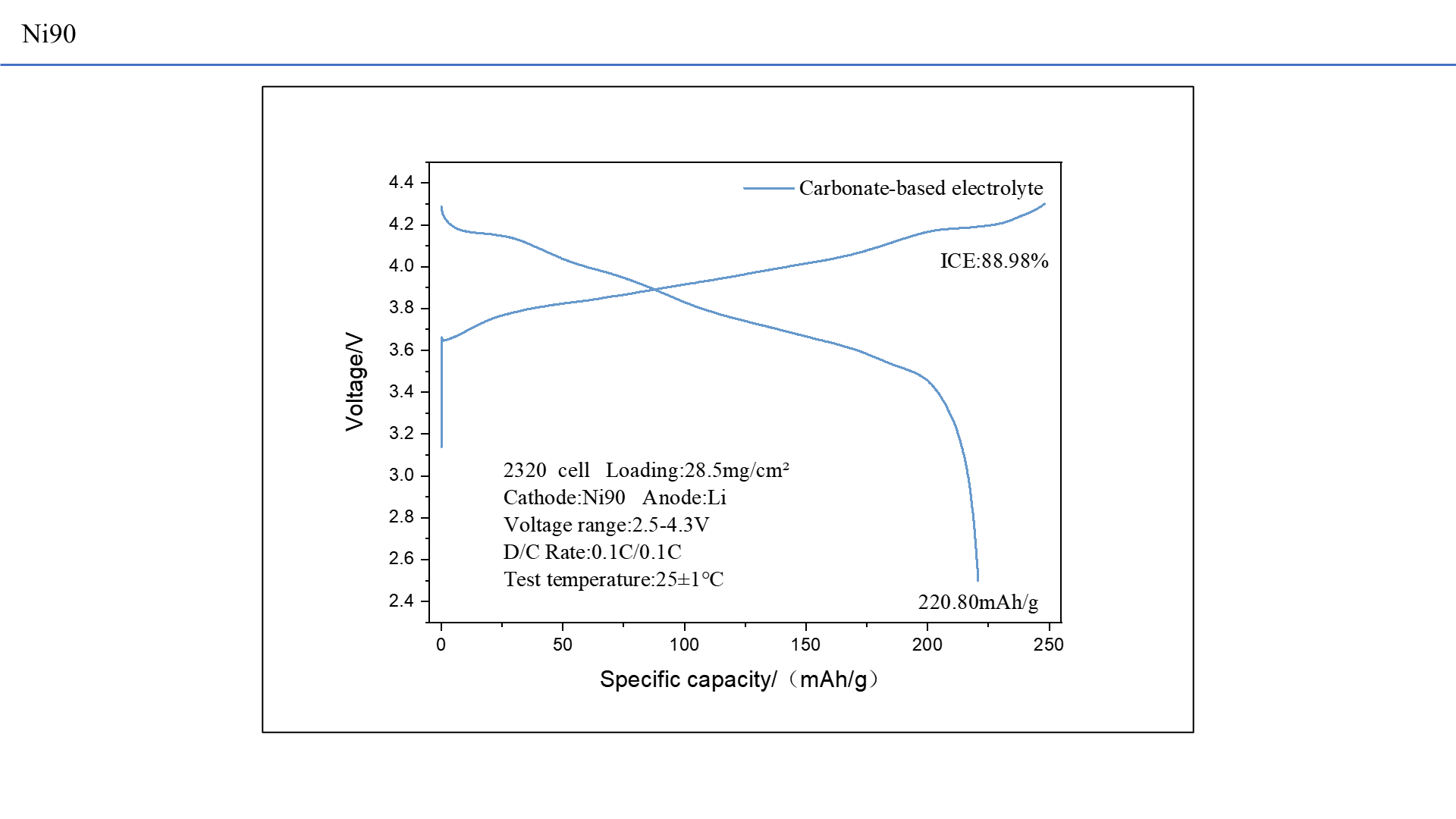

The Source Curve and Its Test Boundary
The supplied figure shows one Ni90 charge-discharge profile with a carbonate-based electrolyte. The lithium-metal counter electrode makes it a cathode-focused half-cell screen: it helps isolate the cathode response, but it does not include the lithium-inventory and balancing constraints of a graphite or silicon-carbon full cell. The chart therefore supports a high-loading cathode qualification signal, not a completed battery-performance claim.
| Parameter | Reported condition or result |
|---|---|
| Cathode | Ni90 high-nickel lithium cathode |
| Cell format | 2320 coin cell |
| Counter electrode | Lithium metal |
| Electrolyte | Carbonate-based electrolyte |
| Electrode loading | 28.5 mg/cm2 |
| Voltage range | 2.5-4.3 V |
| Charge / discharge rate | 0.1C / 0.1C |
| Test temperature | 25 +/- 1 C |
| Reported capacity | 220.80 mAh/g |
| Reported first-cycle efficiency | 88.98% |
| Estimated areal capacity | About 6.29 mAh/cm2 if the stated loading is active-material loading |
| Data source | Ni90 charge-discharge performance chart supplied for this article |
Capacity Is Only Half of the High-Loading Decision
The capacity number is strong enough to justify repeat testing, but the first-cycle efficiency indicates that the electrode still needs a lithium-inventory review before full-cell translation. An 88.98% first-cycle efficiency means the initial charge and discharge are not fully reversible under the reported half-cell protocol. In a lithium-metal half cell, excess lithium can make this loss look less limiting than it would in a practical graphite or silicon-carbon full cell.
For the next experiment, the useful comparison is not simply a second copy of the same curve. Repeat the 28.5 mg/cm2 condition, add at least one lower-loading control, and record areal capacity, electrode thickness, density, impedance, and cell-to-cell spread. This separates a real high-loading advantage from a single-cell result that may depend on coating uniformity or wetting.
A graphite anode sheet or silicon-carbon anode route should be selected only after the cathode areal capacity and first-cycle loss are measured under matched conditions. The hard-carbon and graphite products are not interchangeable simply because both are anode materials; the lithium inventory, N/P ratio, and formation plan must follow the intended full-cell chemistry.
What High-Nickel Qualification Still Needs
High-nickel cathodes can be sensitive to upper-voltage control, electrolyte compatibility, particle cracking, surface reconstruction, and thermal or impedance growth. None of those behaviors should be inferred from this single first-cycle trace. The next validation package should add repeat cells, longer cycling, rate capability, impedance tracking, post-cycle inspection, and a controlled comparison of the same electrode at different loadings.
Use battery test equipment and instruments that can hold the same 2.5-4.3 V limits, current profile, rest steps, and export rules across the loading matrix. The Battery Research hub is the appropriate next route when a team needs to connect high-nickel cathode screening with electrode manufacturing and full-cell validation.
Where the Result Can Go Next
The practical use of this result is high-loading lithium-ion cathode qualification. It can support a decision about whether Ni90 deserves a broader electrode matrix, a matched graphite or silicon-carbon full cell, or a dry pouch-cell feasibility run. A dry pouch-cell platform becomes meaningful only after the high-loading cathode condition, anode capacity, N/P ratio, electrolyte volume, and formation protocol are defined together.
Data Scope
This article interprets the supplied Ni90 first-cycle voltage-capacity chart only. It supports the reported 220.80 mAh/g capacity, 28.5 mg/cm2 loading, 2.5-4.3 V window, 0.1C/0.1C rate, 25 +/- 1 C temperature, carbonate-based electrolyte, and 88.98% first-cycle efficiency. It does not add cycle-life, rate-retention, impedance, density, thermal, safety, full-cell energy, or pouch-cell claims. Researchers requesting a comparable Ni90 electrode or full-cell test should specify loading basis, coating process, collector, anode chemistry, N/P target, electrolyte, and validation objective before requesting technical support from ATOMFAIR.
