ATOMFAIR® EB82-120G-01MG-R SEMI-MICRO ANALYTICAL BALANCEEB82-120G-01MG-R CORE SPECIFICATION PLATFORM
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
TAILORED INDUSTRIAL LAB SOLUTIONS
Contact our elite laboratory engineering team for institutional bulk procurement quotes or interface custom integration.
EMAIL: INQUIRY@ATOMFAIR.COM
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
MANUFACTURER OPERATIONS: ATOMFAIR LLC INSTRUMENTS DIVISION
REGISTERED BRAND: ATOMFAIR®
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
The EB82-120G-01MG-R requires a controlled environment and a mandatory warm-up period to achieve specified semi-micro resolution. External weight calibration must be performed after warm-up and when environmental conditions shift beyond 1.5°C or after 2 hours of operation.
- Ambient Temperature: Maintain operating ambient temperature between 18°C and 23°C to ensure measurement accuracy.
- Humidity Range: Keep workspace relative humidity within 20% to 80% RH to prevent condensation or drift.
- Warm-Up Period: Allow the balance to warm up for 30 to 60 minutes after power-on before performing zeroing or calibration.
- Calibration Requirement: Perform external calibration using a 10 g reference mass after warm-up and whenever environmental changes exceed 1.5°C or 2 hours have elapsed.
- Power Supply Requirement: Connect the balance to a 220V AC/50Hz power source using the provided adapter to ensure proper operation.
What external calibration weight is required for the EB82-120G-01MG-R semi-micro analytical balance?
The EB82-120G-01MG-R requires a 10 g external reference mass for calibration, as specified in the target model specification matrix. This external weight calibration workflow supports compliance verification for semi-micro target validation and analytical chemistry powder sampling.
Can the EB82-120G-01MG-R be integrated with a LIMS system via its RS232 interface?
Yes, the integrated bidirectional RS232 communication bus establishes standard hardware pipelines to micro-printers, lab host computer terminals, and third-party LIMS management systems. This enables direct data transfer for multi-range verification pipelines and external calibration compliance workflows.
What is the required warm-up time before using the EB82-120G-01MG-R for semi-micro measurements?
A mandatory preheating threshold of 30 to 60 minutes following power-on initialization is required to preserve uncompromised semi-micro resolution linearity. During this period, the electromagnetic force compensation sensor stabilizes; operational zeroing, external calibration mass loading, or trace specimen additions should not be performed until warm-up is complete.

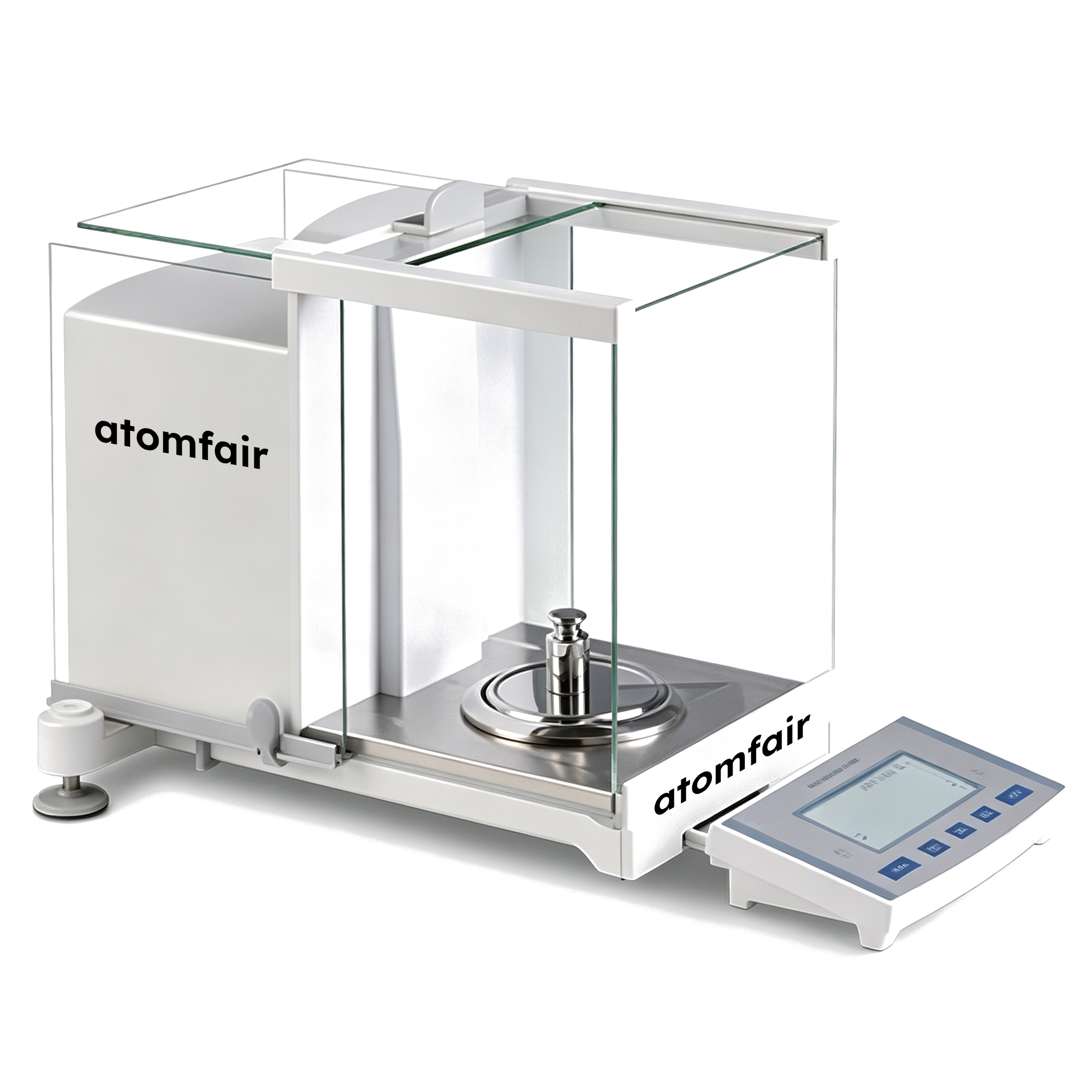

The EB82-120G-01MG-R semi-micro analytical balance offers 0.01 mg readability with a dual-range capacity of 82/120 g, utilizing an electromagnetic force compensation sensor and a split-body design to minimize vibration interference, making it suitable for high-precision powder sampling and external calibration compliance workflows.
Positive
- Dual-Range Semi-Micro Readability: Provides 0.01 mg readability within the 82 g high-precision range and extends to 120 g total capacity, enabling accurate measurement of small analytical samples while accommodating larger masses.
- Split-Body Design Vibration Isolation: The detachable display control architecture physically separates operator hand micro-vibrations from the weighing block, enhancing measurement stability and reliability during sensitive semi-micro tasks.
Trade-offs
- Mandatory Preheating Requirement: Requires a 30–60 minute warm-up after power-on to stabilize the sensor and achieve specified linearity before performing zeroing, calibration, or sample additions.
- Stringent Environmental Constraints: Operates reliably only within 18–23°C and 20–80% RH, demanding controlled laboratory conditions to maintain semi-micro resolution and avoid drift.
Every advanced material, component, equipment, and instrument in our catalog is backed by rigorous testing. We maintain strict internal quality management frameworks and align with CE conformity metrics to deliver transparent, reproducible performance data via our public open-science repository.
To request raw batch performance data, submit formal vendor registration paperwork, or execute a fast-turnaround R&D manufacturing loop, contact us at inquiry@atomfair.com.
Item is dispatched under the Atomfair Shipping & Delivery Framework (Free worldwide shipping on orders over $59 USD excl. heavy equipment). Return is governed by the Atomfair Return & Refund Policy (7-day technical return window).
