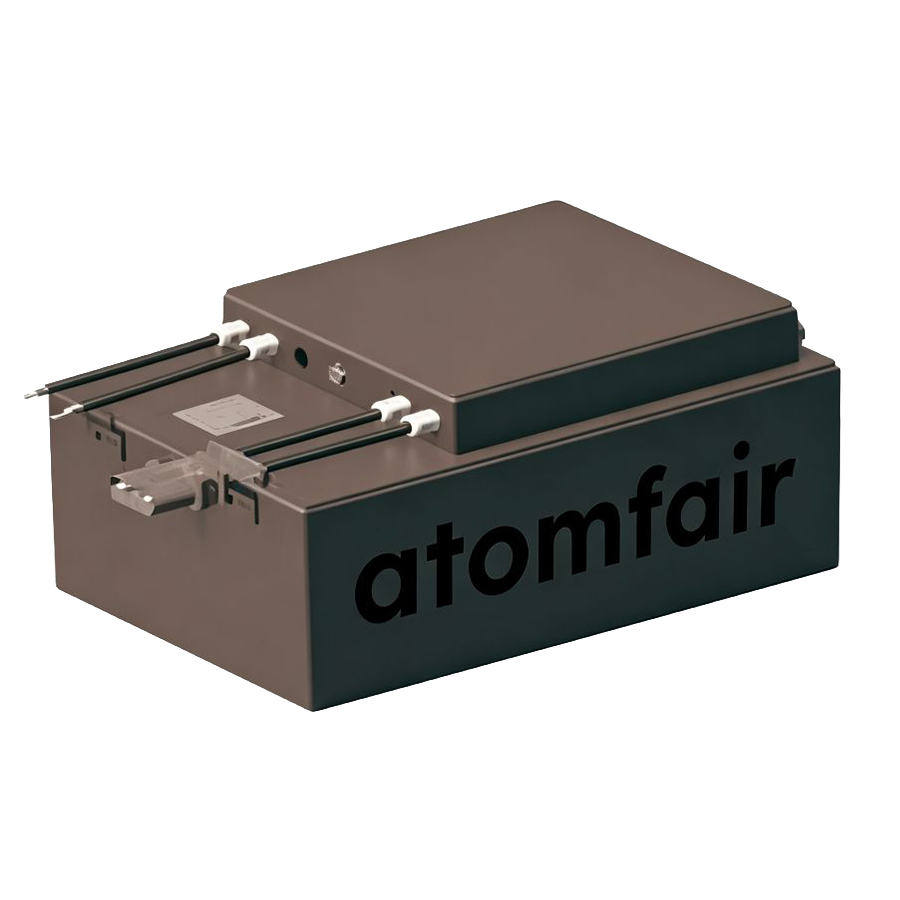

51.2V 206Ah LFP Battery System for Tow Tractors (10.5 kWh) | ATOMFAIRCOMMERCIAL GRADE PRODUCTION
|
|||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||
|
TAILORED SOLUTIONS FOR RESEARCH
Contact our engineering team for technical support or official institutional quotations.
EMAIL: inquiry@atomfair.com
|
|||||||||||||||||||||||||||||||||
|
Manufacturer: Atomfair LLC
Brand: ATOMFAIR®
|
This document outlines critical environmental storage constraints and safety limits for the LFP battery system. Compliance with these parameters is essential to prevent thermal runaway, electrical hazards, and material degradation.
- Storage temperature constraints: Store the battery within -35°C to 60°C to avoid capacity loss and internal damage.
- Moisture and dust protection: Maintain IP65 integrity by ensuring all connectors are sealed to prevent water ingress and dust contamination.
- Electrical safety limits: Operate within 40-58.4V and 5-95% SOC to prevent over-discharge or over-voltage conditions.
- Mechanical abuse prevention: Do not disassemble, deform, or short-circuit the pack to avoid short circuits and thermal runaway.
- Charging compatibility: Use only compatible LFP charging equipment to prevent incompatible charging profiles.
These steps guide the safe deployment and operation of the battery system in tow tractors. Follow each step chronologically to ensure proper handling and prevent hazards.
Required Equipment: LFP-compatible charger
- Inspect the battery pack
Inspect the battery pack for any physical damage or signs of leakage before installation. - Seal all connectors
Securely seal all connectors to maintain the IP65 protection rating. - Connect to charger
Connect the battery to a compatible LFP charger only. - Monitor initial charging
Monitor the battery for any abnormal behavior during initial charging. - Disconnect if abnormal
Disconnect the battery immediately if any abnormality is detected. - Contact service personnel
Contact qualified service personnel for disposal of end-of-life batteries.
What is the trade-off between the recommended SOC operating range and the total usable energy capacity for this 10.5 kWh LFP battery?
The recommended SOC operating range of 5% to 95% intentionally limits the usable capacity to approximately 90% of the rated 10.5 kWh, or about 9.45 kWh, to preserve cycle life and prevent damage from over-discharge or over-charge. The full voltage range of 40–58.4 V corresponds to 0–100% SOC, but operating outside the 5–95% window accelerates degradation. This trade-off is standard for LFP chemistry to balance safety, longevity, and available energy.
Can this 51.2V LFP battery system be integrated into existing tow tractor fleets that use lead-acid or other lithium chemistries, and what charging infrastructure is required?
The system uses Lithium Iron Phosphate chemistry with a rated voltage of 51.2V and a charge/discharge current of 206A, so it requires a compatible LFP charger with matching voltage and current specifications. It is not directly compatible with lead-acid chargers due to different charging profiles. The IP65 enclosure and natural cooling allow integration into most tow tractor compartments without modifying ventilation or sealing, but connectors must be securely sealed to maintain protection.
What handling and storage precautions are necessary for this IP65-rated LFP battery given its 102 kg weight and wide operating temperature range?
The battery weighs 102 ± 4 kg and requires mechanical lifting aids for safe handling. Although it operates from -35°C to 60°C, prolonged storage outside this range is not recommended; keep in a dry, clean environment. Do not disassemble, deform, short-circuit, or incinerate the pack. For storage, maintain connectors sealed to preserve IP65 protection against dust and water jets. Dispose of end-of-life batteries per local regulations.
This 51.2V 206Ah LFP battery system delivers 10.5 kWh for tow tractors with a wide -35°C to 60°C operating range and IP65 ingress protection, but requires natural cooling and careful connector sealing to maintain its rated protection level.
Positive
- Wide operating temperature range: Rated from -35°C to 60°C, this battery supports reliable operation in cold storage warehouses and outdoor logistics yards without performance degradation.
- IP65 dust and water jet protection: Complete dust-tightness and protection against water jets enable daily wash-downs and use in dusty industrial environments, reducing maintenance downtime.
Trade-offs
- Natural cooling limits high-rate cycling: The natural cooling design may restrict sustained high-current discharge or rapid charge cycles in hot environments, potentially requiring duty cycle management.
- Connector sealing critical for IP rating: Maintaining IP65 protection requires all connectors to be securely sealed; improper sealing during installation or service can compromise ingress protection.
