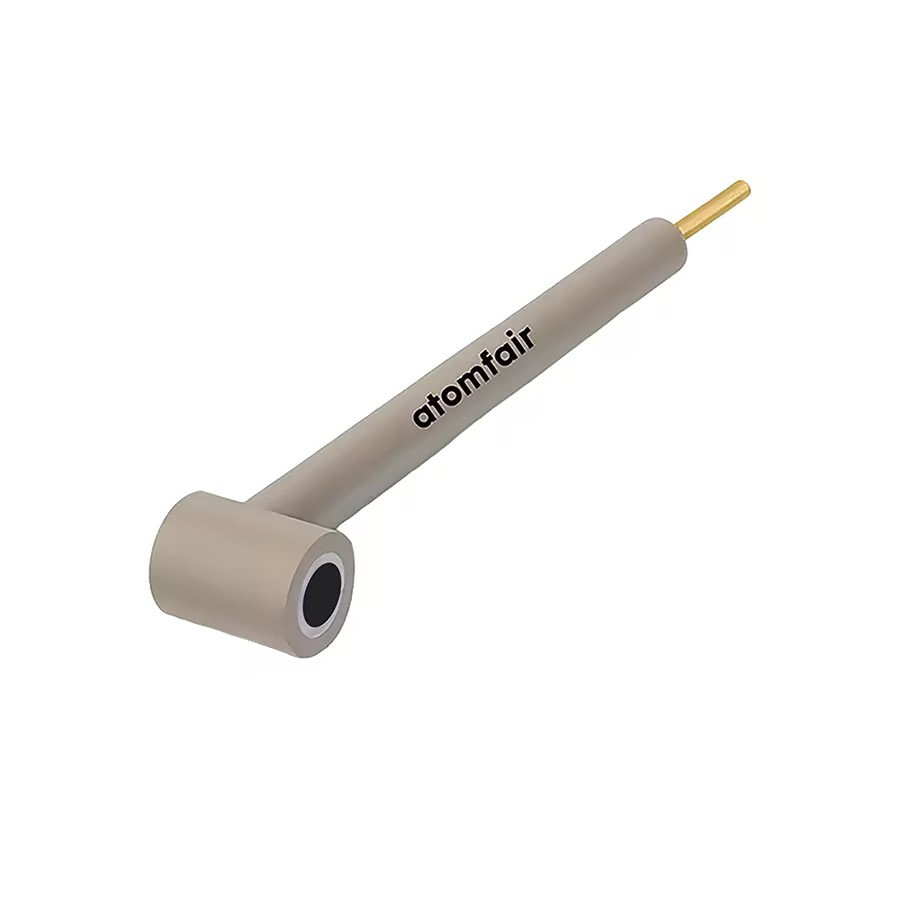

L-Shaped Carbon Paste Working Electrode 2-4mm ATOMFAIR®

L-Shaped Carbon Paste Working Electrode (Adjustable) series | ATOMFAIR

RESEARCH GRADE INSTRUMENT

Product Overview

The ATOMFAIR® L-Shaped Carbon Paste Working Electrode (Adjustable) delivers exceptional cell-to-cell consistency and eliminates baseline variability for advanced electrochemical systems. Designed for researchers requiring carbon paste-based electrode materials with flexible surface renewal capabilities and specialized L-shaped geometry, this electrode platform provides reliable performance for sensor development, biosensor applications, and a wide range of redox systems. Its L-shaped design allows for flexible positioning and seamless integration into specialized electrochemical cell configurations where standard straight electrodes may not be suitable. Featuring a 2mm to 4mm diameter carbon paste disk configuration with an adjustable design and optimized L-shaped geometry, this working electrode offers a versatile solution for electrochemical applications where renewable carbon paste electrode surfaces and flexible electrode orientation are required.

Technical Specifications

PARAMETER	DETAILS
1. Core Device & Electrochemical Design
Electrode Geometry	L-Shaped Planar Alignment Configuration
Electrode Head Length	5mm (Standard production specification)
2. Electrode Material Portfolio Parameters
Material	Carbon Paste
Diameter Options	2~4mm

Key Features & Advantages

Specialized Carbon Paste Material: Constructed from high-quality carbon paste composite, providing a wide potential window, low background current, and specific electrochemical characteristics suitable for sensor development, biosensor applications, and diverse redox systems.
Adjustable Design: Features a user-adjustable carbon paste configuration, allowing for facile surface renewal and electrode refilling, ensuring fresh electrode surfaces for each experiment and eliminating memory effects.
Optimized L-Shaped Geometry: Advanced L-shaped engineering allows for flexible positioning and lower alignment setup thresholds, promoting ideal electrical contact and compatibility with specialized cell configurations where standard straight electrodes cannot be accommodated.
Flexible Diameter Selection: Available in 2mm to 4mm diameter range, accommodating various experimental requirements and allowing researchers to select the optimal size for their specific application.

APPLICATION SCOPE: Healthcare, Environmental Monitoring, Chemical Engineering, Bio-industry, and Advanced Energy Systems.

PACKAGING: Secure individual research-grade protective containers with shock-absorption parameters.

IMPORTANT NOTICE: This product is highly sensitive to surface contamination. Keep containers tightly sealed or handle exclusively within an anhydrous inert environment to prevent phase contamination or degradation before electrochemical validation.

TAILORED SOLUTIONS FOR RESEARCH

Contact our engineering team for technical support or official institutional quotations.

EMAIL: inquiry@atomfair.com

Manufacturer: Atomfair LLC

Brand: ATOMFAIR®

The L-Shaped Carbon Paste Working Electrode is highly sensitive to surface contamination and requires anhydrous inert environment. Storage must be in tightly sealed containers and handling must be performed exclusively within an inert atmosphere to prevent degradation.

Storage Requirement: Always store the electrode in tightly sealed containers under anhydrous conditions.
Handling Environment: Perform all handling and assembly within an inert atmosphere glovebox to avoid moisture and oxygen exposure.
Surface Renewal: Renew the carbon paste surface before each electrochemical measurement to eliminate memory effects.

FAQ

What is the primary trade-off between the adjustable surface renewal capability of this L-shaped carbon paste electrode and the reproducibility achievable with prefabricated disposable electrodes?

While the adjustable design enables facile surface renewal and elimination of memory effects, the user's technique in packing and polishing the carbon paste directly influences electrode surface quality between renewals. The manufacturer explicitly warns that the product is "highly sensitive to surface contamination" and recommends handling exclusively within an anhydrous inert environment, indicating that operator-dependent factors can impact reproducibility if strict protocols are not followed.

What cell geometry constraints must be considered when integrating this L-shaped carbon paste working electrode into an existing three-electrode electrochemical setup?

The L-shaped planar alignment configuration with a 5mm head length demands a cell design that provides sufficient clearance for the horizontal electrode arm while ensuring that the carbon paste disk of 2–4mm diameter is fully immersed in the electrolyte. The source specifies that this geometry is optimized for "specialized cell configurations where standard straight electrodes cannot be accommodated," implying that conventional cylindrical cells may require adapters or custom sealing gaskets to maintain a leak-free and oxygen-free environment.

What specific storage and handling infrastructure is required to prevent contamination or degradation of this L-shaped carbon paste working electrode before use?

The product must be stored in its "secure individual research-grade protective containers with shock-absorption parameters" and kept tightly sealed at all times. The manufacturer further mandates that handling should take place "exclusively within an anhydrous inert environment" to prevent "phase contamination or degradation" prior to electrochemical validation, necessitating access to a glovebox or a gas manifold system supplying dry, oxygen-free argon or nitrogen.

Assessment

This L-shaped carbon paste working electrode provides adjustable surface renewal and flexible positioning for specialized electrochemical cells, but requires strict contamination control and inert environment handling.

Positive

Adjustable Carbon Paste Surface Renewal: The user-adjustable design allows facile carbon paste surface renewal and electrode refilling, ensuring a fresh electrode surface for each experiment and eliminating memory effects from previous runs.
Optimized L-Shaped Geometry for Specialized Cells: The L-shaped geometry enables flexible positioning and lower alignment thresholds, facilitating integration into specialized electrochemical cell configurations where standard straight electrodes cannot be accommodated.

Trade-offs

High Sensitivity to Surface Contamination: The carbon paste electrode surface is highly sensitive to contamination; storage requires tightly sealed containers or handling within an anhydrous inert environment to prevent degradation before use.
