EB82G-01MG-R-01 Analytical Semi-Micro Balance 82g ATOMFAIR®

ATOMFAIR® EB82G-01MG-R-01 ANALYTICAL & SEMI-MICRO BALANCE

EB82G-01MG-R-01 CORE SPECIFICATION PLATFORM

Product Overview

The ATOMFAIR® EB82G-01MG-R-01 is an analytical & semi-micro balance configured for High-accuracy industrial laboratory analysis, analytical chemistry, with 82 g maximum capacity and 0.01 mg readability. It delivers ±0.02 mg linearity, internal automated calibration.
Built with an electromagnetic force sensor, it supports precision weighing control for the stated measurement range. Its calibration configuration is internal automated calibration, supporting the calibration workflow for this model. The stated stabilization performance is ≤5 seconds, giving the operator a defined response-time reference before recording measurements.

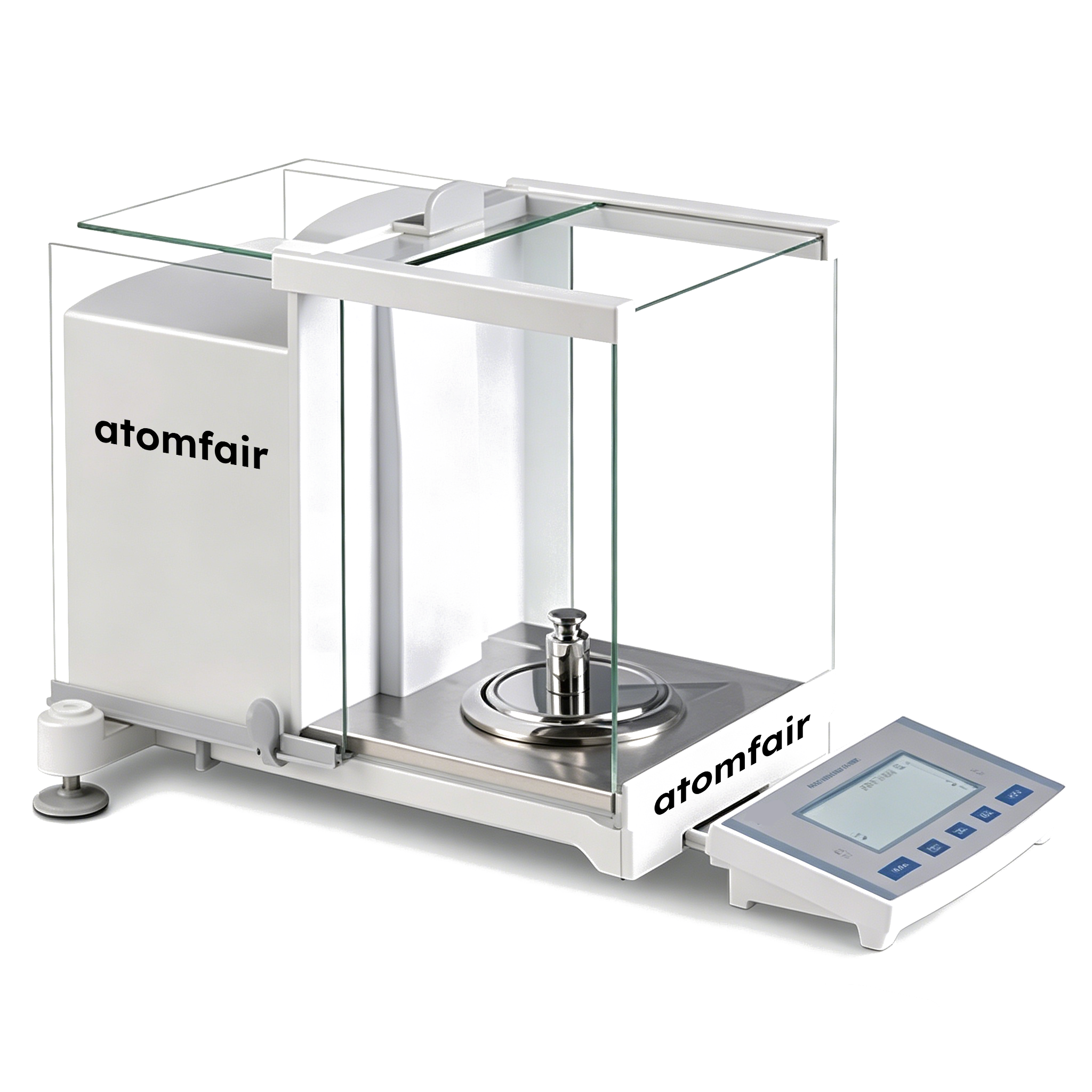

Its split-body structural architecture and glass draft shield help support stable weighing performance. The stated application scope covers High-accuracy industrial laboratory analysis, analytical chemistry, premium material research, and dual-range core verification workflows.

EB82G-01MG-R-01 Target Model Specification Matrix

PARAMETER ITEM	DETAILED MEASUREMENT PROFILE
1. Calibration & Metrology Parameters
Calibration Configuration	Internal Automated Calibration Variant (isbl Integrated System)
Readability Division Value	0.01 mg / 0.1 mg (Automated Dual Range Matrix)
Maximum Scale Capacity	82 g / 120 g (Dual-Range Fluctuating)
Standard Repeatability Deviation	±0.02 mg / ±0.1 mg
Linearity Distortion Error	±0.02 mg / ±0.1 mg
Average Stabilization Response Time	≤ 5 Seconds
Mandatory Preheating Threshold	30 ~ 60 Minutes Following Power-on Initialization

2. Geometric Metrics & Volumetric Footprint
Weighing Pan Dimensions	Φ 90 mm
Outer Structural Dimensions	410 mm × 310 mm × 320 mm
Effective Draft Shield Height	230 mm
Internal Weighing Chamber Size	195 mm × 100 mm
3. Environmental Constraints & Electrical Architecture
Operating Environmental Temperature	10°C ~ 33°C
Operating Workspace Humidity	20% ~ 80% RH
Power Subsystem Profiles	Global Matrix Compliance Interface \| Input: 220V AC / 50Hz \| Output: 12V DC / 2A

ES Series Comprehensive Portfolio Comparison Matrix

SPECIFICATION ITEM	EB31G-01MG-R-01	EB51G-01MG-R-01	EB82G-01MG-R-01	EB31G-01MG-R-02	EB51G-01MG-R-02	EB82G-01MG-R-02	EB82G-01MG-R-02
Readability Value (mg)	0.01/0.1	0.01/0.1	0.01/0.1	0.01/0.1	0.01/0.1	0.01/0.1	0.01/0.1
Max Capacity Threshold (g)	31/120	51/120	82/120	31/120	51/120	82/120	120
Repeatability Dev. (mg)	±0.02/0.1	±0.02/0.1	±0.02/0.1	±0.02/0.1	±0.02/0.1	±0.02/0.1	±0.02/0.1
Linearity Error Max (±mg)	±0.02/0.1	±0.02/0.1	±0.02/0.1	±0.02/0.1	±0.02/0.1	±0.02/0.1	±0.02/0.1
Stabilization Target (s)	≤ 5 Seconds (All Models Equipped)
Warm-up Duration Threshold	30 ~ 60 Minutes Required
Weighing Pan / Chassis	Pan: Φ 90 mm \| Outer Matrix: 410 × 310 × 320 mm \| Shield Height: 230 mm \| Chamber Size: 195 × 100 mm
Environment Requirements	Temp Threshold: 10°C ~ 33°C \| Humidity Workspace Range: 20% ~ 80% RH
Power Subsystem Profiles	Global Matrix Compliance Interface \| Input: 220V AC / 50Hz \| Output: 12V DC / 2A (All Models Shared)

Full Series Core Functional Advantages

Split-Body Structural Architecture: Detached control display unit isolates hand-induced micro-vibrations from the balance baseline chassis, allowing real-time data inspection from multiple flexible angles.
Transparent Panoramic Glass Draft Shield: Provides all-around panoramic visibility of weighing specimens with quick-release mechanics for rapid disassembly and efficient decontamination.
Rear-Mounted Electromagnetic Force Sensor: Premium-tier high-accuracy internal balance core ensures outstanding repeatability, stable readings, and fast response kinetics.
Extendable & Adjusting LED Display Panel: Features an ultra-bright layout that allows operators to seamlessly adjust the display tilt angle for zero-parallax reading verification.
Versatile Operational Weighing Modes: Supports robust native processing for standard foundational weight measurement, percentage balance determination, and precise parts tracking/piece counting workflows.
Instantaneous Multi-Unit Conversions: Enables single-key toggle transitions between international mass dimensions including grams (g), carats (ct), ounces (oz), and pounds (lb) with zero manual math.
Optimized Trace Micro-Addition Processing: Driven by advanced digital signal processing firmware, the system maintains rock-solid readouts with zero baseline drift, micro-capturing minute sample additions with high fidelity.
Integrated RS232 Communication Bus: Bidirectional port supports direct data pipelines to micro-printers and host computer terminals, enabling automated data logging and paperless compliance tracking.
Autonomous Fully Automatic isbl Calibration: Executes automated internal balancing calibration if ambient workspace temperature fluctuates by ≥1.5°C or if time elapsed exceeds 2 hours. Supports manual override.

APPLICATION SCOPE: High-accuracy industrial laboratory analysis, analytical chemistry, premium material research, and dual-range core verification workflows.

HIGH-EFFICIENCY HARNESS: Cost-effective design architectures highly optimized for analytical research institutes and institutional compliance laboratories.

IMPORTANT NOTICE: To preserve uncompromised reading precision and maintain sensor linearity, allow an initial warm-up threshold of 30-60 minutes following power engagement before performing operational zeroing, internal calibration, or sample addition.

TAILORED INDUSTRIAL LAB SOLUTIONS

Contact our elite laboratory engineering team for institutional bulk procurement quotes or interface custom integration.

EMAIL: INQUIRY@ATOMFAIR.COM

MANUFACTURER OPERATIONS: ATOMFAIR LLC INSTRUMENTS DIVISION

REGISTERED BRAND: ATOMFAIR®

This balance requires a 30- to 60-minute warm-up period after power-on before any measurement operation. It must be operated within 10°C to 33°C and 20% to 80% relative humidity to maintain specified accuracy.

Warm-up Requirement: Allow the balance to warm up for 30 to 60 minutes following power-on before performing zeroing, calibration, or sample addition.
Environmental Limits: Operate the balance within an ambient temperature of 10°C to 33°C and relative humidity of 20% to 80% to ensure linearity and repeatability.
Stabilization Time: Wait at least 5 seconds after sample placement for the reading to stabilize before recording the measurement.
Calibration Triggers: The internal automated calibration executes when ambient temperature changes by ≥1.5°C or when the time elapsed exceeds 2 hours.
Vibration Isolation: Use the split-body architecture to isolate hand-induced vibrations by placing the display unit away from the weighing base.

HowTo

Follow these steps to initialize and perform a weighing measurement. Ensure the balance is placed on a stable, vibration-free surface and is powered on with the correct voltage.

Required Equipment: ATOMFAIR EB82G-01MG-R-01 Analytical Balance

Power On and Warm Up
Power on the balance and allow it to warm up for 30 to 60 minutes.
Perform Zeroing
Perform zeroing of the balance using the zero function.
Execute Internal Calibration
Execute internal automated calibration using the calibration function to ensure accuracy.
Place Sample
Carefully place the sample on the weighing pan and close the draft shield.
Record Measurement
Wait for the stabilization indicator to appear, then record the displayed weight.

FAQ

How does the dual-range readability (0.01 mg / 0.1 mg) affect measurement accuracy at different capacities on the EB82G-01MG-R-01?

The EB82G-01MG-R-01 operates with an automated dual-range matrix: at a maximum capacity of 82 g, readability is 0.01 mg with repeatability and linearity of ±0.02 mg; at the extended capacity of 120 g, readability shifts to 0.1 mg with repeatability and linearity of ±0.1 mg. This allows high-precision measurements for smaller samples while retaining the ability to weigh larger masses with slightly reduced but still analytical-grade accuracy.

Can the EB82G-01MG-R-01 be integrated into an automated data logging system for compliance laboratories?

Yes, the balance includes an integrated RS232 communication bus that supports direct data pipelines to micro-printers and host computer terminals, enabling automated data logging and paperless compliance tracking. Additionally, its internal automated calibration (isbl) executes automatically when ambient temperature fluctuates by ≥1.5°C or when time elapsed exceeds 2 hours, ensuring metrological traceability without manual intervention.

What are the mandatory warm-up and environmental conditions required before using the EB82G-01MG-R-01 for high-accuracy measurements?

The balance requires a mandatory preheating threshold of 30–60 minutes following power-on initialization to preserve sensor linearity and reading stability. Operating environment must be maintained at 10°C–33°C temperature and 20%–80% RH humidity. The split-body structural architecture and glass draft shield further isolate hand-induced vibrations and air currents, but the warm-up period is critical before performing zeroing, internal calibration, or sample addition.
