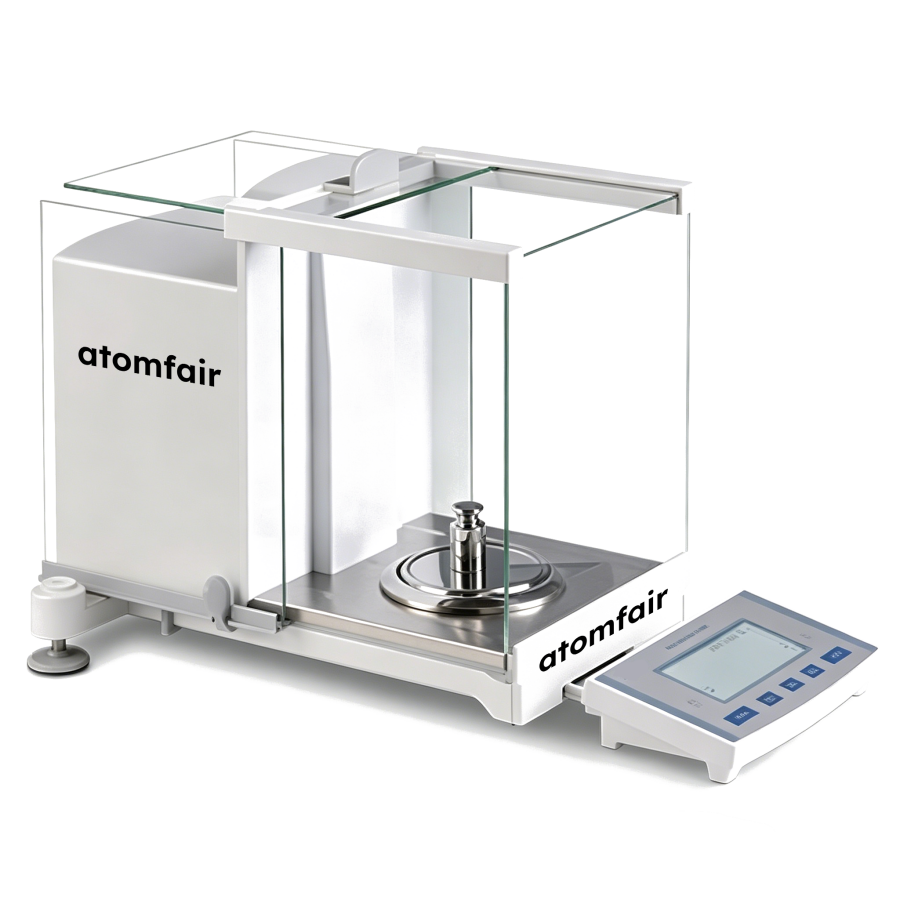

ATOMFAIR® EB51-210G-01MG-R SEMI-MICRO ANALYTICAL BALANCEEB51-210G-01MG-R CORE SPECIFICATION PLATFORM
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
TAILORED INDUSTRIAL LAB SOLUTIONS
Contact our elite laboratory engineering team for institutional bulk procurement quotes or interface custom integration.
EMAIL: INQUIRY@ATOMFAIR.COM
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
MANUFACTURER OPERATIONS: ATOMFAIR LLC INSTRUMENTS DIVISION
REGISTERED BRAND: ATOMFAIR®
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
The balance requires a controlled environment and specific pre-use procedures to maintain measurement accuracy. Failure to adhere to these constraints may compromise semi-micro resolution linearity and calibration integrity.
- Preheating Requirement: Allow the balance to warm up for 30 to 60 minutes after power-on before performing zeroing, calibration, or sample additions.
- Ambient Temperature Limit: Operational accuracy is ensured only within an ambient temperature range of 18°C to 23°C.
- Relative Humidity Limit: The workspace humidity must be maintained between 20% and 80% relative humidity to avoid measurement drift.
- Power Supply Infrastructure: The balance must be connected to a 220V AC, 50Hz power source via the provided adapter that outputs 12V DC at 2A.
- External Calibration Weight: A 10g external calibration weight is required for standard calibration procedures.
Follow this sequence to prepare the balance for accurate semi-micro measurements. Each step ensures baseline stability and traceable calibration before sample analysis.
Required Equipment: 10g external calibration weight
- Power On
Connect the power adapter to the balance and a grounded 220V AC outlet to initiate power engagement. - Warm-Up Period
Allow the balance to warm up for at least 30 minutes without any load on the pan. - Zero Adjustment
Perform a zeroing operation with the weighing pan empty to establish a baseline reading. - External Calibration
Place the 10g external calibration weight centrally on the pan to trigger the automatic calibration routine.
What is the trade-off between the 51 g and 210 g capacity ranges on the EB51-210G-01MG-R for semi-micro analytical work?
The EB51-210G-01MG-R offers a dual-range maximum capacity of 51 g and 210 g with a readability of 0.01 mg across both ranges. The trade-off is that the lower 51 g range provides optimal precision for trace mass determination, while the 210 g range accommodates larger samples but may exhibit slightly higher linearity deviation at the upper end. The source specifies a typical calibration weight of 10 g, indicating that the 51 g range is optimized for high-accuracy semi-micro measurements, whereas the 210 g range is suited for applications requiring higher capacity with the same readability.
Can the EB51-210G-01MG-R be integrated with a laboratory information management system (LIMS) or external printer?
Yes, the EB51-210G-01MG-R includes an integrated bidirectional RS232 communication bus that establishes standard hardware pipelines to micro-printers, lab host computer terminals, and third-party LIMS management systems. This allows direct data transfer and logging without manual transcription, supporting automated workflows in compliance laboratories.
What are the mandatory preheating and environmental requirements for stable operation of the EB51-210G-01MG-R?
The EB51-210G-01MG-R requires a mandatory preheating threshold of 30 to 60 minutes following power-on initialization before performing operational zeroing or external calibration mass loading. The operating environmental temperature must be maintained between 18°C and 23°C, with workspace humidity between 20% and 80% RH. Failure to meet these conditions can compromise semi-micro resolution linearity and stabilization response times.
The EB51-210G-01MG-R semi-micro analytical balance delivers 0.01 mg readability with a dual-range capacity of 51 g and 210 g, utilizing an electromagnetic force compensation sensor and external weight calibration. Its 2.5-second stabilization time and split-body design reduce vibration interference, but the instrument requires a 30–60 minute warm-up and strict environmental control (18–23°C, 20–80% RH) to maintain linearity.
Positive
- Dual-range capacity with 0.01 mg readability: The balance offers a maximum capacity of 51 g and 210 g with a readability of 0.01 mg, enabling precise measurement of trace masses across two ranges within a single instrument.
- Fast stabilization at 2.5 seconds: Baseline kinetic response stabilizes within 2.5 seconds under rigorous testing, reducing measurement cycle time for high-throughput semi-micro workflows.
Trade-offs
- Mandatory 30–60 minute warm-up: The balance requires a 30–60 minute preheating period after power-on before operational zeroing or calibration to preserve semi-micro resolution linearity.
- Narrow environmental tolerance range: Optimal performance is confined to 18–23°C and 20–80% RH; deviations beyond these limits may degrade repeatability and linearity, necessitating controlled lab conditions.
