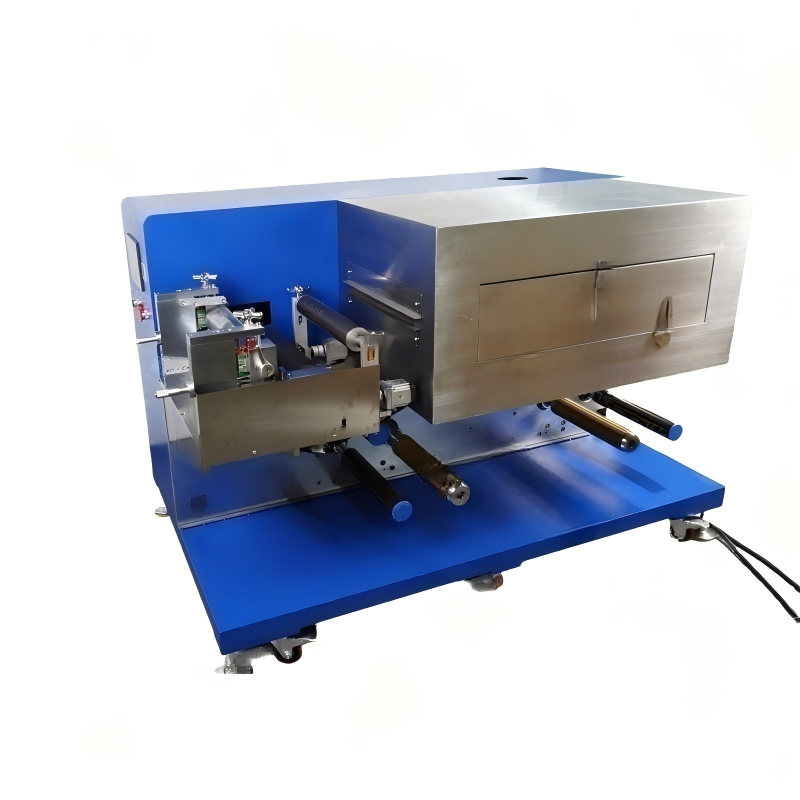

Atomfair-CEC-5729 Continuous Experimental Coater
Product Overview
This equipment is a three-roll transfer coating machine, suitable for surface coating processes of various substrates, especially for the lithium-ion battery industry. Designed for convenient scientific research operation, the equipment’s coating accuracy and consistency meet mass production-level standards, with excellent drying effect. It is an ideal choice for the R&D and pilot test of lithium-ion batteries, supercapacitors, nickel batteries and other secondary batteries.
Functional Features
- Equipped with substrate tension control system, stable tape running, and configured with deviation correction device to ensure accurate coating process.
- Adopts hot air oven with upper and lower double-sided synchronous air blowing to achieve high-quality drying effect.
- Three-roll transfer coating design with a wide coating adaptation window to meet various process requirements.
- Equipped with comma scraper metering structure, combined with precision adjustment mechanism to achieve high coating accuracy.
- Adopts PLC intelligent control and touch screen visual operation, which is convenient and easy to use.
- Optional solvent recovery and treatment device can be selected on demand to meet environmental protection and process recovery requirements.
Technical Parameters
| Item | Specification |
|---|---|
| Coating Method | Three-roll Transfer Continuous Coating |
| Guide Roller Width | 330mm |
| Coating Width | Max 300mm |
| Mechanical Speed | Max 900mm/min |
| Coating Accuracy | ±3μm (Edge Error ±5μm) |
| Coating Thickness | Determined by slurry characteristics, 40~200μm |
| Thickness Adjustment | Manual Free Adjustment |
| Winding/Unwinding Diameter | Φ250mm |
| Winding Accuracy | ±0.5mm |
| Tension Control | Max 60N (Adjustable) |
| Micrometer Display Accuracy | 1μm |
| Drying Temperature | Room Temperature ~ 120℃ (Adjustable) |
| Drying Unit | Standard Equipped with Hot Air Drying |
| Compressed Air | 0.5~0.7Mpa |
| Power Supply | AC220V/50Hz |
| Max Power | 5KW |
| Overall Dimension | L1800×W1200×H1200mm |
| Equipment Weight | Approx. 1 Ton |
