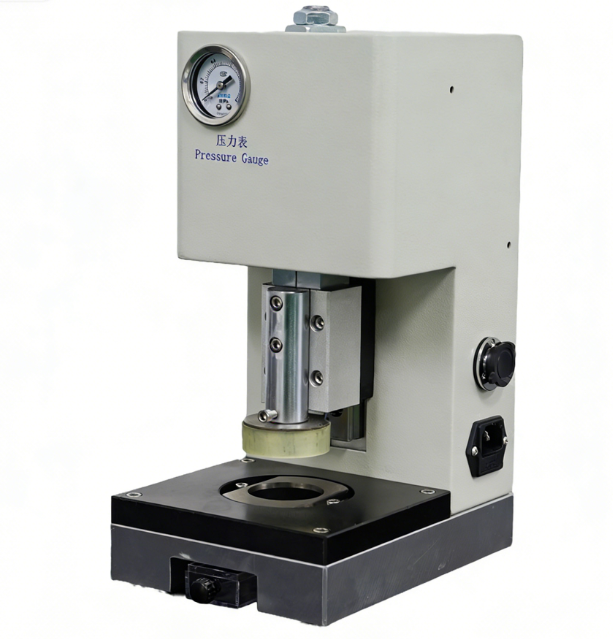

Atomfair-BP4090 Battery Sheet Precision Punching Machine
Product Overview
Atomfair-BP4090 is a patented product independently developed, specially designed for punching and blanking processes. Equipped with custom molds of various specifications, it performs punching and blanking on thin sheet materials. With a compact design and flexible operation, it is ideal for die cutting and blanking of battery positive/negative electrode sheets, separator paper and other materials with a thickness of 0.005~0.5mm.
Functional Features
- The upper punch mold is guided by high-precision slide rails, ensuring high punching precision without burrs or indentations on processed materials.
- Capable of punching various battery materials with a thickness range of 0.005~0.5mm, with strong material adaptability.
- Ultra-compact size that can pass freely through the transition chamber of a glove box with a diameter of Φ360mm, suitable for confined space operation.
- Exquisite, simple and aesthetic appearance, featuring easy cleaning and maintenance with the core advantage of compact volume.
- The body is made of corrosion-resistant aluminum alloy material, rust-proof permanently and elegant in appearance.
Technical Parameters
| Parameter Item | Specification |
|---|---|
| Punching Size | Customizable Φ3mm~Φ50mm as per customer’s request |
| Punchable Thickness | 0.005~0.5mm for all types of battery materials |
| Punching Stroke | 25mm |
| Overall Dimension | L207mm × W200mm × H330mm |
| Equipment Weight | 12KG |
