Description

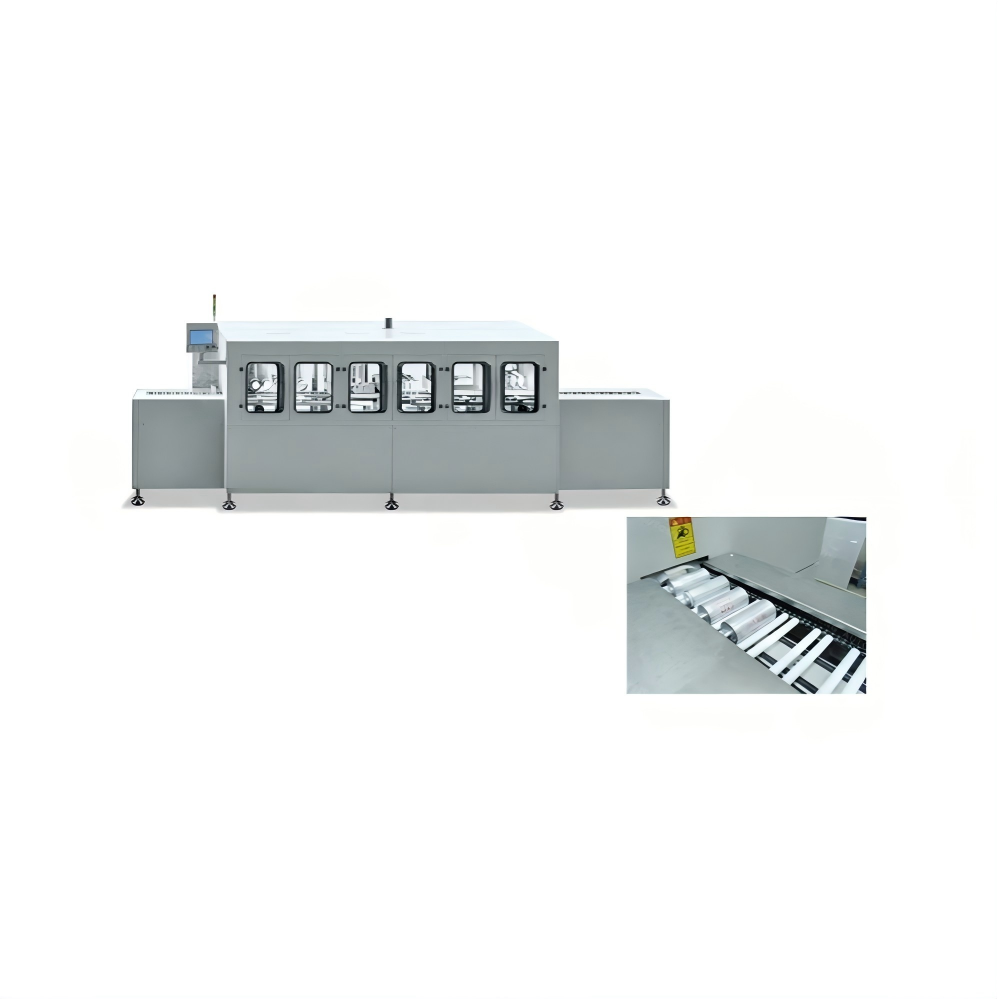

Atomfair Automatic Cleaning Machine Product Information
Product Model
Atomfair-ACL-369
Release Date
2022-03-01
Version
V2.0
Dimensions & Weight
- Dimensions: 5000 * 1700 * 2000 mm
- Weight: 2 T
Product Overview
This machine is designed for fully automatic cleaning and drying of dry batteries and supercapacitors. It realizes high-efficiency, water-saving, online continuous cleaning with stable and reliable performance.
Key Features
- Brush online scrubbing, effectively cleans the battery surface and end surfaces.
- Multiple groups of thrust air nozzles for fast water removal and good drying effect.
- Uses only clean water, no cleaning agent required.
- PLC control with fault alarm and energy-saving shutdown.
- Adjustable for products with length 50–180 mm, easy adjustment.
- Suitable for large-capacity automatic online cleaning and drying.
- High-efficiency hot-air heater with low energy consumption.
- Overflow, filtration and circulating water system for energy saving.
Technical Specifications
- Application: Cylindrical batteries, supercapacitors (customizable on request)
- Speed: 0.5–1 m/min, adjustable
- Output: >6 PCS
- Power Supply: 380V ±10%, 50Hz, 3-phase 5-wire
- Cleaning Workpiece: 60mm diameter batteries & capacitors
- Total Power: Approx. 55 KW
- Compressed Air: 0.4 Mpa
- Noise: ≤85 dB (test at 1.5m)
- Dimensions: 5000*1700*2000 mm
- Weight: Approx. 2 T
- Environment: 5–35℃, humidity ≤80%
If you’re interested, have any questions, or have specific customization requirements, please feel free to contact us at inquiry@atomfair.com.
