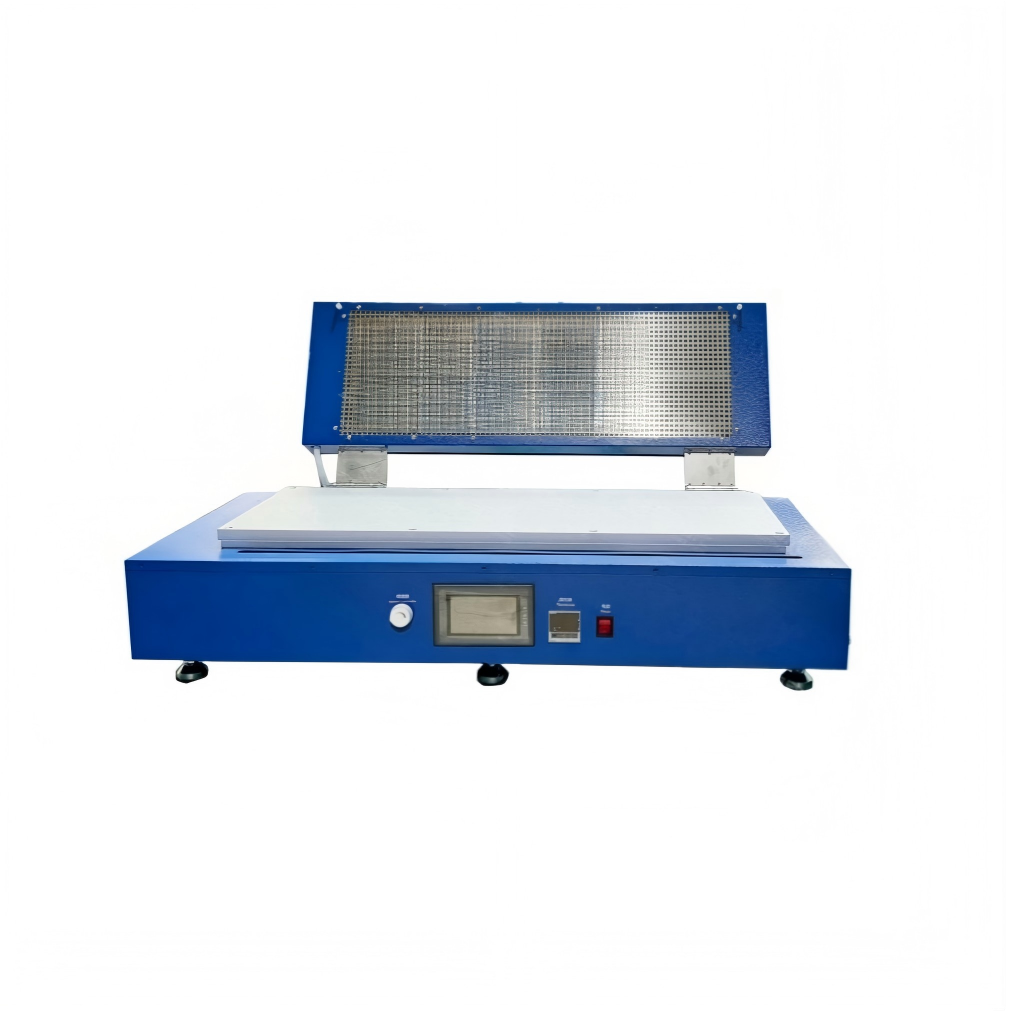

Atomfair-ACDU-7319 Automatic Coating Dryer
Product Overview
This equipment is widely used in various high-temperature coating research fields, suitable for the coating and drying of ceramic films, crystal films, 18650 battery material films and special nano-films. It can meet the technological development needs of future high-temperature film-forming processes with strong adaptability.
Functional Features
- Coating speed can be freely adjusted within the range of 0-100mm/s to meet the speed requirements of different coating processes.
- Equipped with a digital display temperature-controlled drying system, with intuitive and accurate temperature control, and the maximum working temperature can reach 150℃.
- The stroke can be flexibly adjusted between 10~800mm through the travel switch, suitable for coating substrates of different sizes.
- Equipped with a vacuum aluminum flat plate for quick placement and removal of substrates with convenient operation; equipped with an adjustable coater to meet diverse coating needs.
Technical Parameters
| Item | Specification |
|---|---|
| Coating Speed | 0-100mm/s |
| Maximum Stroke | 800mm |
| Vacuum Plate | With vacuum aluminum flat plate |
| Vacuum Plate Size | 865mm(L)×200mm(W)×30mm(H) |
| Scraper Adjustable Range | 0.01-3.5mm |
| Heating and Drying System | Room temperature ~ 150℃, digital display temperature controller, accuracy ±1℃ |
| Power Supply | 220V/50HZ |
| Weight | 100KG |
| Overall Dimension | 900mm(L)×310mm(W)×930mm(H) |
If you’re interested, have any questions, or have specific customization requirements, please feel free to contact us at inquiry@atomfair.com.
