The useful feature of this LCO-S01 result is not the capacity number by itself. It is the combination of a dry-electrode format, 29.5 mg/cm2 cathode loading, a 2.5-4.4 V window, and 95.53% reported first-cycle efficiency in a lithium-metal 2320 coin cell. Together, those details make the chart a process-and-voltage screening baseline: it asks whether a high-loading LCO cathode can still deliver a recognizable charge-discharge response before researchers spend time on full-cell balancing and format scale-up.
Start with the Test Boundary
This is a lithium-metal half-cell dataset, so lithium inventory is supplied by the counter electrode. That is useful for isolating the LCO cathode, but it also changes the meaning of the result. A half cell can show whether the cathode is electrochemically accessible under the stated window; it cannot by itself tell us whether a graphite or silicon-carbon full cell will have enough lithium inventory, the right N/P ratio, or acceptable formation loss.
| Parameter | Reported condition or result |
|---|---|
| Sample | LCO-S01 lithium cobalt oxide cathode |
| Electrode process | Dry electrode |
| Cell format | 2320 coin cell, lithium-metal half cell |
| Counter electrode | Lithium metal |
| Electrolyte | Carbonate-based electrolyte |
| Cathode loading | 29.5 mg/cm2 |
| Voltage range | 2.5-4.4 V |
| Charge / discharge rate | 0.1C / 0.1C |
| Test temperature | 25 +/- 1 C |
| Reported specific capacity | 180.94 mAh/g |
| Reported first-cycle efficiency | 95.53% |
What the Curve Says About High-Voltage LCO

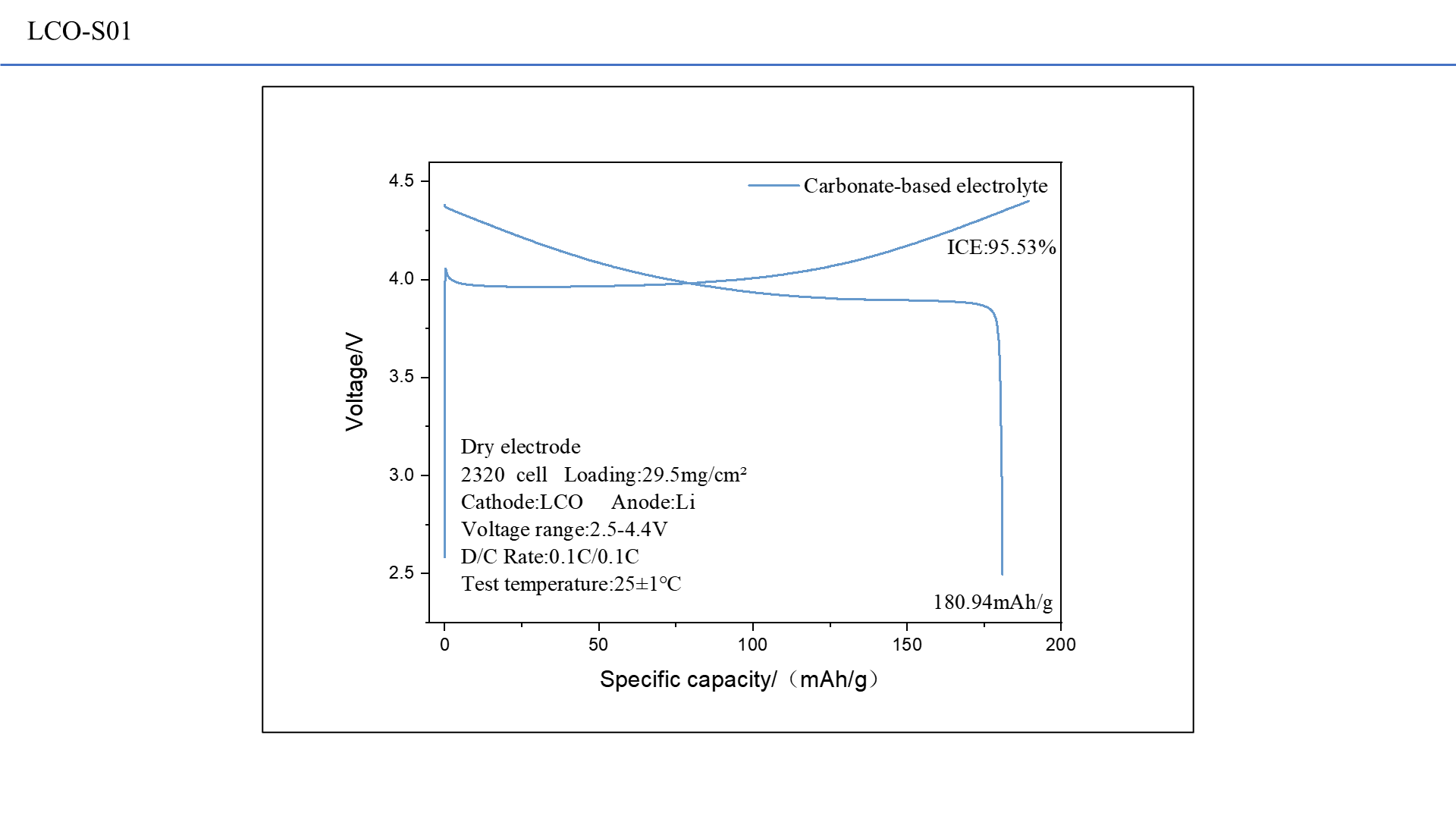

The source figure shows the characteristic high-voltage LCO region being accessed between 2.5 V and 4.4 V. The charge trace rises toward the upper cut-off, while the discharge trace returns through a broad high-voltage region before reaching the lower limit. The reported 180.94 mAh/g is therefore best understood alongside the voltage window: the material is being evaluated under a deliberately wide operating range rather than a conservative low-voltage screen.
The 95.53% first-cycle efficiency is also important. It indicates that the first charge and discharge are relatively close in the supplied curve, but it does not remove the need to check formation loss across replicate cells. At an upper cut-off of 4.4 V, electrolyte oxidation, surface reconstruction, particle cracking, and interfacial impedance can become more important than they appear in a single first-cycle plot. Those mechanisms should be separated through repeat testing and post-cycle characterization rather than inferred from the chart alone.
Figure Reading: The Loading Is the Real Engineering Variable
At 29.5 mg/cm2, the electrode is thick enough that the result should be read as a coating and transport question, not only as a powder property. The estimated gravimetric result corresponds to about 5.34 mAh/cm2 if the stated loading is active-material loading. That conversion is useful for early cell-balancing work, but it must be checked against the actual solids fraction, coating-side definition, and whether the reported loading includes conductive additive or binder.
This is where the dry-electrode label becomes meaningful. A dry process can change pore structure, adhesion, compression behavior, and electrolyte wetting compared with a conventional slurry route. The current figure supports the claim that LCO-S01 produced a measurable high-voltage half-cell response under the stated condition. It does not support a general claim that every dry LCO electrode will show the same capacity at the same loading.
Four Comparisons to Make Before Choosing the Next Run
| Question | Why it matters for LCO screening |
|---|---|
| Can the high-voltage region be accessed reproducibly? | The 4.4 V upper cut-off makes voltage control, electrolyte stability, and repeat-cell consistency part of the result. |
| Does high loading preserve accessible capacity? | 29.5 mg/cm2 moves the discussion beyond powder-level screening toward coating wetting, thickness, transport, and density effects. |
| How much lithium is lost in formation? | The reported 95.53% first-cycle efficiency provides a better starting point for full-cell inventory planning than capacity alone. |
| Is this already a commercial cell result? | No. The chart is a lithium-metal half-cell baseline and does not establish rate performance, retention, safety, or full-cell energy. |
For a controlled follow-up, compare LCO-S01 against another lithium-ion cathode electrode sheet with the same active-material loading basis, collector, electrode area, electrolyte volume, rest time, and voltage limits. This keeps the chemistry comparison separate from the electrode-format comparison. If the goal is specifically to reproduce the dry architecture, a customized electrode-sheet request should state the coating side, loading basis, current collector, target thickness, and intended cell format rather than only naming LCO.
What This Dataset Supports – and What It Does Not
Supported by the supplied chart: LCO-S01 dry-electrode screening at 29.5 mg/cm2; a reported 180.94 mAh/g specific capacity; a reported 95.53% first-cycle efficiency; and a high-voltage half-cell response under 2.5-4.4 V, 0.1C/0.1C, and 25 +/- 1 C.
Not established by the supplied chart: long-term retention, rate capability, impedance growth, thermal stability, gas generation, electrode density, cell-to-cell reproducibility, full-cell energy density, or the suitability of the dry electrode for commercial-scale coating. Keeping that boundary visible is important for a useful Google-facing research article: the page gives readers a real interpretation and a next test plan without turning one curve into an unsupported product claim.
Next Validation Path: From Coin Cell to Paired Electrode
The next experiment should repeat the LCO-S01 condition across multiple cells, then add rate capability, extended cycling, impedance tracking, and post-formation inspection. Use battery test equipment and instruments that can hold the same 4.4 V upper cut-off, current profile, rest steps, and data-export rules across the comparison set. The Battery Research hub provides the broader path from material screening to electrode preparation, cell assembly, and validation reporting.
Once the cathode-side data are repeatable, the full-cell design should pair the measured LCO areal capacity with a measured anode rather than a nominal catalog value. A lithium-ion dry pouch-cell platform can be considered later, but only after the cathode loading, anode capacity, N/P target, electrolyte amount, separator, pressure, and formation protocol are defined together. The present LCO-S01 curve is a sensible screening starting point, not evidence that pouch-cell performance has already been demonstrated.
Publication Boundary
This article interprets the supplied LCO-S01 dry-electrode half-cell figure. It may state the reported capacity, loading, voltage window, rate, temperature, electrolyte description, and first-cycle efficiency. It should not claim cycle-life, safety, commercial energy density, or universal dry-process capability without additional evidence. Researchers requesting a comparable LCO electrode or full-cell test should specify the loading basis, coating process, current collector, anode chemistry, N/P target, electrolyte, and validation objective before contacting ATOMFAIR.
