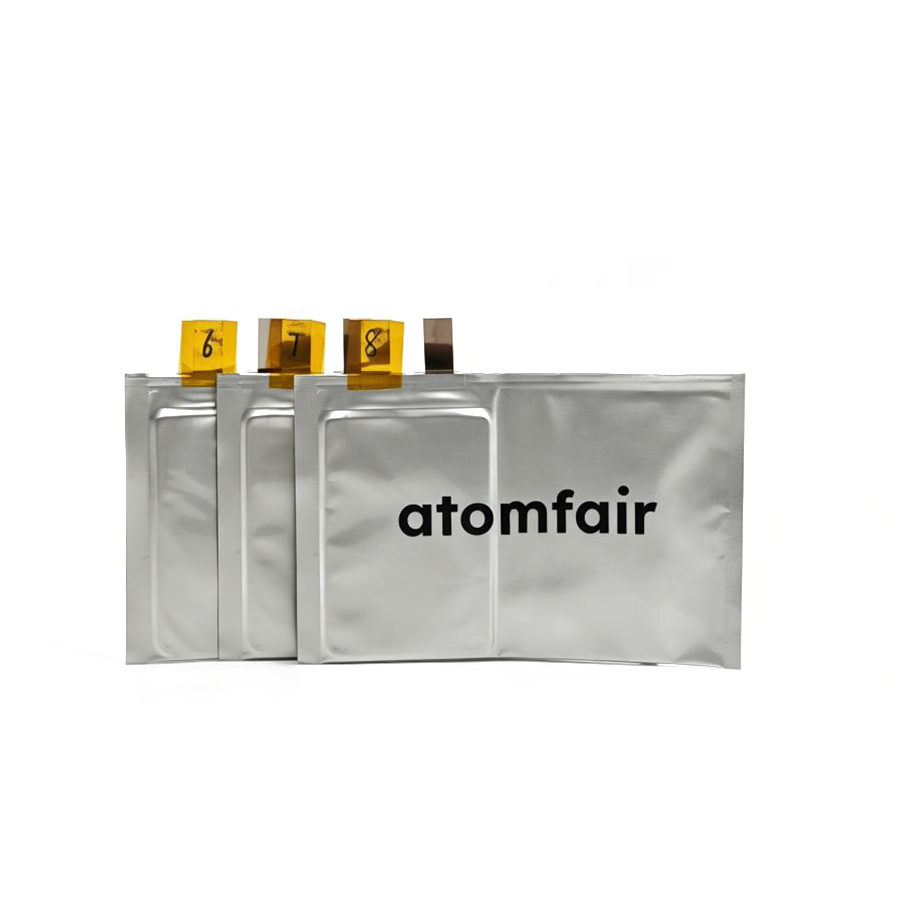

ATOMFAIR® 1AH NCM523 ANODE-FREE COATED CARBON COPPER FOIL DRY POUCH CELLLITHIUM-ION BATTERY | RESEARCH GRADE MATERIAL
|
|||||||||||||||||||||||||
|
|||||||||||||||||||||||||
|
TAILORED SOLUTIONS FOR RESEARCH
Contact our engineering team for support or quotations.
EMAIL: inquiry@atomfair.com
|
|||||||||||||||||||||||||
|
Manufacturer: Atomfair LLC
Brand: ATOMFAIR®
|
|||||||||||||||||||||||||
This dry pouch cell contains no electrolyte and must be filled in an inert atmosphere before use. The NCM523 cathode and carbon-coated copper foil anode are sensitive to moisture and short circuits.
- Moisture Sensitivity: Exposure to ambient air may degrade the dry electrode materials.
- Short Circuit Prevention: The exposed electrode tabs must be insulated to prevent electrical shorting.
- Electrolyte Compatibility: Only use electrolyte formulations compatible with NCM523 and carbon-coated copper.
- Storage Conditions: Store in a dry, inert atmosphere at room temperature.
Fill the dry pouch cell with electrolyte inside an inert atmosphere glovebox. Seal the cell immediately after filling to maintain an airtight environment.
Required Equipment: Inert Atmosphere Glovebox, Heat Sealer, Syringe or Pipette
- Inspect Pouch Cell
Inspect the dry pouch cell for any tears or punctures in the pouch material. - Fill with Electrolyte
Fill the cell with the specified amount of electrolyte using a syringe or pipette inside an inert atmosphere glovebox. - Seal the Pouch
Seal the pouch cell using a heat sealer to ensure hermetic closure.
How does the coated carbon layer on the copper foil improve the charge/discharge rate capability of this anode-free pouch cell compared to bare copper foil?
The coated carbon composition enhances electrical conductivity at the anode current collector interface, directly improving charge and discharge rates. According to the product specifications, this design supports higher rate performance by reducing interfacial resistance, enabling more efficient lithium plating and stripping.
What electrolyte formulations are compatible with this 1Ah NCM523 anode-free dry pouch cell?
The dry core design allows maximum flexibility for electrolyte customization, with no pre-filled electrolyte. Researchers can select standard carbonate-based electrolytes (e.g., LiPF6 in EC/DMC) or advanced formulations tailored for anode-free cells, such as those containing FEC or LiFSI additives, to optimize performance. The coated carbon copper foil is compatible with a wide range of lithium-ion electrolytes.
What precautions should be taken when storing and handling this anode-free dry pouch cell before electrolyte filling?
Store the dry pouch cell in an inert atmosphere (argon or nitrogen) at room temperature to prevent moisture absorption by the cathode and coated anode surface. Handle with clean, lint-free gloves to avoid contamination of the coated carbon layer, and avoid mechanical stress or bending to protect the electrode alignment and copper foil integrity.
The Atomfair 1Ah anode-free NCM523 dry pouch cell offers high energy density and coated carbon copper foil for enhanced conductivity, making it suitable for advanced battery R&D. However, it requires separate electrolyte procurement and any parameter customization necessitates pre-order coordination with the manufacturer.
Positive
- High Energy Density for R&D: Combines NCM523 cathode with coated carbon copper foil to provide exceptional energy storage for high-performance battery research applications.
- Flexible Electrolyte Customization: Delivered as a dry core without electrolyte, enabling researchers to select and introduce their own electrolyte formulations for tailored performance studies.
Trade-offs
- Electrolyte Not Included: The cell is shipped as a dry core, requiring the user to source and fill electrolyte separately, adding to preparation time and material compatibility considerations.
- Requires Custom Order for Modifications: Shipped with default parameters; any deviations from standard specifications must be coordinated with the manufacturer before ordering, limiting immediate flexibility.
