Description

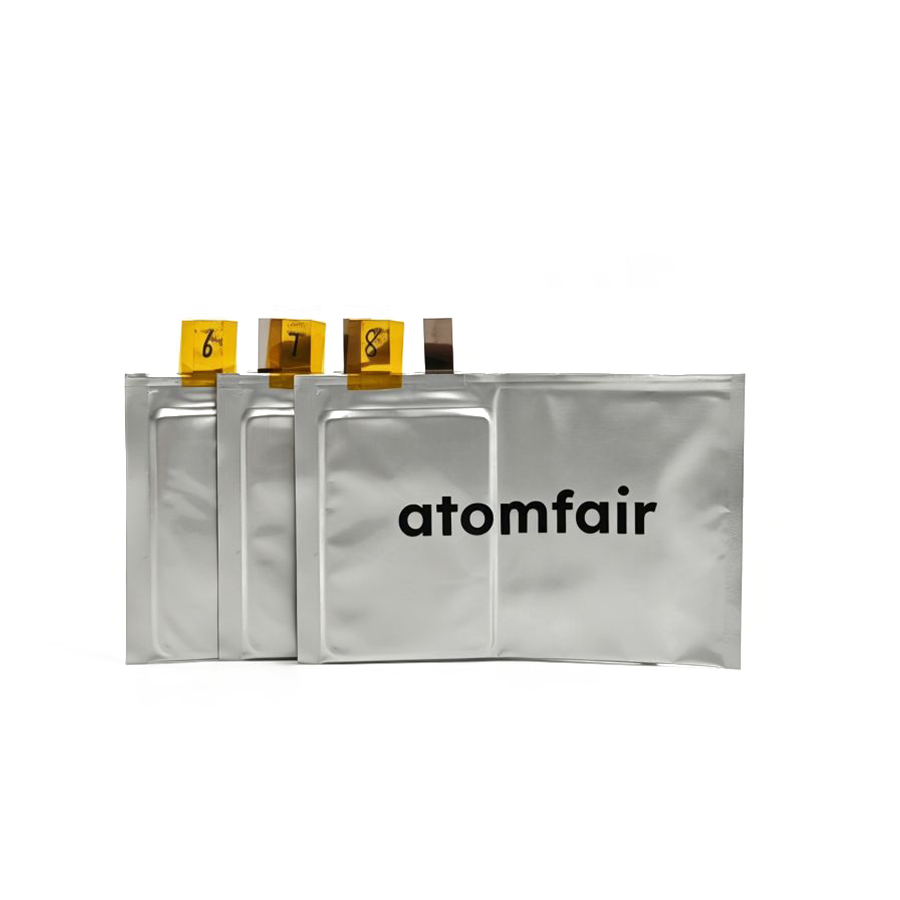

ATOMFAIR® 1AH NCM523 || SI/C DRY POUCH CELL LITHIUM ION BATTERYRESEARCH GRADE MATERIAL
|
|||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||
|
TAILORED SOLUTIONS FOR RESEARCH
Contact our engineering team for technical support or official institutional quotations.
EMAIL: INQUIRY@ATOMFAIR.COM
|
|||||||||||||||||||||||||||||||
|
Manufacturer: Atomfair LLC
Brand: ATOMFAIR®
|
|||||||||||||||||||||||||||||||
This dry pouch cell contains no electrolyte and requires filling before activation. The cell must be stored in a controlled, inert atmosphere to prevent moisture and oxygen exposure to electrode materials.
- Electrolyte Requirement: The cell is supplied as a dry core and must be filled with a compatible electrolyte before electrochemical use.
- Post-Filling Sealing: Sealing the pouch after electrolyte filling is required to prevent leakage and maintain internal cell environment.
This procedure outlines the safe initialization of the dry pouch cell with electrolyte. Follow these steps in a controlled environment to ensure proper handling and performance.
Required Equipment: Argon-filled glovebox
- Inspect and Transfer
Inspect the dry pouch cell for visible damage, then transfer it into an argon-filled glovebox with moisture and oxygen levels below 0.1 ppm. - Fill with Electrolyte
Fill the cell with a compatible electrolyte solution using a pipette, ensuring complete wetting of the electrodes. - Seal the Pouch
Seal the pouch cell under vacuum using a heat sealer to achieve a hermetic closure.
How does the default NP ratio affect the performance trade-off between capacity and cycle life in the NCM523-Si/C dry pouch cell?
The default NP ratio (negative-to-positive capacity ratio) is designed for balanced electrochemical performance in research-grade testing. Customization can be requested through support to prioritize either higher energy density or extended cycle life, as default parameters apply to areal density, load capacity, and NP ratio.
What are the exact electrode dimensions of the 1Ah NCM523-Si/C dry pouch cell and how do they influence integration into standard test fixtures?
The positive electrode (NCM523) measures 60 x 80 mm and the negative electrode (Si/C) measures 63 x 84 mm, both subject to actual size. These dimensions require compatible pouch cell holders, spacers, or jigs to ensure proper alignment and pressure distribution during testing or stacking.
What storage and handling requirements are necessary to preserve the dry pouch cell's integrity before electrolyte filling?
Store the dry pouch cell in a cool, dry environment as stated in the packaging instructions. Because the cell is a dry core with no electrolyte, it does not require inert atmosphere storage, but it must be handled carefully to avoid puncturing the pouch or damaging the electrode stack.
The 1Ah NCM523-Si/C dry pouch cell offers a customizable platform for battery R&D with high energy density, but requires electrolyte integration and attention to default electrode parameters for optimal performance.
Positive
- High energy density NCM523-Si/C: Exceptional storage capabilities via NCM523-Silicon Carbon formulation, with enhanced silicon carbon negative electrode providing improved conductivity and higher charge/discharge rates.
- Fully customizable dry cell: Zero electrolyte filling allows full customization of electrolyte chemistry, loading, and additives, enabling tailored experimental conditions for advanced battery research.
Trade-offs
- Electrolyte filling required: Supplied as a dry core without electrolyte; the user must source, fill, and seal the cell, which requires specialized equipment and expertise in electrolyte handling.
- Default electrode parameters apply: Default design parameters for areal density, load capacity, and NP ratio are used unless customized via pre-order; off-the-shelf cells may not match specific experimental requirements.
