Platinum Wire Counter Electrode With Salt Bridge

Platinum Wire Counter Electrode With Salt Bridge

$277.00

Institutional Procurement & Supply Compliance: As a verified US supplier, Atomfair accepts formal institutional Purchase Orders (POs), contract billing schedules, and custom procurement loops for university and national laboratories, and corporate R&D departments globally.

Platinum wire counter electrode with integrated salt bridge for isolating counter-electrode byproducts in rotating ring-disk electrode systems.

SKU: AF-EC-E-PTSB-D050-L230
Category:
Brands:

Platinum wire counter electrode with salt bridge | ATOMFAIR

RESEARCH GRADE INSTRUMENT

Product Overview

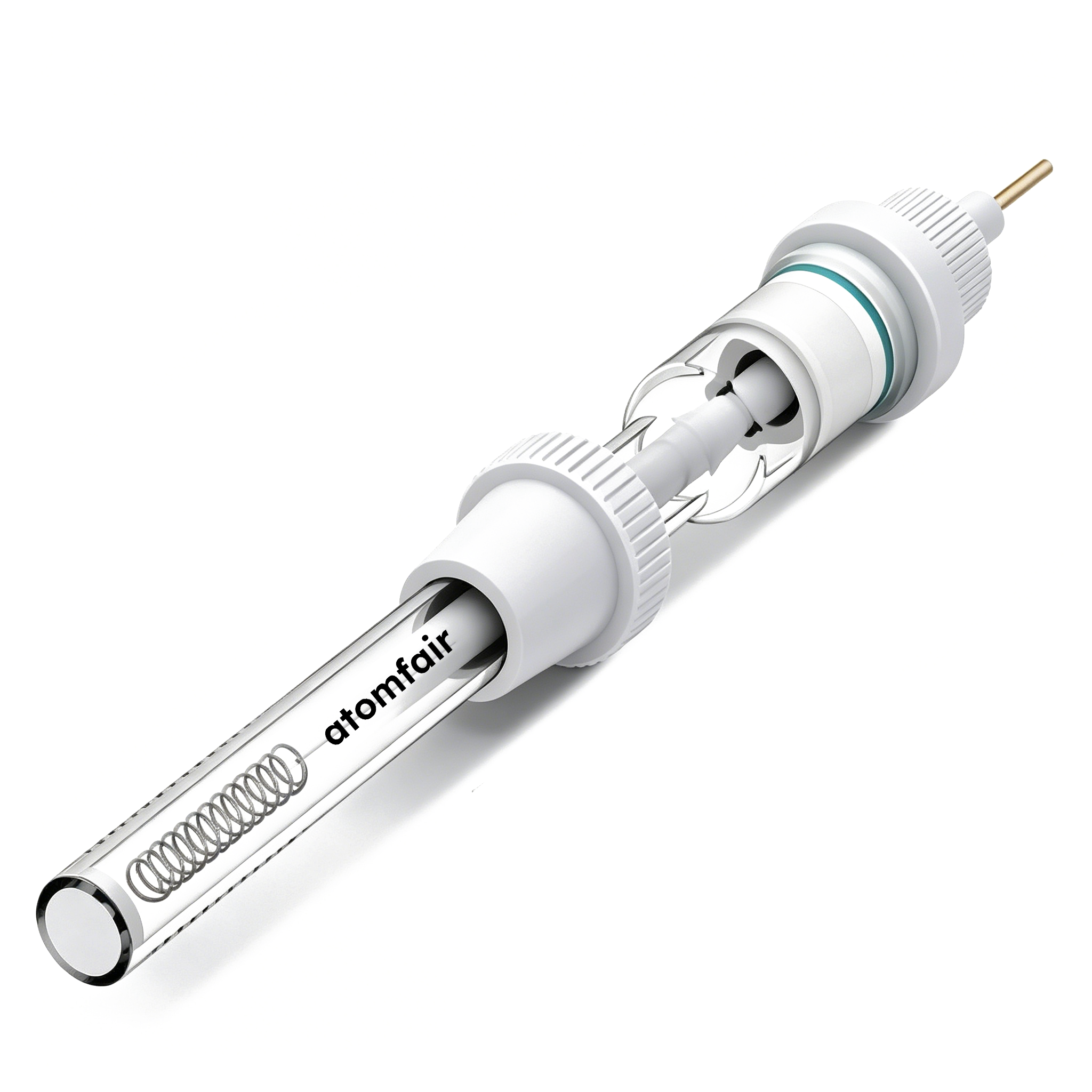

The ATOMFAIR® Platinum Wire Counter Electrode with Salt Bridge is specifically designed for use with rotating ring-disk electrode systems. The electrode features a high-purity imported platinum wire (99.99% purity) formed into a coiled spring configuration with a wire diameter of 0.5mm, total length of 230mm, and a front-end spring diameter of 4mm, providing large specific surface area. The integrated salt bridge effectively prevents counter electrode precipitates or byproducts from migrating to and interfering with the working electrode during electrochemical experiments.

Technical Specifications

PARAMETER DETAILS
1. Core Device & Electrochemical Design
Electrode Geometry Cylindrical configuration
Salt Bridge Integrated design to isolate counter electrode byproducts
Compatible Systems Specifically designed for rotating ring-disk electrode systems
2. Electrode Material Portfolio Parameters
Material Coiled platinum wire
Purity 99.99%
Dimensions 0.5*230mm/4mm[Front-End Spring Diameter] (Available for other dimensions upon special request)


Key Features & Advantages
  • Integrated Salt Bridge Protection: Effectively isolates counter electrode reaction products and precipitates, preventing contamination or interference at the working electrode surface.
  • Large Specific Surface Area: Spring coil configuration (0.5mm x 230mm, 4mm spring diameter) provides significantly enhanced active surface area for improved current capacity.
  • Rotating Ring-Disk Electrode Compatibility: Specifically engineered to pair seamlessly with rotating disk electrode systems for hydrodynamic voltammetry applications.
  • High-Purity Imported Platinum: 99.99% purity ensures exceptional electrochemical cleanliness and highly reproducible experimental results.

APPLICATION SCOPE: Healthcare, Environmental Monitoring, Chemical Engineering, Bio-industry, and Advanced Energy Systems.
PACKAGING: Secure individual research-grade protective containers with shock-absorption parameters.
IMPORTANT NOTICE: This product is highly sensitive to surface contamination. Keep containers tightly sealed or handle exclusively within an anhydrous inert environment to prevent phase contamination or degradation before electrochemical validation.
TAILORED SOLUTIONS FOR RESEARCH
Contact our engineering team for technical support or official institutional quotations.
EMAIL: inquiry@atomfair.com
Manufacturer: Atomfair LLC
Brand: ATOMFAIR®
Manufacturer: Atomfair LLC
Brand: ATOMFAIR®

Every advanced material, component, equipment, and instrument in our catalog is backed by rigorous testing. We maintain strict internal quality management frameworks and align with CE conformity metrics to deliver transparent, reproducible performance data via our public open-science repository.

To request raw batch performance data, submit formal vendor registration paperwork, or execute a fast-turnaround R&D manufacturing loop, contact us at inquiry@atomfair.com.

Item is dispatched under the Atomfair Shipping & Delivery Framework (Free worldwide shipping on orders over $59 USD excl. heavy equipment). Return is governed by the Atomfair Return & Refund Policy (7-day technical return window).
