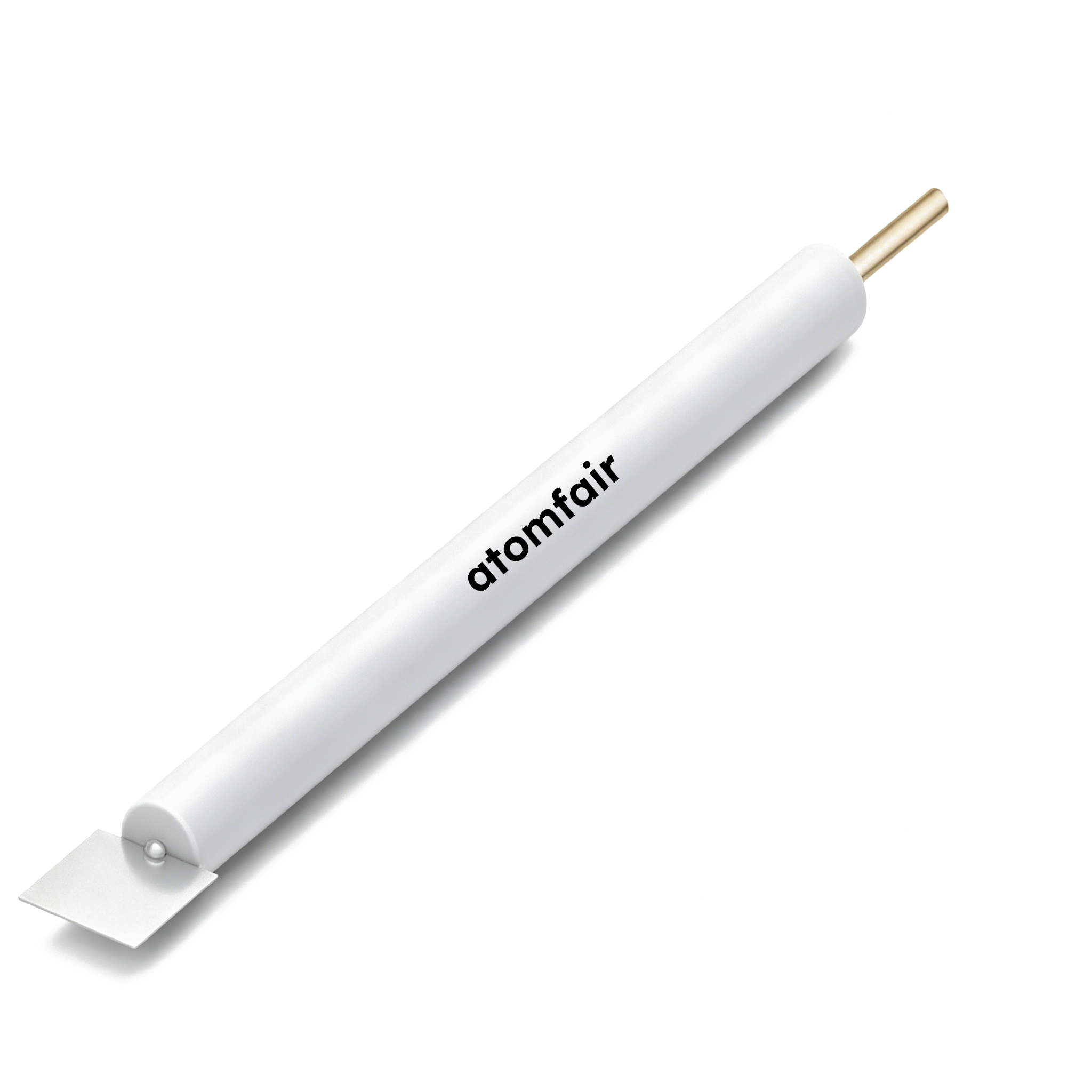

Platinum Sheet Counter Electrode – Thickness 0.3 mm

Name: Platinum Sheet Counter Electrode - Thickness 0.3 mm - ATOMFAIR
Brand: Atomfair®
SKU: AF-EC-E-PTST-T030-PARENT
Availability: InStock

Institutional Procurement & Supply Compliance: As a verified US supplier, Atomfair accepts formal institutional Purchase Orders (POs), contract billing schedules, and custom procurement loops for university and national laboratories, and corporate R&D departments globally.

Platinum sheet counter electrode with 0.3 mm sheet thickness and selectable plate sizes for electrochemical cell configurations.

Specification

Clear

SKU: AF-EC-E-PTST-T030-PARENT

Category: Electrodes & Sensor Probes

Brands: Atomfair®

Description
Additional information

Platinum sheet counter electrode series – thickness 0.3 mm | ATOMFAIR

RESEARCH GRADE INSTRUMENT

Product Overview

The ATOMFAIR® Platinum Sheet Counter Electrode is designed to provide a large, stable surface area for efficient current distribution in two-electrode and three-electrode systems. The high-purity platinum construction (99.99%) ensures minimal contamination and excellent electrochemical performance across a wide range of electrolyte conditions. The sheet geometry offers superior mechanical stability compared to wire or mesh designs while maintaining generous active surface area. The electrode is encased in a chemically inert PTFE jacket that protects the electrical connection and defines the working region. With rectangular dimensions ranging from 5x5mm to 30x30mm, this counter electrode can be matched to virtually any cell configuration or working electrode size. Custom dimensions are also available for specialized experimental setups.

Technical Specifications

PARAMETER	DETAILS
1. Core Device & Electrochemical Design
Electrode Geometry	Cylindrical or L-shaped configuration
Insulative Jacket Material	PTFE
Standard Rod Lengths	60mm, 80mm, 100mm (can be customized)
2. Electrode Material Portfolio Parameters
Material	Platinum sheet
Purity	99.99%
Platinum Sheet Thickness	0.3mm
Platinum Sheet Dimensions	5×5, 5×10, 10×10, 10×15, 10×20, 10×30, 15×15, 20×20, 30×30 (mm)

Key Features & Advantages

Large Geometric Surface Area: Sheet configuration provides substantial active area, enabling high current capacity and stable performance over extended experiments.
High-Purity Platinum: 99.99% platinum sheet ensures minimal contamination and highly reproducible electrochemical behavior across experiments.
Wide Range of Surface Areas: Extensive selection of sheet dimensions from 5x5mm to 30x30mm allows precise matching of counter electrode area to working electrode requirements.

APPLICATION SCOPE: Healthcare, Environmental Monitoring, Chemical Engineering, Bio-industry, and Advanced Energy Systems.

PACKAGING: Secure individual research-grade protective containers with shock-absorption parameters.

IMPORTANT NOTICE: This product is highly sensitive to surface contamination. Keep containers tightly sealed or handle exclusively within an anhydrous inert environment to prevent phase contamination or degradation before electrochemical validation.
