Platinum Column Counter Electrode

Platinum Column Counter Electrode

Price range: $72.00 through $102.00

Institutional Procurement & Supply Compliance: As a verified US supplier, Atomfair accepts formal institutional Purchase Orders (POs), contract billing schedules, and custom procurement loops for university and national laboratories, and corporate R&D departments globally.

Platinum column counter electrode with selectable 5 mm or 10 mm column length for laboratory electrochemical cell assemblies.

SKU: AF-EC-E-PTCL-L005-PARENT
Category:
Brands:

Platinum column counter electrode series | ATOMFAIR

RESEARCH GRADE INSTRUMENT

Product Overview

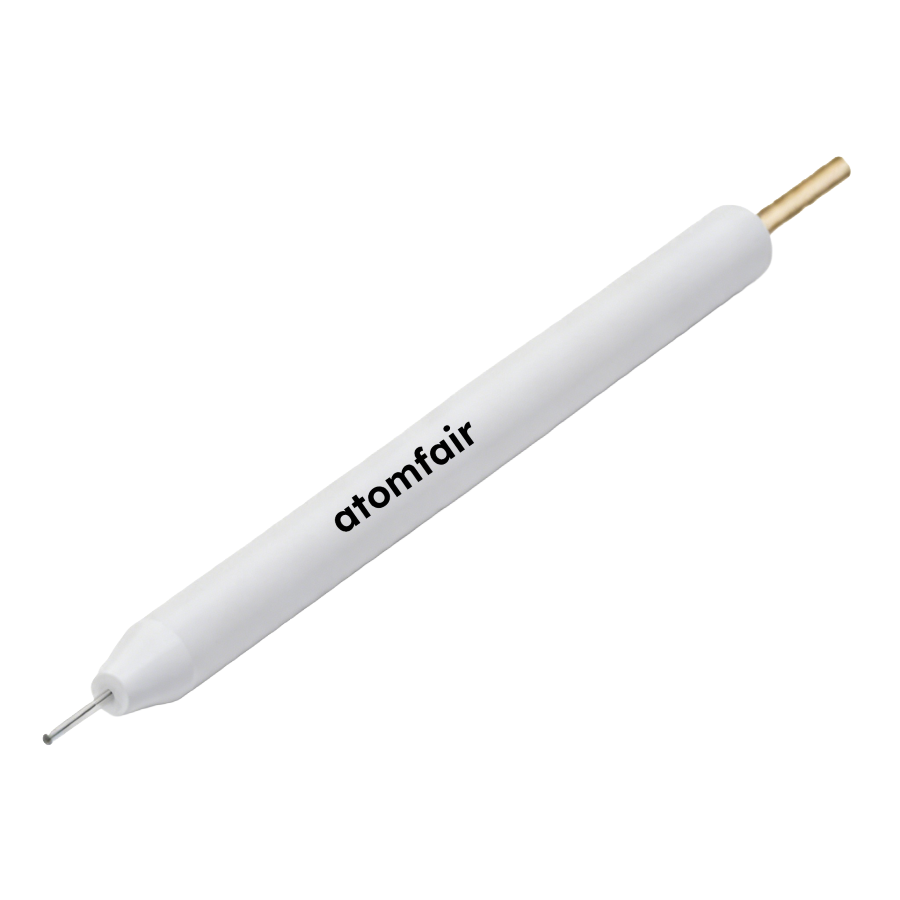

The ATOMFAIR® Platinum Column Counter Electrode features a high-purity platinum column with a diameter of 1.0mm and two available exposed length options: 5mm or 10mm. The platinum purity is 99.99%. The electrode is encased in a PTFE jacket, providing excellent chemical resistance and electrical insulation. This compact column design delivers a stable, reproducible counter electrode surface ideal for a wide range of electrochemical cell configurations.

Technical Specifications

PARAMETER DETAILS
1. Core Device & Electrochemical Design
Electrode Geometry Cylindrical configuration
Insulative Body PTFE
2. Electrode Material Portfolio Parameters
Material Platinum column
Purity 99.99%
Exposed Platinum Wire Dimensions 1.0*5mm, 1.0*10mm (Available for other dimensions upon special request)


Key Features & Advantages
  • Compact Column Geometry: Small footprint allows easy placement in confined electrochemical cells and close positioning to the working electrode.
  • High-Purity Platinum: 99.99% platinum column ensures minimal contamination and highly reproducible electrochemical behavior across experiments.
  • Chemically Robust PTFE Jacket: PTFE material provides exceptional resistance to a wide range of electrolytes, organic solvents, and aggressive chemical environments.
  • Stable and Reusable: The solid platinum column construction offers long service life and consistent performance with proper maintenance.

APPLICATION SCOPE: Healthcare, Environmental Monitoring, Chemical Engineering, Bio-industry, and Advanced Energy Systems.
PACKAGING: Secure individual research-grade protective containers with shock-absorption parameters.
IMPORTANT NOTICE: This product is highly sensitive to surface contamination. Keep containers tightly sealed or handle exclusively within an anhydrous inert environment to prevent phase contamination or degradation before electrochemical validation.
TAILORED SOLUTIONS FOR RESEARCH
Contact our engineering team for technical support or official institutional quotations.
EMAIL: inquiry@atomfair.com
Manufacturer: Atomfair LLC
Brand: ATOMFAIR®
Manufacturer: Atomfair LLC
Brand: ATOMFAIR®

Every advanced material, component, equipment, and instrument in our catalog is backed by rigorous testing. We maintain strict internal quality management frameworks and align with CE conformity metrics to deliver transparent, reproducible performance data via our public open-science repository.

To request raw batch performance data, submit formal vendor registration paperwork, or execute a fast-turnaround R&D manufacturing loop, contact us at inquiry@atomfair.com.

Item is dispatched under the Atomfair Shipping & Delivery Framework (Free worldwide shipping on orders over $59 USD excl. heavy equipment). Return is governed by the Atomfair Return & Refund Policy (7-day technical return window).

Specification

5 mm, 10 mm
