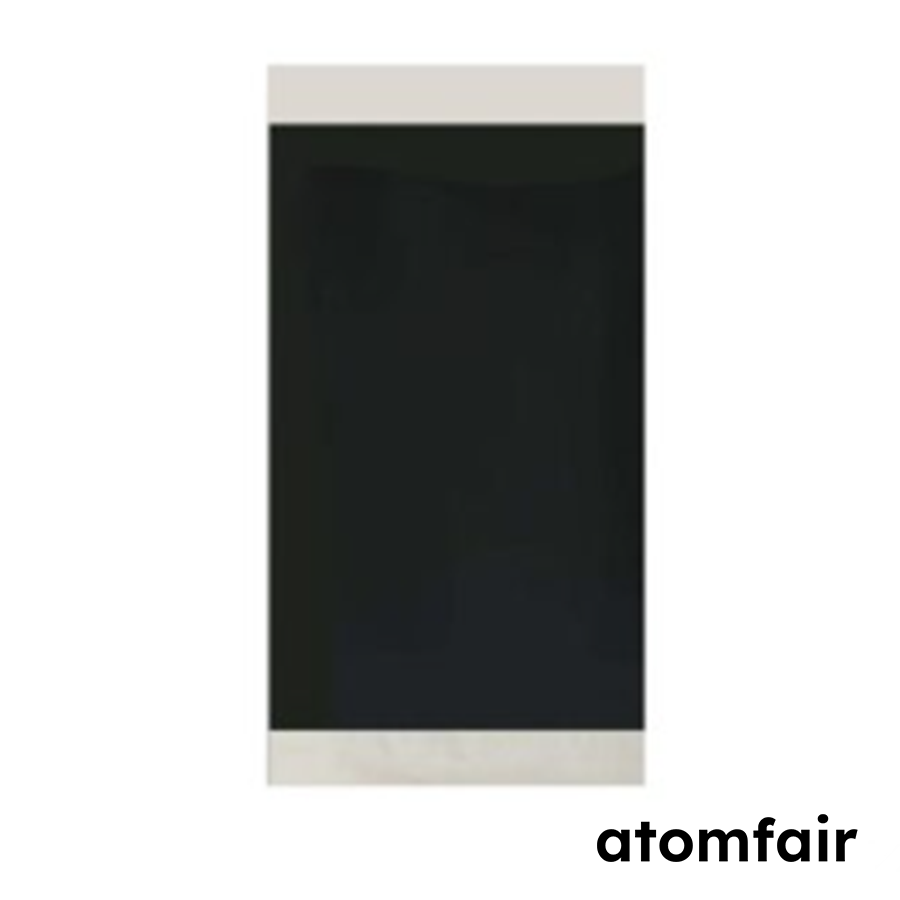

ATOMFAIR® NVP (SODIUM VANADIUM PHOSPHATE) ELECTRODE SHEETRESEARCH GRADE MATERIAL
|
|||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||
|
TAILORED SOLUTIONS FOR RESEARCH
Contact our engineering team for technical support or official institutional quotations.
EMAIL: inquiry@atomfair.com
|
|||||||||||||||||||||||||||
|
Manufacturer: Atomfair LLC
Brand: ATOMFAIR®
|
|||||||||||||||||||||||||||
Store this electrode in a dry, inert atmosphere (dew point below -40°C) to prevent moisture-induced degradation of the sodium vanadium phosphate cathode. The dry-processed double-side coating requires careful handling to avoid delamination or mechanical damage during cell assembly.
- Moisture Sensitivity: Maintain storage under argon or vacuum to minimize exposure to ambient moisture.
- Coating Integrity: Handle sheets by edges only and avoid bending or creasing to prevent cracking of the dry-coated layer.
- Pretreatment Requirement: Dry the electrode under vacuum at an appropriate elevated temperature prior to cell assembly to remove adsorbed water.
How should I pre-treat this electrode sheet before cell assembly?
We recommend vacuum baking at 100°C for 12 hours to remove residual moisture and solvents, ensuring optimal electrochemical stability.
How does the dry coating process affect the electrochemical performance of NVP cathodes at 41.4 mg/cm² loading?
The dry coating process enables a high active material ratio of 94.5% and a stable compaction density of 1.37 g/cm³, which are critical for achieving high-energy-density electrodes with consistent performance. This process avoids solvent-related issues and allows precise control over coating parameters, making it suitable for high-loading sodium-ion battery R&D.
In what types of electrochemical tests can this double-side NVP electrode be used?
This electrode is designed for high-loading sodium-ion battery R&D, including half-cell and full-cell testing, material evaluation, and batch-to-batch repeatability verification. It is double-side coated and ready for direct use in standard coin or pouch cells after recommended vacuum baking at 100°C for 12 hours.
This NVP double-side cathode sheet features a high areal density of 41.4 mg/cm² via dry coating, delivering 94.5% active material ratio for sodium-ion battery R&D, but requires vacuum baking pretreatment and is limited to lab use.
Positive
- High active material ratio: 94.5% active material ratio maximizes electrochemical utilization per unit mass, enabling higher energy density in sodium-ion cell testing.
- Dry coating process precision: Dry coating eliminates solvent-related defects and delivers consistent compaction density of 1.37 g/cm³, improving batch-to-batch repeatability for lab evaluations.
Trade-offs
- Vacuum baking pretreatment required: Manufacturer recommends vacuum baking at 100°C for 12 hours before cell assembly to remove residual moisture, adding a mandatory preconditioning step.
- Exclusive laboratory research use: Sold exclusively for laboratory R&D; not qualified or validated for pilot or production-scale battery manufacturing environments.
