Graphite Rod Counter Electrode - Purity 99.99%

Graphite Rod Counter Electrode – Purity 99.99%

$101.00

Institutional Procurement & Supply Compliance: As a verified US supplier, Atomfair accepts formal institutional Purchase Orders (POs), contract billing schedules, and custom procurement loops for university and national laboratories, and corporate R&D departments globally.

Graphite rod counter electrode with 99.99% purity and selectable 75 mm or 100 mm rod length for electrochemical applications.

SKU: AF-EC-E-GRRO-P999-PARENT
Category:
Brands:

Graphite rod counter electrode Series – Purity 99.99% | ATOMFAIR

RESEARCH GRADE INSTRUMENT

Product Overview

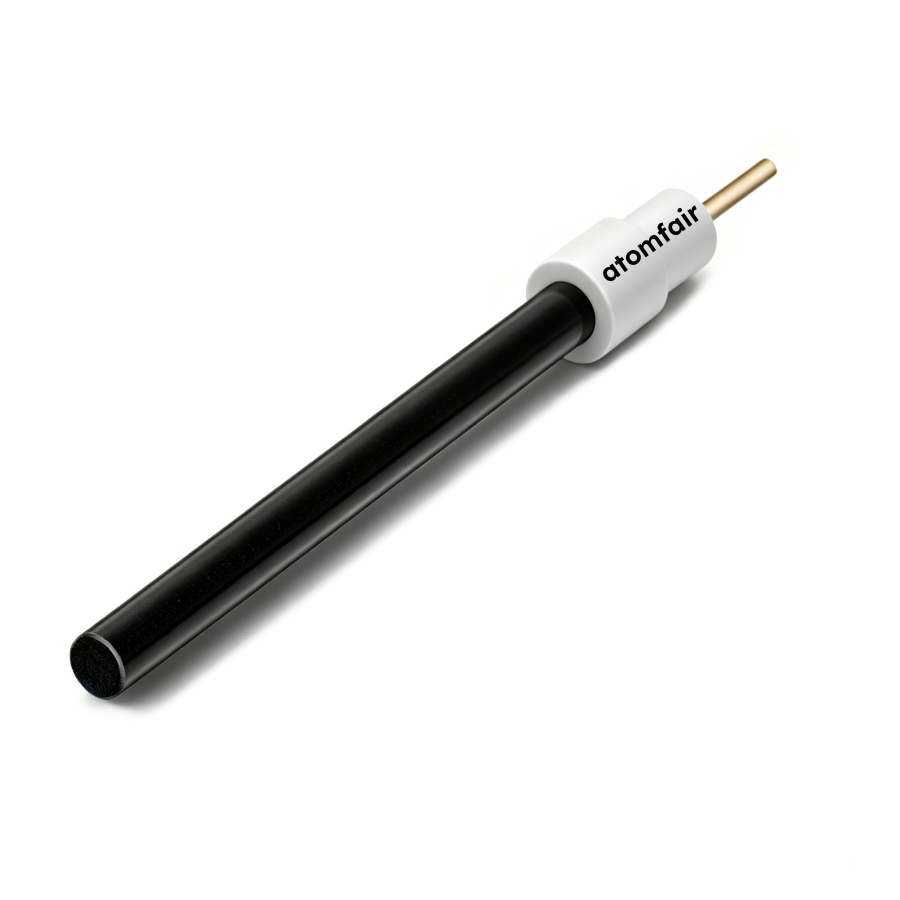

The ATOMFAIR® Graphite Rod Counter Electrode offers a cost-effective, chemically inert alternative to noble metal counter electrodes for routine electrochemical measurements. The electrode features a high-density graphite rod with a diameter of 6mm and two available exposed lengths: 75mm or 100mm. The graphite active region provides a large surface area with excellent electrical conductivity and broad electrochemical stability. The electrode is encased in a PTFE jacket that defines the exposed graphite region and protects the electrical connection. This design is particularly suitable for bulk electrolysis, large-scale cells, and applications where high currents are required but noble metal contamination must be avoided.

Technical Specifications

PARAMETER DETAILS
1. Core Device & Electrochemical Design
Electrode Geometry Cylindrical configuration
Insulative Jacket Material PTFE
2. Electrode Material Portfolio Parameters
Material Graphite rod
Purity 99.99%
Graphite Rod Diameter 6mm
Graphite Rod Length 75mm, 100mm (Available for other dimensions upon special request)


Key Features & Advantages
  • Large Active Surface Area: The 6mm diameter rod with extended length options (75mm or 100mm) offers substantial surface area for high current capacity and stable operation.
  • Cost-Effective Alternative: Graphite provides excellent counter electrode performance at a fraction of the cost of platinum or gold electrodes, ideal for high-throughput or routine applications.
  • Wide Electrochemical Stability: Graphite exhibits a broad potential window and good stability in many aqueous and non-aqueous electrolyte systems.
  • Low Background Current: High-density graphite minimizes leaching and contamination, maintaining low background currents during sensitive measurements.

APPLICATION SCOPE: Healthcare, Environmental Monitoring, Chemical Engineering, Bio-industry, and Advanced Energy Systems.
PACKAGING: Secure individual research-grade protective containers with shock-absorption parameters.
IMPORTANT NOTICE: This product is highly sensitive to surface contamination. Keep containers tightly sealed or handle exclusively within an anhydrous inert environment to prevent phase contamination or degradation before electrochemical validation.
TAILORED SOLUTIONS FOR RESEARCH
Contact our engineering team for technical support or official institutional quotations.
EMAIL: inquiry@atomfair.com
Manufacturer: Atomfair LLC
Brand: ATOMFAIR®
Manufacturer: Atomfair LLC
Brand: ATOMFAIR®

Every advanced material, component, equipment, and instrument in our catalog is backed by rigorous testing. We maintain strict internal quality management frameworks and align with CE conformity metrics to deliver transparent, reproducible performance data via our public open-science repository.

To request raw batch performance data, submit formal vendor registration paperwork, or execute a fast-turnaround R&D manufacturing loop, contact us at inquiry@atomfair.com.

Item is dispatched under the Atomfair Shipping & Delivery Framework (Free worldwide shipping on orders over $59 USD excl. heavy equipment). Return is governed by the Atomfair Return & Refund Policy (7-day technical return window).

Specification

75 mm, 100 mm
