VGM863 Semi-automatic Cylindrical Battery Vertical Grooving Machine High Precision Groover 400pcs/H Adjustable Sealing Grooving Equipment

VGM863 Semi-automatic Cylindrical Battery Vertical Grooving Machine High Precision Groover 400pcs/H Adjustable Sealing Grooving Equipment

Institutional Procurement & Supply Compliance: As a verified US supplier, Atomfair accepts formal institutional Purchase Orders (POs), contract billing schedules, and custom procurement loops for university and national laboratories, and corporate R&D departments globally.

Atomfair-VGM863 Semi-automatic Vertical Grooving Machine The Atomfair-VGM863 is designed for cylindrical battery grooving, delivering ±0.1mm precision and 400pcs/h capacity. With adjustable parameters, stable performance and easy operation, it greatly improves battery sealing and safety for efficient production.

SKU: AFMSNQBA900
Category:
Tags:
Brands:

Description

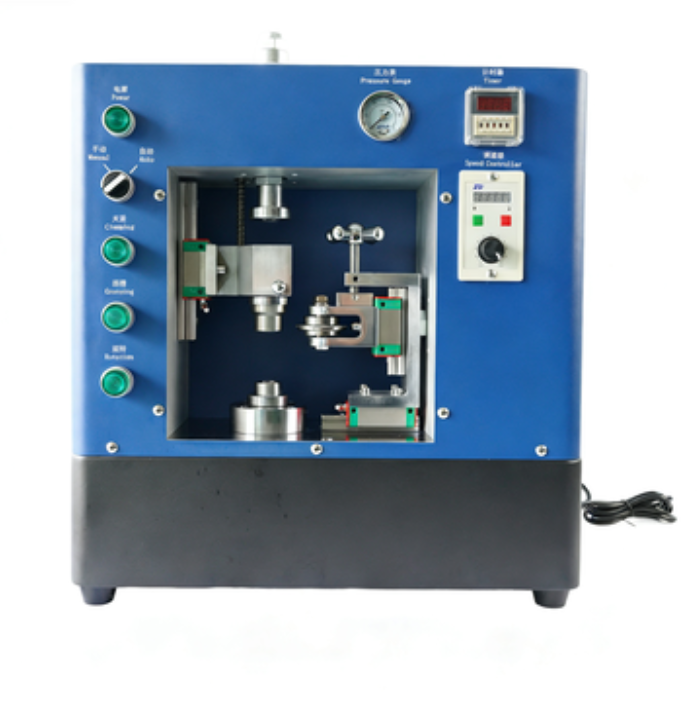

ATOMFAIR VGM863 SEMI-AUTOMATIC CYLINDRICAL BATTERY VERTICAL GROOVING MACHINE

RESEARCH GRADE EQUIPMENT

Product Overview
The ATOMFAIR VGM863 Cylindrical Battery Grooving Machine is a specialized vertical semi-automatic ±0.1mm accuracy system designed for battery case sealing groove processing in cylindrical battery production. This semi-automatic equipment processes precise sealing grooves on battery cases, ensuring a tight fit between the battery cover and case to improve sealing performance and safety. With manual battery clamping and automatic grooving operation, the machine delivers 400 pcs/h hob life over 1M cycles, combining precision and efficiency for research and production environments. The adjustable grooving depth (1.2–2.0 mm) and width (1.1–1.5 mm according to hob thickness) enable flexible adaptation to multiple battery specifications. The compact design (490 × 230 × 560 mm, 40 kg) operates on AC220V/50Hz with 140W power consumption and 0.5–0.7 MPa compressed air supply. Built with high-quality materials and manufacturing processes, the VGM863 guarantees long-term stable operation with a hob service life exceeding 1,000,000 cycles.

Technical Specifications
PARAMETER DETAILS
Model VGM863
Equipment Dimensions 490 × 230 × 560 mm
Net Weight 40 kg
Version V2.0
Grooving Depth 1.2–2.0 mm (Adjustable)
Grooving Width 1.1–1.5 mm (According to Hob Thickness)
Processing Accuracy ±0.1 mm
Hob Service Life >1,000,000 Cycles
Production Capacity Semi-Automatic 400 EA/H
Power Supply AC 220 V / 50 Hz
Power 140 W
Compressed Air 0.5–0.7 MPa
Custom Configurations Custom grooving parameters and hob specifications are available upon request. Please contact us via email for specialized engineering inquiries.

Key Features & Advantages
  • ±0.1 mm Precision with 400 pcs/h Efficiency: The VGM863 combines high processing accuracy with a production capacity of 400 pieces per hour, meeting the requirements of efficient cylindrical battery production without compromising sealing groove quality.
  • Adjustable Grooving Parameters for Multi-Specification Flexibility: Grooving depth (1.2–2.0 mm) and width (1.1–1.5 mm) are independently adjustable, enabling the machine to accommodate batteries of multiple specifications with parameter adjustments that adapt to diverse production requirements.
  • Extended Hob Service Life Exceeding 1,000,000 Cycles: High-quality hob materials and precision manufacturing processes deliver a tool life surpassing one million cycles, significantly reducing consumable replacement frequency and operational costs.
  • Compact Vertical Design with Simple Manual Clamping: The operator manually clamps the battery and the equipment automatically completes the grooving process. The compact 490 × 230 × 560 mm footprint and 40 kg net weight enable easy integration into existing production lines.

APPLICATION SCOPE: Processing sealing grooves on cylindrical battery cases to ensure tight fit between battery cover and case. Improving sealing performance and safety of cylindrical lithium-ion batteries. Suitable for battery research laboratories and pilot production lines requiring precise and repeatable grooving operations. Compatible with multiple cylindrical battery specifications through adjustable grooving parameters.
PACKAGING & DELIVERY: Each VGM863 grooving machine is securely packed for equipment transport. Standard configuration includes the grooving unit with adjustable hob assembly, manual clamping mechanism, and control system. Installation guidance and operational training support are provided upon request.
IMPORTANT NOTICE: Compressed air supply of 0.5–0.7 MPa is required for operation. The hob thickness determines the grooving width—verify compatibility with target battery specifications before ordering. Regular hob inspection and replacement are recommended to maintain ±0.1 mm processing accuracy. For detailed installation, operation, and maintenance instructions, consult the user manual prior to first use. If you have specific customization requirements, please contact us at inquiry@atomfair.com.
