500L Intelligent Biochemical Incubator, -5-70℃ Temperature Control Range

500L Intelligent Biochemical Incubator, -5-70°C

The cabinet layout is defined by the chamber size is 670x725x1020mm, the standard shelf setup is 3 shelves, input power is 2250 W, the power supply is AC220V 50Hz. These dimensions and electrical requirements help laboratories plan bench-side placement, floor-standing installation, teaching use, quality inspection, research sample staging, and repeated daily workflows.

Temperature performance includes 0.1°C temperature resolution, high temp ±0.3°C; low temp ±0.5°C fluctuation control, ±1.5°C at 25°C temperature uniformity, a timer range of 0 to 5999 min. The working chamber uses Mirror stainless-steel inner chamber with rounded-corner transitions and removable or adjustable shelf supports for easier cleaning and loading. This construction supports regular loading, cleaning, observation, and repeated operation where stable environmental conditions are important.

Control options are shown as AF-BI500-BPC50T: Intelligent touch-screen controller.The controller supports 8 program groups with up to 8 steps in each group, and it allows multi-stage programming for gradient temperature rise from the initial chamber condition. confirm the final control interface before quotation. Optional functions may include an embedded printer, RS485 communication, USB data transfer, independent over-temperature alarm protection, multi-segment programmable control, and UV sterilization for applicable mold configurations. Accessory availability and custom chamber-size requirements can be checked by e-mail before ordering.

• 0.1°C temperature resolution supports finer setpoint adjustment, which is helpful for routine cultivation, preservation, and method repeatability.
• Intelligent touch-screen controller use a 4.3-inch display to show and set temperature, time, and other parameters in real time, keeping operation simple and intuitive. The controller supports 8 program groups with up to 8 steps in each group, with each program settable from 0 to 5,999 minutes, and it allows multi-stage programming for gradient temperature rise from the initial chamber condition. Auto start, standby, and shutdown functions can also be preset, while the touch-screen lock helps prevent accidental operation by unauthorized users.
• The published fluctuation level of high temp ±0.3°C; low temp ±0.5°C helps users maintain steadier chamber conditions during day-to-day experimental cycles.
• Temperature uniformity of ±1.5°C at 25°C helps reduce position-related differences inside the chamber, which is valuable when multiple vessels are loaded at once.
• The published shelf configurations help laboratories organize flasks, bottles, trays, and routine test loads more flexibly within the available chamber volume.

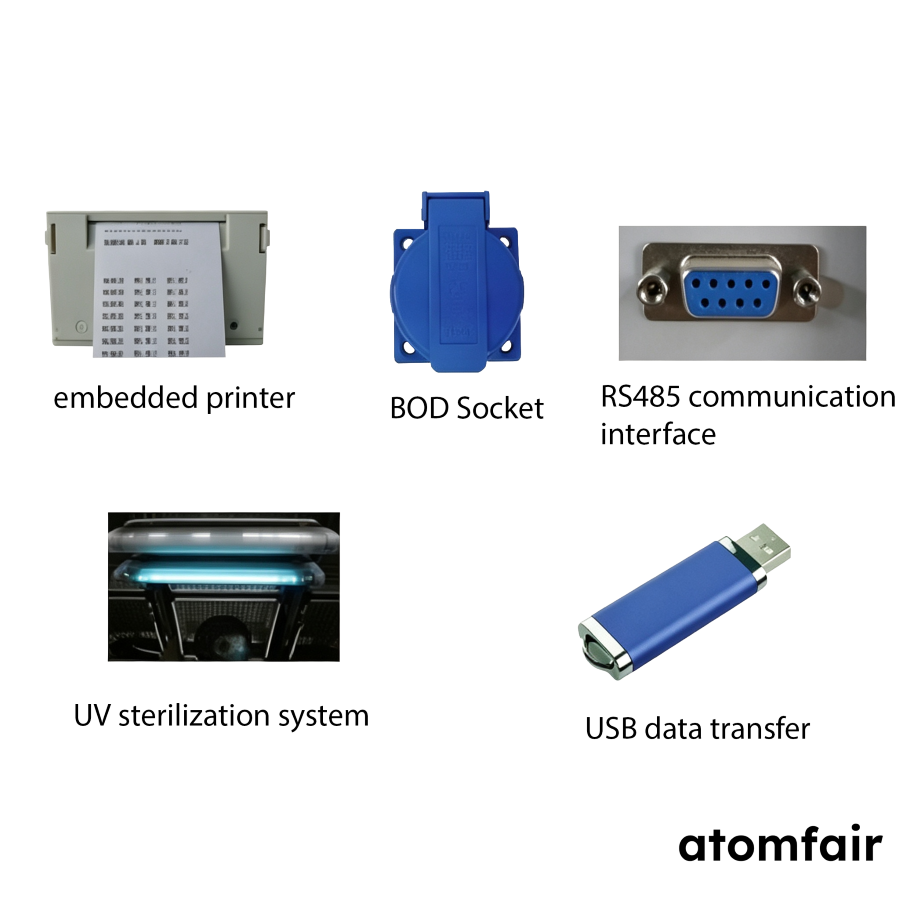

• Optional accessories can include embedded printers, RS485 communication, USB data transfer, independent over-temperature alarm support, multi-segment programmable control, and mold-series UV sterilization where applicable.
• If a configuration needs a different chamber size or accessory package, the quotation can be adjusted by e-mail before order confirmation.
