Product Overview
|
|
150L Standard Mold Incubator, 0-60℃ Temperature Control Range is designed for mold and fungal culture, microorganism observation, constant-temperature storage, and routine environmental incubation. With a nominal capacity of 150 L and a temperature range of 0-60℃, it supports controlled handling of cultures, fungal samples, microorganisms, preserved materials, and other laboratory test loads.
The cabinet layout is defined by the chamber size is 503×370×808mm, overall dimensions are 600×630×1360mm, the standard shelf setup is 3 shelves, input power is 500 W, the power supply is AC220V 50Hz. These dimensions and electrical requirements help laboratories plan bench-side placement, floor-standing installation, teaching use, quality inspection, research sample staging, and repeated daily workflows.
Temperature performance includes 0.1°C temperature resolution, high temp ±0.5°C; low temp ±1.0°C fluctuation control, ±1.5°C to ±2.5°C at 25°C temperature uniformity, a timer range of 0 to 5999 min. The working chamber uses Mirror stainless-steel inner chamber with rounded-corner transitions and removable or adjustable shelf supports for easier cleaning and loading. Applicable cabinet series use one-piece foamed insulation to reduce heat loss and support steadier temperature control. This construction supports regular loading, cleaning, observation, and repeated operation where stable environmental conditions are important.
Control options are shown as AF-MI150-MJ15I: Digital display controller; AF-MI150-MJ15F: Digital display controller. Optional functions may include an embedded printer, RS485 communication, USB data transfer, independent over-temperature alarm protection, multi-segment programmable control, and UV sterilization for applicable mold configurations. Accessory availability and custom chamber-size requirements can be checked by e-mail before ordering.
|
|
Product Specifications
|
| Parameter |
Specification |
| Product Type |
Mold Incubator |
| Nominal Capacity |
150 L |
| Atomfair Models |
AF-MI150-MJ15I / AF-MI150-MJ15F |
| Temperature Range |
0-60℃ |
| Temperature Resolution |
0.1°C |
| Temperature Fluctuation |
high temp ±0.5°C; low temp ±1.0°C |
| Temperature Uniformity |
±1.5°C to ±2.5°C at 25°C |
| Input Power |
500 W |
| Power Supply |
AC220V 50Hz |
| Ambient Temperature |
+5 to 30°C |
| Chamber Size |
503×370×808mm |
| Overall Dimensions |
600×630×1360mm |
| Shelves |
3 shelves |
| Timer |
0 to 5999 min |
| Cabinet Insulation |
Foamed cabinet insulation |
| Inner Chamber and Insulation |
Mirror stainless-steel inner chamber with rounded-corner transitions and removable or adjustable shelf supports for easier cleaning and loading. Applicable cabinet series use one-piece foamed insulation to reduce heat loss and support steadier temperature control. |
| Controller Configuration |
AF-MI150-MJ15I: Digital display controller; AF-MI150-MJ15F: Digital display controller |
| Optional Accessories |

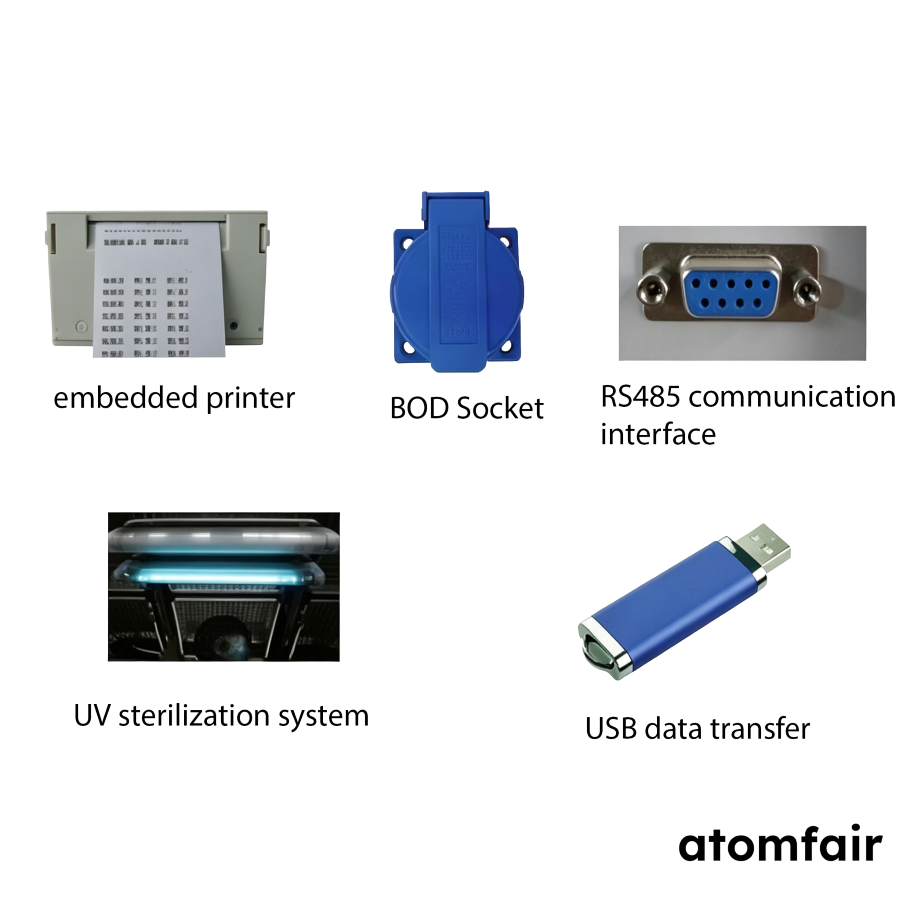

Optional embedded printer or RS485 communication interface for recording temperature changes; USB data transfer for selected configurations; Independent over-temperature alarm system where supported; Multi-segment programmable controller for selected control configurations; UV sterilization system, standard or optional depending on the selected mold configuration. Some accessories may be non-stock and require lead time; email for availability and quotation. |
|
|
Key Points and Advantages
|
- 0.1°C temperature resolution supports finer setpoint adjustment, which is helpful for routine cultivation, preservation, and method repeatability.
- The published fluctuation level of high temp ±0.5°C; low temp ±1.0°C helps users maintain steadier chamber conditions during day-to-day experimental cycles.
- Temperature uniformity of ±1.5°C to ±2.5°C at 25°C helps reduce position-related differences inside the chamber, which is valuable when multiple vessels are loaded at once.
- Multiple configurations are presented on one page so teams can compare capacity, footprint, and power demand side by side without losing the shared product context.
- The published shelf configurations help laboratories organize flasks, bottles, trays, and routine test loads more flexibly within the available chamber volume.
- Optional accessories can include embedded printers, RS485 communication, USB data transfer, independent over-temperature alarm support, multi-segment programmable control, and mold-series UV sterilization where applicable.
- If a configuration needs a different chamber size or accessory package, the quotation can be adjusted by e-mail before order confirmation.
|
|
APPLICATION SCOPE: Suitable for mold cultivation, fungal observation, microorganism incubation, and constant-temperature storage where stable chamber conditions help support culture development and routine laboratory checks.
PACKAGING: The equipment is prepared with protective inner cushioning, reinforced outer packaging, and transport-oriented structural support to help reduce vibration and handling impact during storage and delivery. Export reinforcement or other packing adjustments can be discussed when project quantity, route, or receiving conditions require it.
IMPORTANT NOTICE: Please confirm the exact configuration, installation footprint, power supply, accessory package, and delivery arrangement before ordering. If a custom chamber size is required, please contact us by e-mail for quotation and availability review.
|
|
|
