ATOMFAIR® LMR-S03 LITHIUM-RICH MANGANESE-BASED CATHODE (LMR) ELECTRODE SHEETRESEARCH GRADE MATERIAL | DRY PROCESS
|
|||||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||||
|
TAILORED SOLUTIONS FOR RESEARCH
Contact our engineering team for technical support or custom fabrication requests.
EMAIL: inquiry@atomfair.com
|
|||||||||||||||||||||||||||||||||||||||||
|
Manufacturer: Atomfair LLC
Brand: ATOMFAIR®
|
|||||||||||||||||||||||||||||||||||||||||
This lithium-rich manganese-based cathode electrode sheet requires vacuum baking at 100°C for 12 hours prior to cell integration to remove atmospheric volatiles. The carbon-coated aluminum foil substrate is sensitive to moisture and must be stored in vacuum-sealed packaging until use.
- Pre-conditioning requirement: The electrode sheet must be vacuum-baked at 100°C for 12 hours before cell assembly to eliminate atmospheric volatile profiles.
- Storage condition: Store in vacuum-sealed packaging to prevent moisture absorption and maintain material integrity.
- Handling precaution: Advanced dry process architectures require careful handling to maintain structural integrity and performance.
How does the 35 mg/cm² coating density with 300 mAh/g capacity affect the areal capacity and rate capability of the LMR-S03 electrode?
The 35 mg/cm² loading combined with 300 mAh/g specific capacity provides a high areal energy density suitable for high-energy cells. The 96% active material ratio ensures minimal dilution of electroactive material, and the dry process coating maintains structural uniformity that supports consistent cycling performance. The carbon-coated aluminum foil current collector further mitigates contact resistance and polarization, which is beneficial for rate capability under aggressive testing.
What current collector design is used in the LMR-S03 electrode sheet and how does it influence interfacial resistance?
The electrode uses a carbon-coated aluminum foil current collector with an areal density of 4.2 mg/cm² and a total thickness of 13 μm (12 μm aluminum substrate plus 0.5 μm carbon coating on each side). The carbon coating layer reduces contact resistance at the electrode-collector interface and diminishes cell polarization, which is especially critical for high-loading electrodes like the 35 mg/cm² LMR cathode to maintain stable electrochemical performance.
What are the recommended storage and preconditioning steps for the LMR-S03 electrode sheets before cell assembly?
The electrode sheets are vacuum-sealed in packs of 5 to maintain batch integrity. Prior to cell integration, the sheets must be vacuum-baked at 100°C for 12 hours to eliminate atmospheric moisture and volatile residues. This conditioning step is critical for dry-process electrodes to avoid contamination and ensure reliable electrochemical testing.

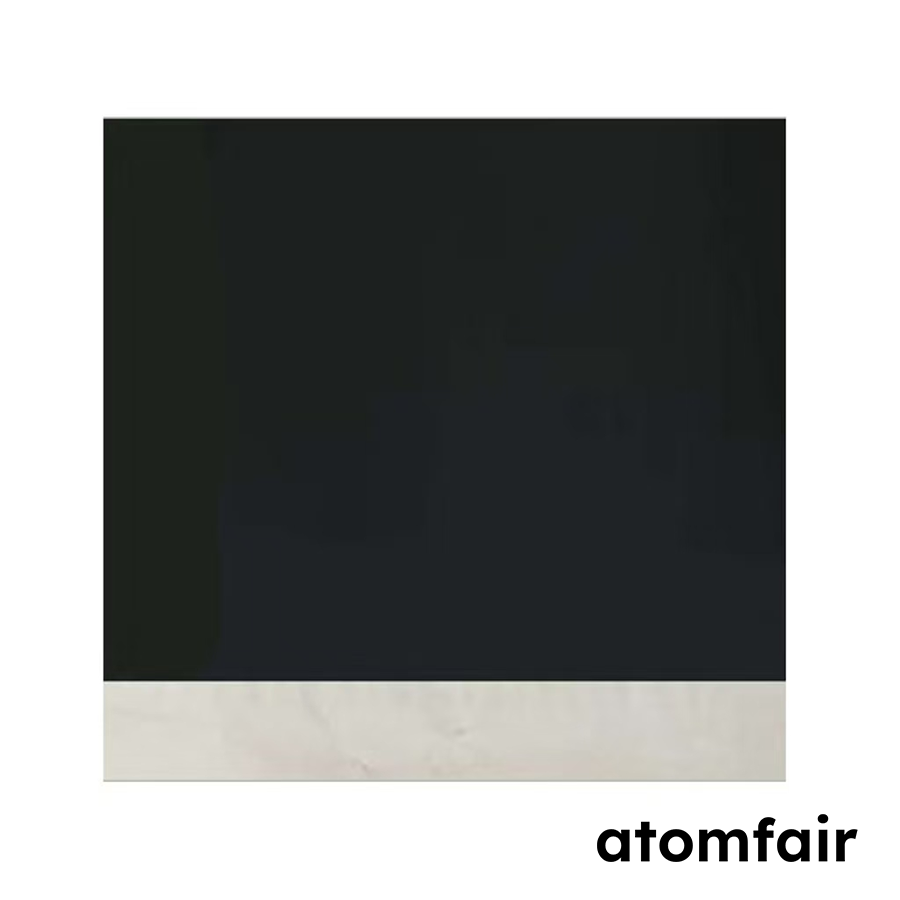

This single-sided LMR cathode sheet delivers 300 mAh/g capacity with a 96% active material ratio, coated via dry process at 35 mg/cm² on carbon-coated aluminum foil. It requires 12-hour vacuum baking at 100°C before cell integration and is restricted to laboratory research use.
Positive
- High specific capacity and active material ratio: Rated at 300 mAh/g with 96.00% active material content, providing a precise analytical baseline for high-energy lithium-ion battery R&D and electrochemical diagnostics.
- Dry process coating with uniform loading: Dry-process fabrication yields a clean, solvent-free film with a uniform 35 mg/cm² single-sided coating, minimizing residue-related variability for reproducible testing.
Trade-offs
- Mandatory vacuum baking before use: The electrode requires a 12-hour vacuum bake at 100°C prior to cell integration to remove atmospheric volatiles, adding a preconditioning step to the workflow.
- Restricted to laboratory research use: This product is sold exclusively for laboratory research, not for commercial production, limiting its deployment to experimental and validation settings.
