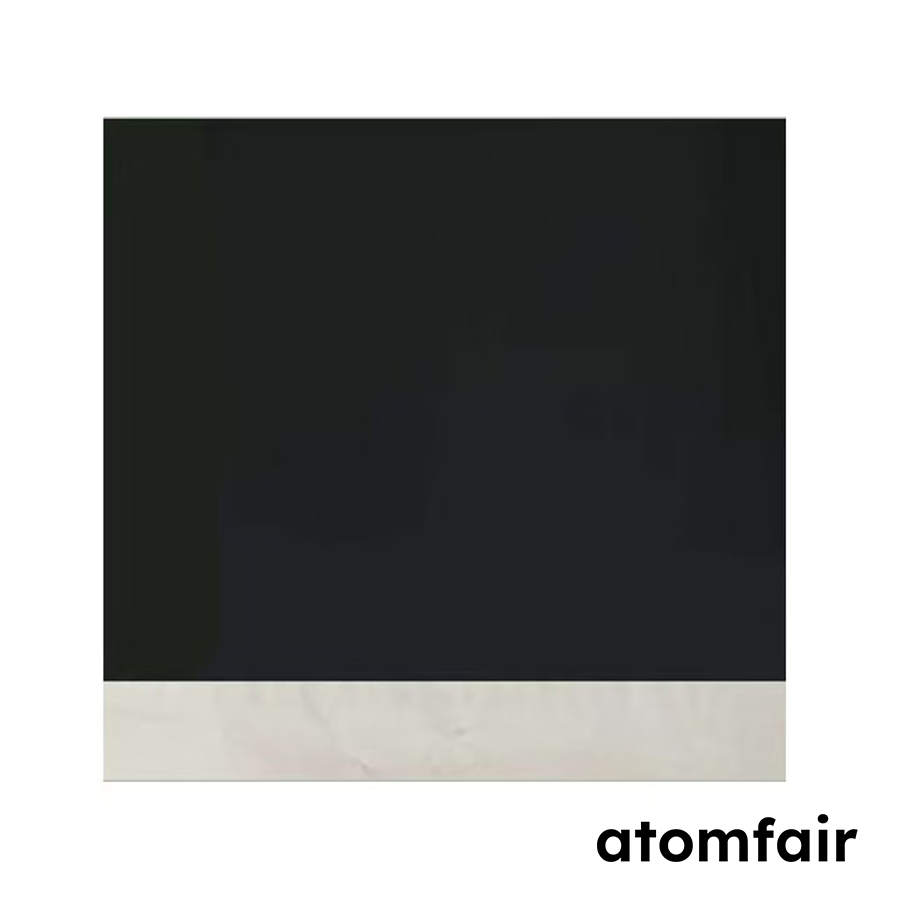

ATOMFAIR® NFPP-D02 SODIUM IRON PHOSPHATE PYROPHOSPHATE (NFPP) ELECTRODE SHEETRESEARCH GRADE MATERIAL
|
||||||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||||||
|
|||
|
TAILORED SOLUTIONS FOR RESEARCH
Contact our engineering team for technical support or official institutional quotations.
EMAIL: inquiry@atomfair.com
|
|||
|
Manufacturer: ATOMFAIR LLC
Brand: ATOMFAIR®
Disclaimer: Sold exclusively for laboratory research.
|
The electrode sheet should be processed in an inert atmosphere to avoid moisture and oxygen exposure. Proper storage in a sealed container is recommended to preserve material integrity.
- Atmospheric Sensitivity: Handle and store the electrode sheet under argon or in a dry room to prevent degradation of the sodium iron phosphate pyrophosphate active material.
How is the electrode sheet baking time determined?
It is 12 hours under vacuum baking at 100°C.
How does the 94.5% active material ratio contribute to the electrode's specific capacity of 95 mAh/g?
The 94.5% active material ratio maximizes the proportion of electrochemically active NFPP, allowing the electrode to deliver a specific capacity of 95 mAh/g. This high ratio reduces inactive binder and additive content, which is standard for high-performance research electrodes.
Can the NFPP-D02 electrode sheets be customized for different substrate sizes?
Yes, the NFPP-D02 electrode sheets can be fully customized, including coating thickness/width and aluminum foil thickness/width. The standard substrate size is 120×140 mm with a coating area of 120×120 mm, but adjustments are available upon request.
The NFPP-D02 electrode sheet provides a high active material ratio of 94.5% and uniform double-side coating at 40 mg/cm² via wet process, enabling consistent sodium-ion battery R&D testing. Users must plan for a 12-hour vacuum baking pretreatment at 100°C and note the laboratory-exclusive application scope.
Positive
- High active material ratio: With a 94.5% active material loading, the electrode delivers higher energy density per unit mass, improving electrochemical performance evaluation in sodium-ion coin cells.
- Precision wet coating uniformity: The double-sided wet process achieves a consistent 40 mg/cm² coating density across 120×120 mm, ensuring reproducible test results across the 5-sheet pack.
Trade-offs
- Requires 12-hour vacuum baking: The electrode sheet must be baked under vacuum at 100°C for 12 hours before use, adding significant preparation time and requiring appropriate oven capacity.
- Intended for laboratory research only: This product is explicitly sold for laboratory research and not designed for pilot or production-scale manufacturing, limiting its direct transfer to commercial processes.
