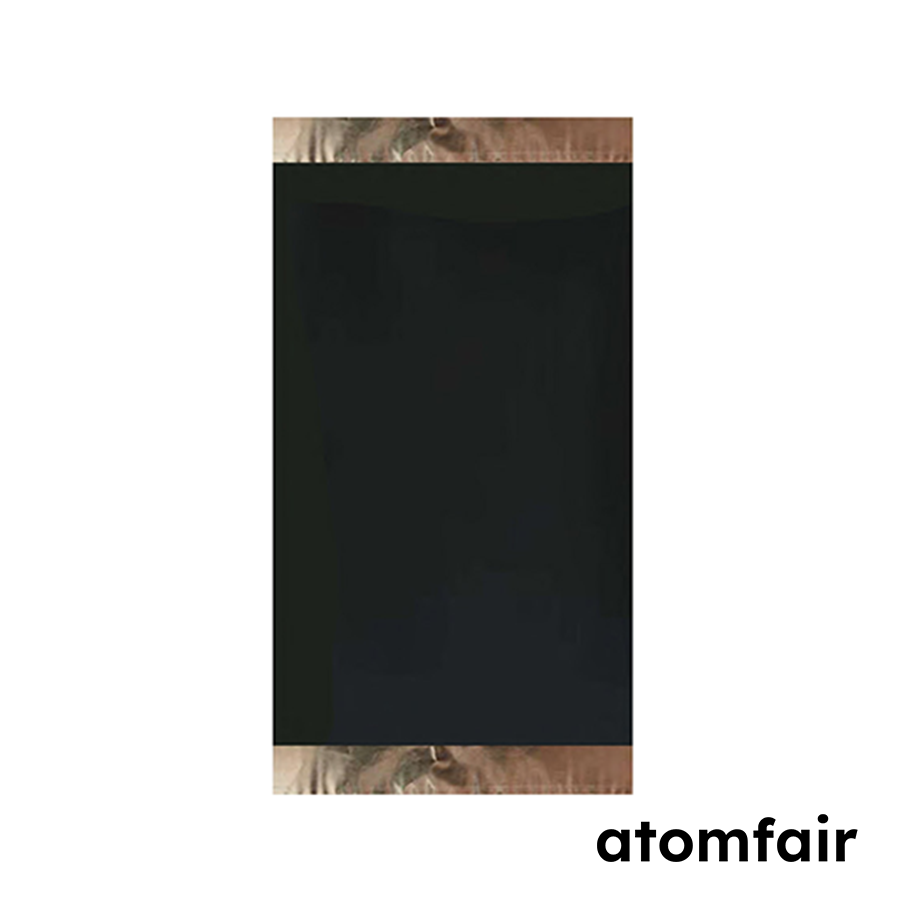

Atomfair D01-Graphite (Gr) Electrode SheetRESEARCH GRADE MATERIAL
|
|||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||
|
TAILORED SOLUTIONS FOR RESEARCH
If you’re interested, have any questions, or have specific customization requirements, please feel free to contact us.
EMAIL:inquiry@atomfair.com
|
|||||||||||||||||||||||||||||||||||||
|
Manufacturer: Atomfair LLC
Brand: ATOMFAIR®
|
This electrode sheet is sensitive to moisture and oxygen exposure. Storage in a dry, inert atmosphere (e.g., argon-filled glovebox) is required to prevent degradation of the graphite coating and copper substrate.
- Moisture Sensitivity: Store the electrode sheets in a sealed container with desiccant or under vacuum to minimize moisture pickup.
How does the double-side coating density of 14.4 mg/cm² per side translate to total areal capacity?
With a specific capacity of 350 mAh/g and double-side loading of 14.4 mg/cm² per side, the total areal capacity is approximately 10.08 mAh/cm², offering substantial energy density for high-loading battery research.
What are the substrate and coating material specifications for ensuring compatibility with standard coin cell assembly?
The electrode uses a carbon-coated copper foil substrate of 12 μm thickness and 5.45 mg/cm² areal density, with a graphite coating of 96.5% active material ratio. These specifications are compatible with typical lithium-ion battery assembly protocols using a lithium metal or lithium iron phosphate counter electrode.
What is the recommended vacuum baking procedure before using this electrode sheet?
The electrode sheet requires vacuum baking at 100°C for 12 hours to remove moisture and solvents prior to electrolyte filling, as specified in the product documentation.
This electrode sheet features a high active material loading of 14.4 mg/cm² double-side coated via a wet process on a carbon-coated copper foil, offering consistent electrochemical performance for lithium-ion battery R&D. However, the required 12-hour vacuum bake at 100°C and the delicate thin substrate necessitate careful handling and preparation.
Positive
- High active material ratio: With a 96.5% active material ratio, this electrode minimizes inactive binder content, enhancing specific capacity and rate performance for lithium-ion cell testing.
- Reproducible wet process coating: The double-side wet process at 14.4 mg/cm² areal loading ensures uniform electrode properties, critical for reliable electrochemical evaluation and data comparability.
Trade-offs
- Required 12-hour vacuum bake: The electrode sheet must be vacuum baked at 100°C for 12 hours prior to use, adding laboratory preparation time and requiring dedicated vacuum oven infrastructure.
- Thin and double-sided substrate: The 12 μm copper foil with double-sided coating is mechanically delicate, demanding careful handling during cell assembly to avoid wrinkling or damage.
