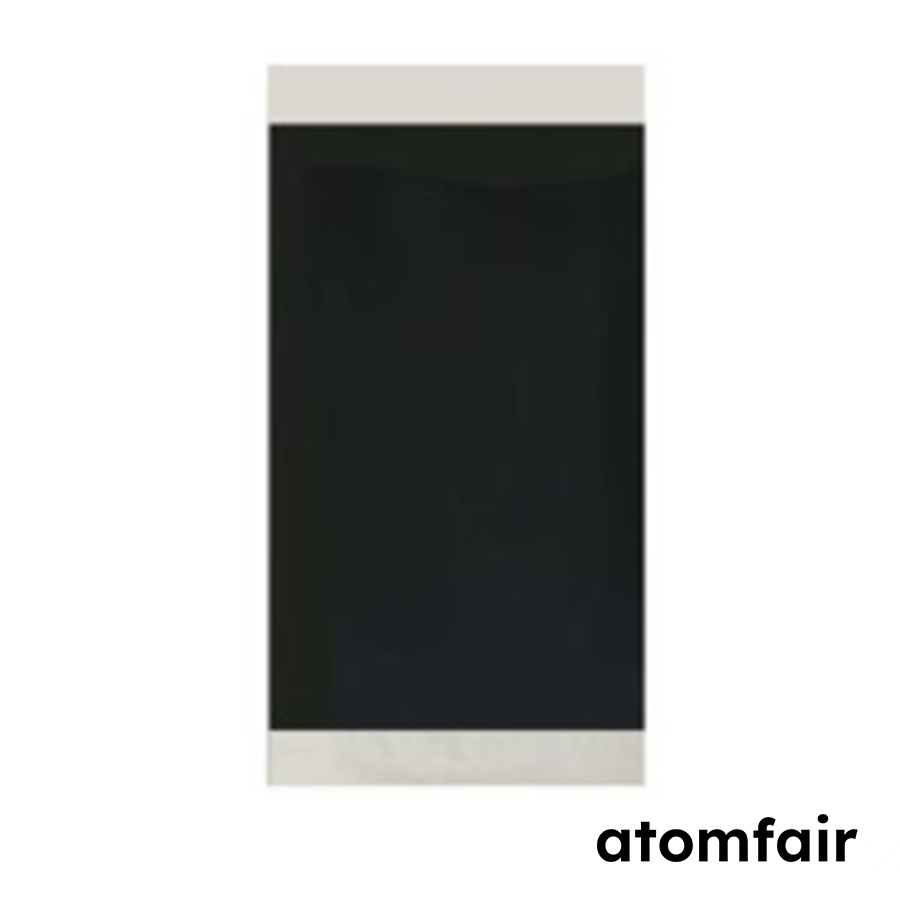

ATOMFAIR® SINGLE-SIDED LITHIUM TITANATE (LTO) COATED COPPER FOILRESEARCH GRADE MATERIAL
|
|||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||
|
TAILORED SOLUTIONS FOR RESEARCH
Contact our engineering team for technical support or official institutional quotations.
EMAIL: SUPPORT@ATOMFAIR.COM
|
|||||||||||||||||||||||||||
|
Manufacturer: Atomfair LLC
Brand: ATOMFAIR®
|
|||||||||||||||||||||||||||
This material requires controlled storage conditions to maintain performance. No explicit constraints are provided in the product data.
How does the typical 10–20 μm coating thickness variation affect the rate capability and cycle life of LTO anodes in fast-charging applications?
The 10–20 μm coating thickness provides a balanced trade-off between ionic diffusion path length and active material loading. Thinner coatings enhance rate capability by reducing lithium-ion transport distances, while thicker coatings increase energy density. The single-sided LTO coating on copper foil ensures high conductivity for electrode performance, supporting fast-charging capability as inherent to Lithium Titanate.
Can this single-sided LTO coated copper foil be directly integrated into standard coin cell or pouch cell assembly without additional modification?
The 230 mm × 90 mm sheet dimensions are adaptable for various experimental setups, including coin cell and pouch cell fabrication. The single-sided coating requires careful alignment to avoid short circuits, and the copper substrate must be nickel-welded or tabbed appropriately for current collection. The material is tailored for laboratories developing next-generation lithium-ion technologies, so standard assembly procedures apply.
What specific environmental conditions are required for storing single-sided LTO coated copper foil to prevent degradation?
Store the foil in a cool, dry environment to maintain optimal performance and prevent degradation. Exposure to moisture or high temperatures can compromise the LTO coating adhesion and the copper substrate integrity. The packaging of five sheets should remain sealed until use to minimize ambient exposure.
Single-sided LTO-coated copper foil enables fast-charge research with excellent cycle stability, but requires controlled, dry storage and careful accounting for coating thickness variation.
Positive
- Fast-charge and cycle stability: Lithium titanate coating provides inherent excellent cycle life and safety, enabling advanced fast-charge electrode fabrication for battery R&D.
- High electrical efficiency copper substrate: Copper foil substrate ensures superior conductivity, critical for consistent electrode performance in lithium-ion cell testing.
Trade-offs
- Coating thickness variability: Specified at approximately 10–20 μm; thickness may vary between sheets, requiring individual characterization for reproducible experimental results.
- Moisture and temperature sensitivity: Storage in a cool, dry environment is explicitly recommended to prevent performance degradation, indicating sensitivity to ambient humidity and temperature that must be controlled in the laboratory.
