ATOMFAIR Double Sided Graphite Anode Sheet 7.2mg
Graphite Double-Side 7.2 mg/cm² Wet Anode 5 Pack ATOMFAIR® - Image 2
Graphite Double-Side 7.2 mg/cm² Wet Anode 5 Pack ATOMFAIR® - Image 3
Graphite Double-Side 7.2 mg/cm² Wet Anode 5 Pack ATOMFAIR® - Image 4
Graphite Double-Side 7.2 mg/cm² Wet Anode 5 Pack ATOMFAIR® - Image 5

Graphite Double-Side 7.2 mg/cm² Wet Anode 5 Pack ATOMFAIR®

$89.00

Institutional Procurement & Supply Compliance: As a verified US supplier, Atomfair accepts formal institutional Purchase Orders (POs), contract billing schedules, and custom procurement loops for university and national laboratories, and corporate R&D departments globally.

Research grade graphite double-side anode: 7.2 mg/cm² wet coating on 12 μm Cu foil, 96.5% active material. 5 pack. Ideal for Li-ion R&D. In stock.

Quantity Price
1 – 4 $89.00
5+ $79.00
SKU: AF-BM-S-AGR0-CD72-5P00
Category:
Tags: , , , ,
Brands:

Description

ATOMFAIR® S01-GRAPHITE (GR) ELECTRODE SHEET

RESEARCH GRADE MATERIAL

Product Overview
Atomfair S01-Graphite (Gr) Electrode Sheet is single-side coated with 7.2 mg/cm² via a precise wet process. Ideal for Lithium-ion battery R&D, this specialized anode architecture delivers exceptional reliability for electrochemical performance analysis, ensuring cell-to-cell consistency, baseline testing control, variable elimination, and electrolyte validation platform benefits while nesting target graphite electrode sheet price structures to optimize laboratory validation integrity.

Technical Specifications

PARAMETER DETAILS
1. Core Device & Electrochemical Design
Product Code S01

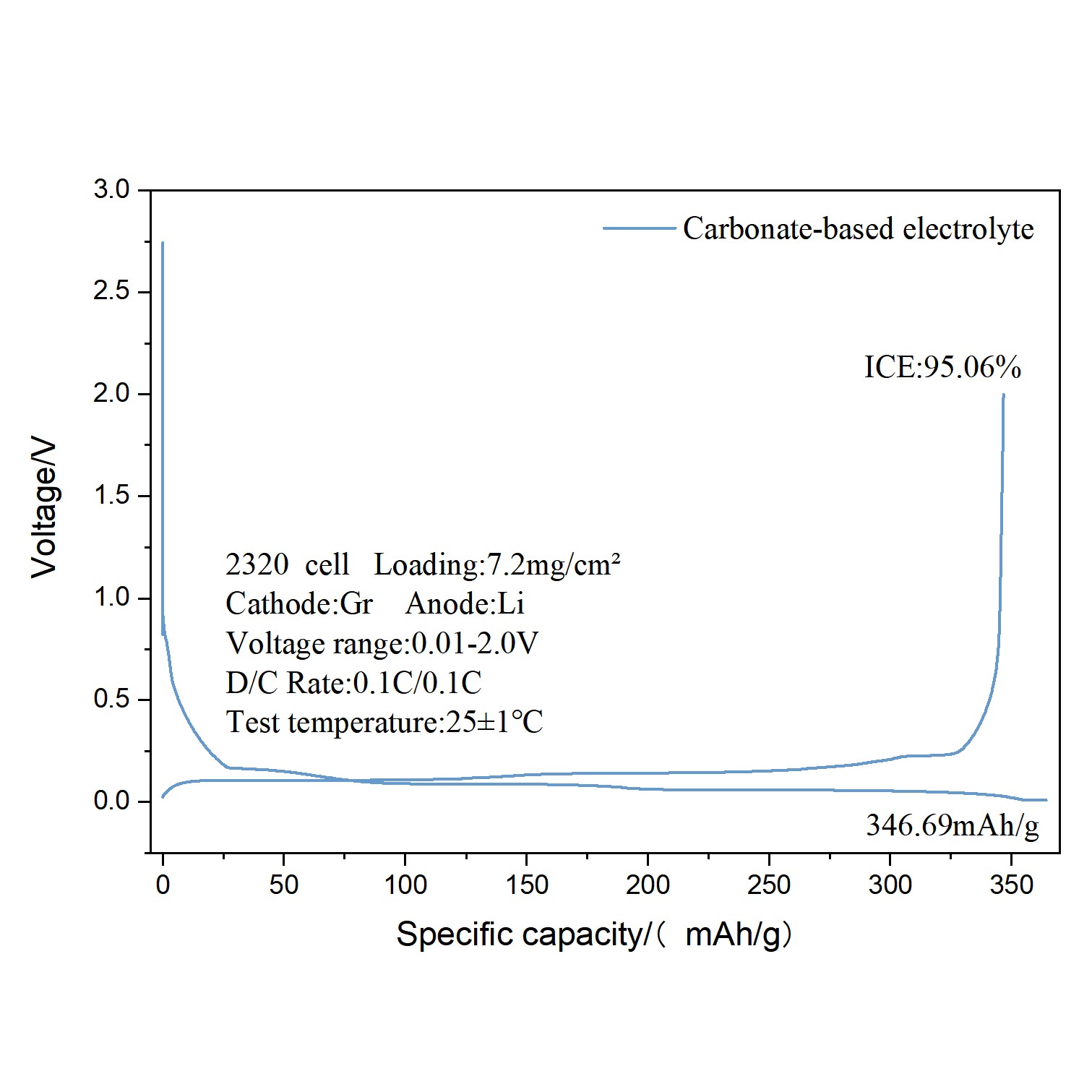

Capacity 350 mAh/g
Coating Process Wet Process
2. Anode Parameters
Coating Material Gr (Graphite)
Active Material Ratio 96.50%
Coating Density 7.2 mg/cm2
Coating Area 152 × 100 mm
Coating Type Single-sided
Compaction Density –
3. Substrate & Foil Parameters
Substrate Material Carbon-coated copper foil matrix crystals
Current Collector Density 5.45 mg/cm2
Substrate Thickness 12 + 0.5 + 0.5 μm
Substrate Size 186 × 100 mm
4. Compliance & Support
Pack Size 5 sheets/pack
Manufacturing Rules Processed under strict ISO 9001 compliance conditions
Alternative Options Explore our related catalog or custom dimensions. For urgent technical custom requests or bulk inquiries, please contact our support team.

Key Features & Advantages
  • Homogeneous Material Purity: Features an optimized active material ratio of 96.50% to deliver a robust, highly uniform graphite distribution across half-cell foils testing matrices.
  • Enhanced Operational Efficiency: Built on premium carbon-coated copper foil substrates to maximize electrical contact, lower charge-transfer resistance, and enhance long-term cycling stability.
  • Optimized Sintering/Microstructure: Precise wet process single-sided coating at 7.2 mg/cm² ensures exceptional mass loading consistency across the 152 × 100 mm active area for repeatable electrochemical testing data.
  • Tailored Solutions: Full customization options available for coating thickness, localized width, and copper foil structural profiles to meet exact experimental specifications.

APPLICATION SCOPE: Lithium-ion battery Research and Development (R&D), laboratory testing, material evaluation, and reliable electrochemical performance analysis.
PACKAGING: 5 electrode sheets per pack, packaged meticulously to ensure consistent quality during laboratory baseline evaluations.
IMPORTANT NOTICE: This product is sold exclusively for laboratory research. Recommended baking protocol: Maintain strictly for 12 hours under vacuum at 100°C to prevent ambient phase contamination or degradation before thermal validation.

TAILORED SOLUTIONS FOR RESEARCH
Contact our engineering team for technical support or official institutional quotations.
EMAIL: inquiry@atomfair.com
Manufacturer: ATOMFAIR LLC
Brand: ATOMFAIR®
Disclaimer: Sold exclusively for laboratory research.

This electrode sheet is sensitive to moisture and mechanical stress. Handle using clean, dry gloves to avoid contaminating the active material surface.

  • Moisture Sensitivity: Store the electrode in a dry, inert atmosphere to prevent oxidation of the graphite and degradation of electrochemical performance.

How does the 96.5% active material ratio affect the specific capacity and rate performance of this graphite anode?

The electrode delivers a specific capacity of 350 mAh/g. The 96.5% active material ratio minimizes binder and conductive additive content, maximizing active sites for lithium intercalation and enhancing gravimetric energy density. However, the 7.2 mg/cm² coating loading may introduce ion transport limitations at high charge/discharge rates, requiring electrolyte optimization.

Is this single-side coated graphite anode compatible with NMC or LCO cathodes in a full coin cell configuration?

This graphite anode is designed for lithium-ion battery R&D and is compatible with common cathode materials such as NMC and LCO. The carbon-coated copper foil current collector, with an areal density of 5.45 mg/cm² and thickness of 12 μm, provides low electrical resistance and good adhesion. Full cell assembly should account for the 152×100 mm coating area and appropriate electrolyte filling to ensure wetting.

What are the required handling and drying procedures for these wet‑process graphite electrodes before cell assembly?

The electrode sheets require vacuum baking at 100°C for 12 hours to remove residual moisture from the wet process. The 12 μm copper foil substrate is thin and flexible, demanding careful handling to avoid creasing or tearing. Store the sheets in an inert, dry atmosphere (e.g., argon-filled glovebox) to prevent oxidation of the carbon coating.

Atomfair S01-Graphite electrode sheet features a single-side coated graphite layer at 7.2 mg/cm² loading with 96.5% active material ratio, tailored for lithium-ion battery R&D. Requires vacuum baking prior to use and is limited to single-side electrode configurations.

Positive

  • High active material ratio: 96.5% active material ratio minimizes binder and conductive additive content, maximizing specific capacity utilization for reliable electrochemical performance analysis.
  • Consistent coating density: Precise wet process at 7.2 mg/cm² provides reproducible electrode loading, enabling consistent cell assembly and comparative testing in lithium-ion battery R&D.

Trade-offs

  • Single-side coating limitation: Single-side coating restricts electrode design to half-cell or anode-only configurations, requiring additional processing steps for full-cell assemblies that demand double-sided electrodes.
  • Vacuum baking requirement: Recommended vacuum baking at 100°C for 12 hours adds pre-treatment time and demands vacuum oven infrastructure before the electrode can be used in cell fabrication.

Every advanced material, component, equipment, and instrument in our catalog is backed by rigorous testing. We maintain strict internal quality management frameworks and align with CE conformity metrics to deliver transparent, reproducible performance data via our public open-science repository.

To request raw batch performance data, submit formal vendor registration paperwork, or execute a fast-turnaround R&D manufacturing loop, contact us at inquiry@atomfair.com.

Item is dispatched under the Atomfair Shipping & Delivery Framework (Free worldwide shipping on orders over $59 USD). Return is governed by the Atomfair Return & Refund Policy (7-day technical return window).
