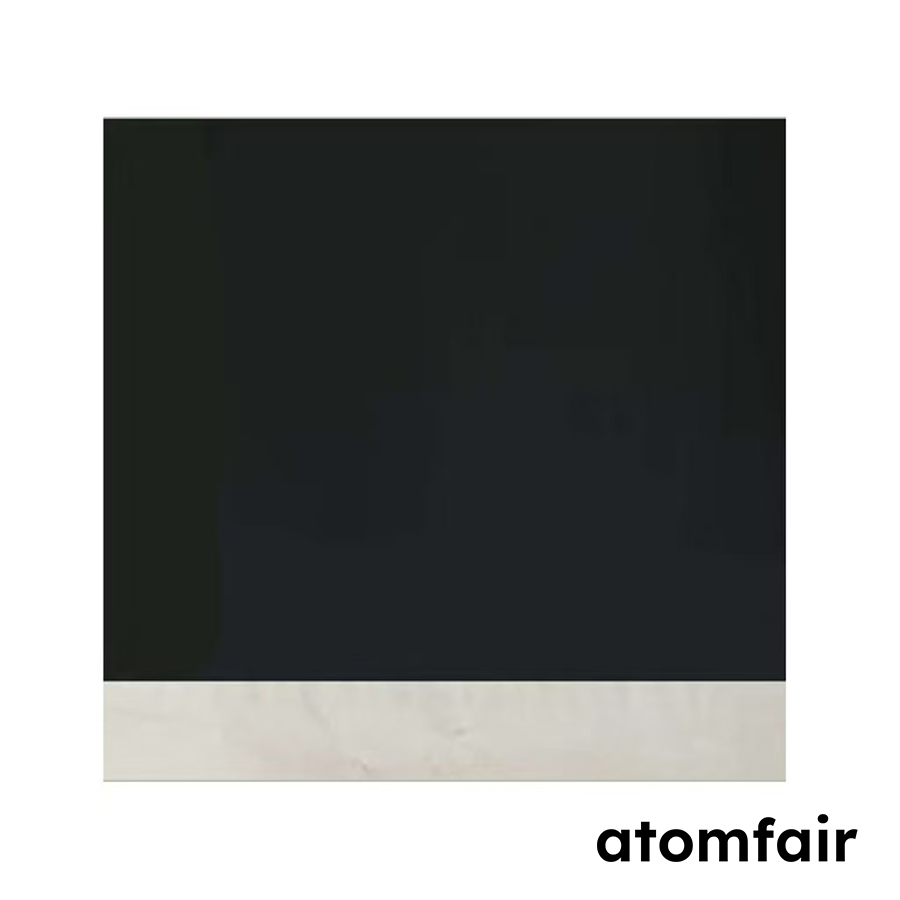

ATOMFAIR Single Sided LFP Cathode Sheet LFP-S01
LFP Single-Sided Cathode 18.8 mg/cm² 5 Pack ATOMFAIR® - Image 2
LFP Single-Sided Cathode 18.8 mg/cm² 5 Pack ATOMFAIR® - Image 3
LFP Single-Sided Cathode 18.8 mg/cm² 5 Pack ATOMFAIR® - Image 4

LFP Single-Sided Cathode 18.8 mg/cm² 5 Pack ATOMFAIR®

$89.00

Institutional Procurement & Supply Compliance: As a verified US supplier, Atomfair accepts formal institutional Purchase Orders (POs), contract billing schedules, and custom procurement loops for university and national laboratories, and corporate R&D departments globally.

Atomfair LFP-S01 single-side coated LFP electrode sheet, 18.8 mg/cm², wet process, 5 pack, research grade. Carbon-coated Al foil substrate. In stock.

Quantity Price
1 – 4 $89.00
5+ $79.00
SKU: AFMSKUCO661
Category:
Tags: , , , , ,
Brands:

Description

ATOMFAIR® LFP-S01 LIFEPO4 (LFP) ELECTRODE SHEET

RESEARCH GRADE MATERIAL

Product Overview
Atomfair LFP-S01 LiFePO4 (LFP) Electrode Sheet is single-side coated with 18.8 mg/cm² via wet process. Ideal for Lithium-ion battery R&D, this specialized material ensures cell-to-cell consistency, baseline testing control, variable elimination, and electrolyte validation platform benefits while nesting target lifepo4 lfp electrode sheet price structures to optimize laboratory validation integrity.

Technical Specifications

PARAMETER DETAILS
1. Core Device & Electrochemical Design
Product Code S01
Capacity 150 mAh/g
Coating Process Wet Process
2. Cathode Parameters
Coating Material LFP (LiFePO4 Lithium Iron Phosphate)
Active Material Ratio 96.24%
Coating Density 18.8 mg/cm2
Coating Area 120 × 90 mm
Coating Type Single-sided
3. Substrate & Foil Parameters
Substrate Material Carbon-coated aluminum foil matrix crystals
Current Collector Density 4.1 mg/cm2
Substrate Thickness 12 + 0.5 + 0.5 μm
Substrate Size 140 × 90 mm
4. Compliance & Support
Pack Size 5 sheets/pack
Manufacturing Rules Processed under strict ISO 9001 compliance conditions
Alternative Options Explore our related catalog or custom dimensions. For urgent technical custom requests or bulk inquiries, please contact our support team.

Key Features & Advantages
  • Homogeneous Material Purity: Formulated with a high 96.24% LFP active phase matrix to maximize targeted energy density during half-cell foils testing and electrochemical performance analysis.
  • Enhanced Operational Efficiency: Built on premium carbon-coated aluminum foil substrates to deliver superior electrical contact, minimize interface contact resistance, and ensure structural chemical stability.
  • Optimized Sintering/Microstructure: Precision wet process single-sided coating coordinates an exceptionally uniform 18.8 mg/cm² loading profile across the 120 × 90 mm active area, securing repeatable data output.
  • Tailored Solutions: Full custom engineering parameters architecture comprehensively supports modifications for coating thickness, targeted width, and substrate foil dimensions.

APPLICATION SCOPE: Lithium-ion battery (LIB) Research & Development, material benchmarking, systematic laboratory testing, and electrochemical performance evaluation.
PACKAGING: 5 electrode sheets per pack (Substrate size 140 × 90 mm), packaged tightly to guarantee strict batch constants and preserve uniform quality parameters during baseline evaluations.
IMPORTANT NOTICE: This product is sold exclusively for laboratory research. Recommended baking protocol: Process and maintain strictly for 12 hours under vacuum at 100°C to completely mitigate moisture contamination or structural degradation before thermal validation testing workflows.

TAILORED SOLUTIONS FOR RESEARCH
Contact our engineering team for technical support or official institutional quotations.
EMAIL: inquiry@atomfair.com
Manufacturer: ATOMFAIR LLC
Brand: ATOMFAIR®
Disclaimer: Sold exclusively for laboratory research.

The electrode is single-side coated on a carbon-coated aluminum foil. Proper orientation is required to prevent short circuits during cell assembly.

  • Orientation constraint: The single-sided coating must face the counter electrode during assembly.

What performance advantage does the carbon-coated aluminum foil substrate provide over uncoated aluminum for LFP cathodes in terms of contact resistance and chemical stability?

The carbon-coated aluminum foil substrate significantly reduces contact resistance and enhances chemical stability compared to standard aluminum foil. The product description states that the carbon coating ensures 'superior electrical contact and chemical stability,' which is critical for maintaining low impedance over extended cycling in lithium-ion cells.

Can the LFP-S01 single-sided cathode be integrated into a full pouch cell design without additional drying if received in its vacuum-baked state?

Yes, the LFP-S01 electrode is delivered after a 12-hour vacuum bake at 100°C, which removes residual moisture and optimizes dryness. Therefore, it can be used directly in pouch cell assembly if transferred immediately to a dry room or glovebox environment to prevent moisture reabsorption.

What are the recommended storage conditions for the LFP-S01 electrode sheets to preserve the vacuum-dried electrode quality before testing?

The LFP-S01 electrode sheets should be stored in a controlled, dry atmosphere such as an argon-filled glovebox or vacuum desiccator to maintain the dryness achieved during the 12-hour vacuum bake at 100°C. Exposure to ambient humidity can degrade the LFP coating and compromise electrochemical performance.

This LFP-S01 single-sided cathode offers a high active material ratio of 96.24% with a coating density of 18.8 mg/cm² on a carbon-coated aluminum substrate, making it suitable for LIB R&D. However, the single-sided coating and 5-sheet pack size require careful experimental planning for full-cell assembly and statistical replication.

Positive

  • High active material ratio for energy density: With 96.24% LFP active material, this electrode maximizes energy density output per unit mass, enabling accurate electrochemical performance analysis in coin cells or half-cells.
  • Carbon-coated aluminum substrate ensures reliable contact: The carbon-coated aluminum foil current collector provides superior adhesion and electrical contact, reducing interfacial resistance and enhancing cycle stability during material evaluation.

Trade-offs

  • Single-sided coating limits cell assembly options: As a single-sided electrode, it is not directly suitable for full-cell pouch or prismatic builds that require double-sided coatings, necessitating additional electrodes or custom stacking.
  • Small pack size restricts statistical replication: The pack contains only 5 sheets, limiting the number of replicate tests or electrode stacks for large-scale electrochemical studies; multiple packs may be needed for statistically robust datasets.
