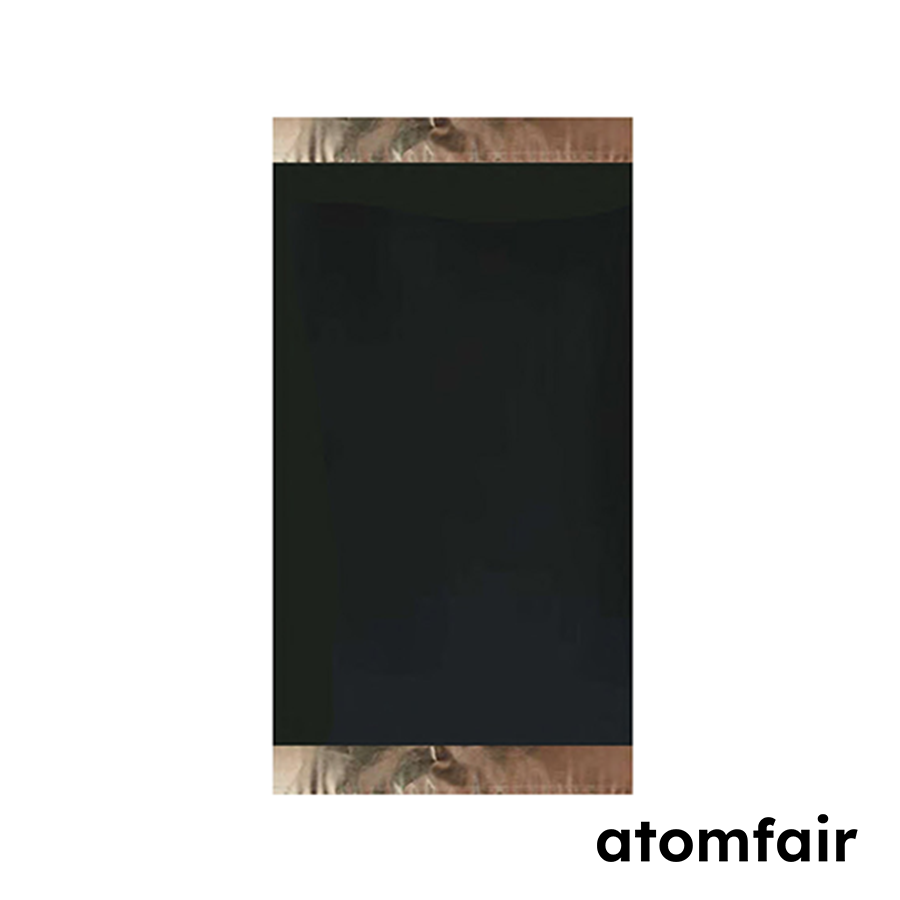

A rectangular ATOMFAIR® silicon carbon Si/C anode electrode sheet with distinctive copper-colored metal borders.
Si/C Single-Sided Anode 5.5 mg/cm² 1350 mAh/g ATOMFAIR® - Image 2
Si/C Single-Sided Anode 5.5 mg/cm² 1350 mAh/g ATOMFAIR® - Image 3
Si/C Single-Sided Anode 5.5 mg/cm² 1350 mAh/g ATOMFAIR® - Image 4

Si/C Single-Sided Anode 5.5 mg/cm² 1350 mAh/g ATOMFAIR®

$89.00

Institutional Procurement & Supply Compliance: As a verified US supplier, Atomfair accepts formal institutional Purchase Orders (POs), contract billing schedules, and custom procurement loops for university and national laboratories, and corporate R&D departments globally.

Research-grade Si/C single-sided anode with 5.5 mg/cm² loading and 1350 mAh/g capacity on carbon-coated copper foil. Ideal for Li-ion R&D. Order now.

Quantity Price
1 – 4 $89.00
5+ $79.00
SKU: AFMSYBLP347
Category:
Tags: , , , , ,
Brands:

Description

ATOMFAIR® SI/C-S01 SILICON CARBON (1350MAH/G) ELECTRODE SHEET

RESEARCH GRADE MATERIAL

Product Overview
The Atomfair Si/C-S01 is a high-capacity Silicon Carbon electrode sheet, single-side coated with 5.5 mg/cm² via a precision wet process. Engineered for next-generation Lithium-ion battery R&D, this material ensures cell-to-cell consistency, baseline testing control, variable elimination, and electrolyte validation platform benefits while nesting target silicon carbon electrode sheet price structures to optimize laboratory validation integrity.

Technical Specifications

PARAMETER DETAILS
1. Core Device & Electrochemical Design
Product Code S01
Capacity 1350 mAh/g
Coating Process Wet Process
2. Anode Parameters
Coating Material Si/C (Silicon Carbon)
Active Material Ratio 90.30%
Coating Density 5.5 mg/cm2
Coating Area 140 × 80 mm
Coating Type Single-sided
3. Substrate & Foil Parameters
Substrate Material Carbon-coated copper foil matrix crystals
Current Collector Density 5.4 mg/cm2
Substrate Thickness 12 + 0.5 + 0.5 μm
Substrate Size 160 × 100 mm
4. Compliance & Support
Pack Size 5 sheets/pack
Manufacturing Rules Processed under strict ISO 9001 compliance conditions
Alternative Options Explore our related catalog or custom dimensions. For urgent technical custom requests or bulk inquiries, please contact our support team.

Key Features & Advantages
  • Homogeneous Material Purity: Si/C composite active material yields a remarkable specific capacity of 1350 mAh/g with an optimized 90.30% ratio to maintain uncompromised performance parameters across half-cell foils testing matrices.
  • Enhanced Operational Efficiency: Built on premium carbon-coated copper foil substrates to maximize electrical contact, optimize interfacial contact mechanics, and dramatically reduce internal resistance.
  • Optimized Sintering/Microstructure: Precision wet process execution maps an exceptionally uniform 5.5 mg/cm² coating loading profile across the single-sided 140 × 80 mm active area, securing repeatable data output.
  • Tailored Solutions: Full custom engineering parameters architecture comprehensively supports flexible options for modifying localized thickness, target coating width, and foil dimensions.

APPLICATION SCOPE: Next-generation Lithium-ion battery R&D, material evaluation protocols, and systematic electrochemical performance analysis characterization testing.
PACKAGING: 5 electrode sheets per pack, packaged tightly to protect the material active state and safeguard batch-to-batch quality constants during laboratory baseline testing.
IMPORTANT NOTICE: This product is sold exclusively for laboratory research. Recommended baking protocol: Process and maintain strictly for 12 hours under vacuum at 100°C to prevent moisture contamination or structural degradation before high-stakes thermal validation testing workflows.

TAILORED SOLUTIONS FOR RESEARCH
Contact our engineering team for technical support or official institutional quotations.
EMAIL: inquiry@atomfair.com
Manufacturer: ATOMFAIR LLC
Brand: ATOMFAIR®
Disclaimer: Sold exclusively for laboratory research.

This electrode sheet requires processing in a moisture-free environment to prevent degradation of the silicon carbon active material. The single-sided coating necessitates careful alignment during cell assembly to avoid short circuits.

  • Moisture Sensitivity: Store and handle the electrode in an inert atmosphere to prevent moisture-induced degradation.
  • Mechanical Handling: Cut the electrode using a precision tool and avoid mechanical stress on the coating to prevent delamination.

What are the performance benefits of using a single-sided Si/C anode with a carbon-coated copper foil substrate compared to double-sided designs?

The single-sided design with carbon-coated copper foil improves interfacial contact and reduces internal resistance, enabling efficient high-capacity operation at 1350 mAh/g. The 5.5 mg/cm² coating density on a single side simplifies half-cell assembly and allows precise control of active material loading for reliable performance analysis.

What are the critical dimensional constraints for integrating the Si/C-S01 electrode into standard coin cells?

The electrode substrate is 160×100 mm with a coating area of 140×80 mm, which allows punching multiple standard coin cell electrodes (e.g., 15 or 19 mm discs). The standardized vacuum baking protocol at 100°C for 12 hours ensures the electrode is ready for immediate integration into half-cell or full-cell assemblies.

What is the required pre-treatment protocol for the Si/C-S01 electrode before electrochemical testing?

The electrode must be vacuum baked at 100°C for 12 hours to remove adsorbed moisture and stabilize the material before use. This standardized protocol, as specified by the manufacturer, ensures consistent performance and is essential for reliable laboratory research.

The Atomfair Si/C-S01 single-sided anode delivers 1350 mAh/g capacity via a silicon‑carbon composite on carbon‑coated copper foil, enabling high‑energy‑density half‑cell studies, but requires a 12‑hour vacuum baking step prior to use and is limited to single‑side electrode configurations.

Positive

  • Ultra‑high specific capacity: Active material delivers 1350 mAh/g, providing a substantial energy density advantage for advanced Li‑ion anode R&D.
  • Carbon‑coated copper foil substrate: The carbon coating on the copper current collector reduces interfacial resistance and improves electrical contact for more reliable electrochemical measurements.

Trade-offs

  • Mandatory vacuum baking protocol: Standard processing requires 12 hours at 100°C under vacuum before use, adding time and infrastructure demands to lab workflows.
  • Single‑side coating limitation: The electrode is coated on one side only, restricting its direct use in full‑cell configurations that typically require double‑side coated anodes.

Every advanced material, component, equipment, and instrument in our catalog is backed by rigorous testing. We maintain strict internal quality management frameworks and align with CE conformity metrics to deliver transparent, reproducible performance data via our public open-science repository.

To request raw batch performance data, submit formal vendor registration paperwork, or execute a fast-turnaround R&D manufacturing loop, contact us at inquiry@atomfair.com.

Item is dispatched under the Atomfair Shipping & Delivery Framework (Free worldwide shipping on orders over $59 USD). Return is governed by the Atomfair Return & Refund Policy (7-day technical return window).
