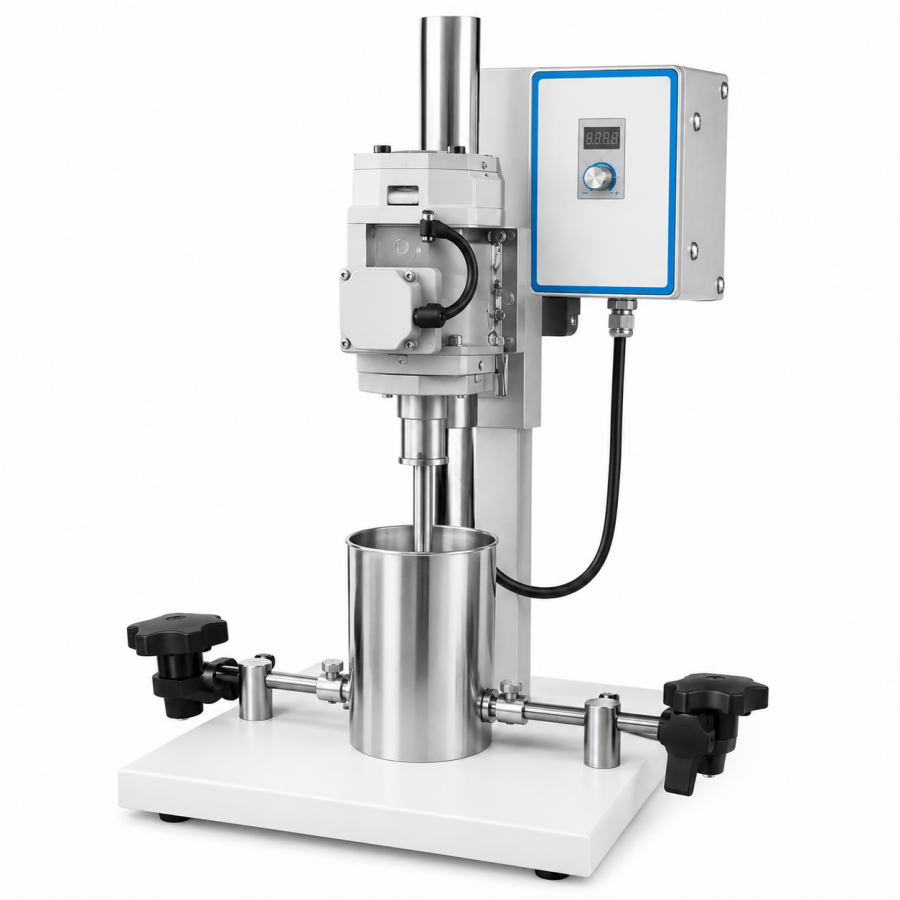

ATOMFAIR SBM-1L LABORATORY STIRRED BALL MILL ULTRASFINE GRINDINGRESEARCH GRADE EQUIPMENT
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
TAILORED SOLUTIONS FOR RESEARCH
Contact our engineering team for technical support or official quotations.
EMAIL: inquiry@atomfair.com
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Manufacturer: Atomfair LLC
Brand: ATOMFAIR®
|
The SBM-1L mill requires connection to a cooling water supply to prevent thermal degradation of temperature-sensitive materials during operation. The grinding chamber and stirring shaft must be cleaned after each use and compatible jar/ball materials selected to avoid cross-contamination.
- Electrical Safety: The mill's 0.37 kW motor operates at 50–1400 rpm and requires proper electrical grounding and overload protection.
- Thermal Management: The jacketed cooling system must be connected to a continuous cooling water supply for extended grinding runs.
- Load Capacity: Do not exceed a maximum material loading of 0.35 L in the 1 L grinding chamber to avoid mechanical stress.
- Media Compatibility: Select grinding jars and balls made of materials such as Al₂O₃, YSZ, or agate that are chemically compatible with the target sample.
- Contamination Prevention: Always clean the stirring shaft and chamber between different materials to prevent cross-contamination.
This procedure outlines the safe initialization and operation of the SBM-1L stirred ball mill for ultrafine grinding. Follow these steps to prepare the mill, load materials, and run a grinding cycle.
Required Equipment: Cooling water supply, Grinding jar and balls, Frequency speed controller, Sample material
- Connect Cooling Water
Connect the jacketed cooling system to an appropriate cooling water supply to enable temperature control. - Select and Load Grinding Media
Select a grinding jar and balls made of materials compatible with your sample, then load the jar with grinding media to 40% of its capacity. - Add Feed Material
Add up to 0.35 L of feed material with particle size ≤5 mm into the grinding jar. - Set Grinding Parameters
Program the desired rotation speed between 50 and 1400 rpm and set the grinding duration using the frequency speed controller. - Start and Monitor Grinding
Press the start button and monitor the process, adjusting residence time to achieve the desired output particle size ≤1 μm. - Unload Ground Material
Use the automatic lifting feature to raise the stirring shaft and tilt the chamber to discharge the product.
What is the maximum feed particle size and achievable fineness for the ATOMFAIR SBM-1L stirred ball mill, and how does the power density compare to conventional ball mills?
The SBM-1L accepts feed material up to ≤5 mm and delivers ultrafine grinding output ≤1 μm. The stirred mill design achieves significantly higher power density than conventional ball mills due to the 0.37 kW motor with frequency speed control operating at 50–1400 rpm, enabling superior energy efficiency and consistent ultrafine grinding from a 1 L total volume with a maximum loading capacity of 0.35 L.
Which grinding jar and ball materials are available for the SBM-1L to avoid cross-contamination with my sample?
The SBM-1L supports nine grinding jar materials—WC-Co, Al₂O₃, Agate, YSZ, SS, PU, Ceramic, and Nylon—and seven grinding ball materials—WC-Co, Al₂O₃, Agate, YSZ, SS, and IC-PU. Grinding jars and balls are ordered separately, and the product description explicitly states to select jar and ball materials compatible with your target material to avoid cross-contamination.
What cooling infrastructure is required for the SBM-1L jacketed grinding chamber during extended operation?
The SBM-1L features a jacketed cooling system that must be connected to an appropriate cooling water supply for precise temperature control during extended grinding operations. This double-walled cooling jacket enables effective heat dissipation, preventing thermal degradation of temperature-sensitive materials and ensuring consistent product quality.
The ATOMFAIR SBM-1L stirred ball mill delivers ultrafine grinding to ≤1 μm from ≤5 mm feed using a 0.37 kW motor with 50–1400 rpm frequency control, but requires separate purchase of grinding jars and media and a dedicated cooling water supply for its jacketed chamber.
Positive
- Ultrafine output from coarse feed: Achieves ≤1 μm particle size from feed material up to 5 mm, enabled by high power density stirred mill design that outperforms conventional ball mills in energy utilization.
- Jacketed cooling for thermal control: Double-walled cooling jacket allows precise temperature regulation during extended runs, preventing thermal degradation of heat-sensitive materials and ensuring consistent product quality.
Trade-offs
- Jars and media ordered separately: Grinding jars and balls are not included with the main unit; users must select compatible materials from nine jar and seven ball options to avoid cross-contamination.
- Requires external cooling water supply: The jacketed cooling system must be connected to an appropriate cooling water source for temperature-controlled operation, adding infrastructure requirements to lab setup.
