ATOMFAIR PBM-100 Planetary Ball Mill 100L 11kW Soil Grinder Large Volume Production Type Research Grade

Soil Planetary Ball Mill PBM-100 100L 11KW ATOMFAIR®

Price range: $21,920.00 through $77,796.00

Institutional Procurement & Supply Compliance: As a verified US supplier, Atomfair accepts formal institutional Purchase Orders (POs), contract billing schedules, and custom procurement loops for university and national laboratories, and corporate R&D departments globally.

PBM-100 soil planetary ball mill with 100L capacity, 11KW motor, 0–240 r/min jar speed, 0.1 μm output, and included 20–200 mesh screener. Order now.

SKU: AFMSQDUT695
Category: ,
Tags:
Brands:

Description

PBM-100 PLANETARY BALL MILL 100L 11KW SOIL GRINDER HEAVY METAL ANALYSIS

LABORATORY GRADE EQUIPMENT

Product Overview
The ATOMFAIR PBM-100 is a Planetary Ball Mill Soil Grinder designed for heavy metal analysis in soil, featuring PBM-100 11KW 100L 4-jar heavy metal analysis with a 326 mm jar holder inner diameter and Φ578 mm revolution diameter at a transmission ratio of 1:1.5. The sealing pressure of the grinding jars is adjustable via a graduated scale. The grinding jars rotate reversely around their own axes while revolving around the turntable axis, causing samples inside to collide and rub against each other at high speed to achieve sample crushing, grinding, mixing, and dispersion. Purpose-built for soil sample preparation ultrafine grinding, this machine delivers output particle sizes as fine as 0.1 μm from soil feed ≤10 mm. The system supports 48-hour continuous operation electric screener at full load, with an electric screener capable of holding seven layers of 200 mm diameter sieves across a 20–200 mesh (20 micron) screening range with digital display and 1400 rpm vibration frequency. Dry grinding, wet grinding, and vacuum grinding modes are all supported. Two or four grinding jars can operate simultaneously. This listing is priced for the main unit only; grinding jars and grinding balls are ordered separately. The PBM series spans from 0.2 L mini models to 200 L production units.

Technical Parameter Table of Planetary Ball Mill
No. Model Style Jar Rotation Speed Jar Holder ID (mm) Motor Power Jar Rev Dia (mm) Overall Dimensions (mm) Net Weight (kg)
1 PBM-0.2 Mini Type 0–1160 r/min 50 90W Φ111 420×260×310 25
2 PBM-0.2S Mini Glove Box Type 0–1160 r/min 50 90W Φ111 Main: 390×220×270
Control: 200×180×240		 29
3 PBM-0.4A Semi-Circular Type 0–870 r/min 80 250W Φ140 530×300×360 34
4 PBM-6 – 0–670 r/min 134 0.75KW Φ234 760×470×580 100
5 PBM-4A Semi-Circular Type 0–670 r/min 134 0.75KW Φ234 760×470×600 85
6 PBM-(8-12) – 0–580 r/min 162 1.5KW Φ275 900×600×640 168
7 PBM-(8-12)A Semi-Circular Type 0–580 r/min 162 1.5KW Φ275 880×560×642 150
8 PBM-16A Semi-Circular Type 0–510 r/min 182 3KW Φ320 950×600×710 205
9 PBM-20 – 0–430 r/min 222 4KW Φ385 1200×790×930 392
10 PBM-40 – 0–390 r/min 250 5.5KW Φ430 1400×880×1070 656
11 PBM-60 – 0–260 r/min (1:1.5) 275 7.5KW Φ490 1600×1070×1250 950
12 PBM-100 – 0–240 r/min (1:1.5) 326 11KW Φ578 1750×1140×1330 1300
13 PBM-200 – 0–215 r/min 460 22KW Φ738 2670×1600×2804

Standard Configuration of Soil Grinding and Screening Machine
Item Description
Main grinding unit (Included in Price) 1 pc
Grinding jars (Order Separately) 4 pcs of 25 L grinding jars
Available Materials: WC-Co  Al₂O₃ Agate YSZ SS  PU Ceramic Nylon
Grinding balls (Order Separately) 40% of the jar capacity
Available Materials: WC-Co Al₂O₃ Agate YSZ SS IC-PU
Electric screener (Included in Price) 1 pc
Round frame sieves set & base (Included in Price) A complete set of round frame sieves (20, 40, 60, 80, 100, 120, 140, 160, 180, 200 mesh) and base

Key Features & Advantages

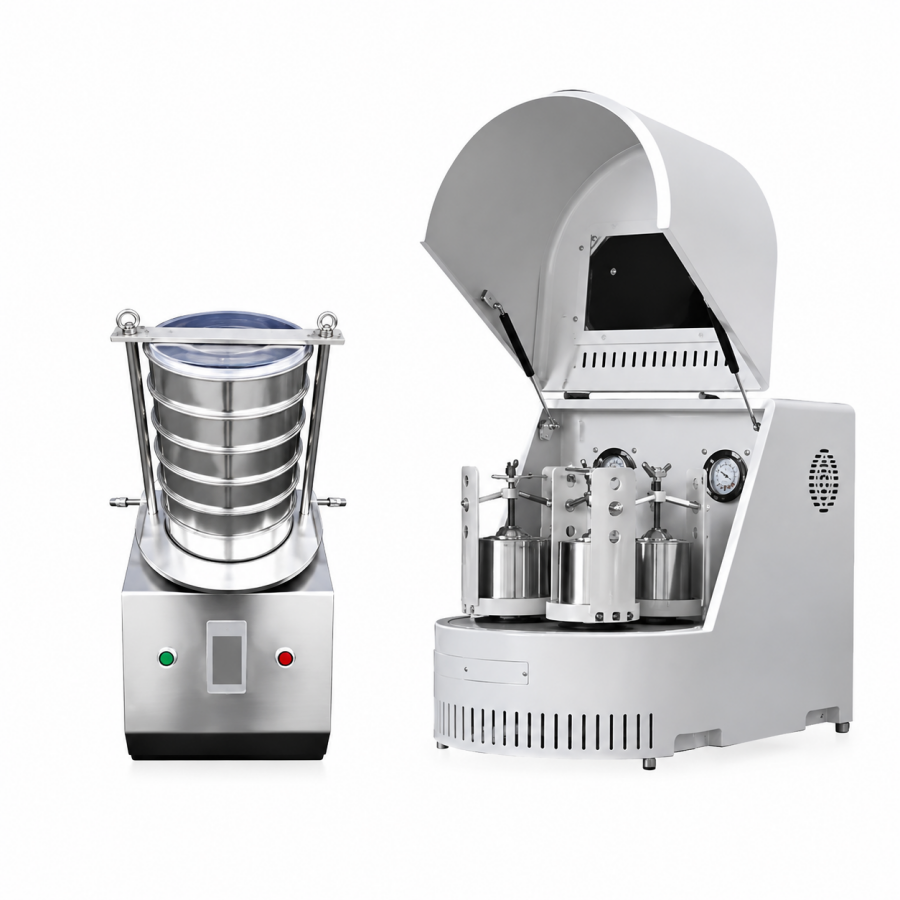

  • Integrated Soil Grinding and Screening System for Heavy Metal Analysis: Complete system includes planetary ball mill and electric screener with seven-layer 200 mm diameter sieves covering 20–200 mesh for comprehensive soil sample preparation.
  • 48-Hour Continuous Operation at Full Load: Industrial-grade 11KW motor with variable frequency controller enables uninterrupted long-duration grinding with automatic forward-reverse commutation and timing for maximum throughput.
  • Ultrafine Output Down to 0.1 μm with Adjustable Sealing Pressure: Graduated scale jar sealing system combined with planetary high-energy impact delivers consistent sub-micron particle refinement from soil samples up to 10 mm.
  • Three Grinding Modes with 4-Jar Simultaneous Operation: Supports dry grinding, wet grinding, and vacuum grinding with two or four 25 L jars operating simultaneously for flexible high-volume sample processing.

APPLICATION SCOPE: Heavy metal analysis in soil samples. Soil sample preparation for geological and environmental testing. Dry grinding, wet grinding, and vacuum grinding applications. Two or four grinding jars can operate simultaneously for high-throughput processing.
PACKAGING: This listing is priced for the PBM-100 main unit only. The standard configuration includes 1 pc grinding host machine, 1 pc electric screener, and a complete set of round frame sieves (20–200 mesh) with base. Grinding jars (4 pcs of 25 L) and grinding balls (1 set) are ordered separately. The PBM series is available from 0.2 L mini models through 200 L production units. Installation guidance and operational training support are provided upon request.
IMPORTANT NOTICE: The listed price is for the PBM-100 main unit only; grinding jars and balls must be ordered separately. The electric screener and sieve set are included in the standard configuration. Select jar and ball materials compatible with your target material to avoid cross-contamination. For detailed installation, operation, and maintenance instructions, consult the user manual prior to first use. If you have specific requirements for other PBM models or custom configurations, please contact us at inquiry@atomfair.com.
TAILORED SOLUTIONS FOR RESEARCH
Contact our engineering team for technical support or official quotations.
EMAIL: inquiry@atomfair.com
Manufacturer: Atomfair LLC
Brand: ATOMFAIR®

The PBM-100 requires a dedicated 220V AC grounded circuit and must not be operated with unsecured or improperly sealed grinding jars. Continuous operation beyond 48 hours may cause overheating; the unit should be placed on a stable, level surface to avoid imbalance during high-speed rotation.

  • Electrical Safety: Ensure the electrical supply is dedicated and grounded, with a circuit breaker rated for the 11KW motor load.
  • Jar Sealing: Gradually tighten the jar sealing screws using the graduated scale to achieve uniform pressure; overtightening may damage the jar threads.
  • Vibration Monitoring: Monitor the mill's vibration during startup; excessive vibration indicates unbalanced load or loose jar mounting.
  • Cooling and Ventilation: Provide at least 30 cm clearance around the motor housing for heat dissipation during prolonged operation.
  • Emergency Stop: Verify the emergency stop button is accessible and functional before each use.

Follow these steps to initialize the mill and perform a grinding run safely. Proper jar sealing and electrical checks must be completed before starting the motor.

Required Equipment: PBM-100 Main Unit, Grinding Jars (25L, appropriate material), Grinding Balls (40% jar volume), Electric Screener (included)

  1. Inspect the Unit
    Inspect the main unit for any visible damage or loose components before connecting power.
  2. Secure the Grinding Jars
    Place the grinding jars onto the jar holders and secure them using the graduated scale adjustment mechanism.
  3. Load Media and Sample
    Fill each jar with grinding balls to approximately 40% of its volume and add the sample material.
  4. Close and Seal Jars
    Close the jar lids and tighten the sealing screws evenly to the torque indicated on the graduated scale.
  5. Set Operating Parameters
    Set the desired revolution speed and continuous operation timer on the variable frequency controller panel.
  6. Start and Monitor Operation
    Press the start button and observe the mill for abnormal noise or vibration during the first minute of operation.
  7. Stop and Cool Down
    After grinding completes, stop the mill and allow the jars to cool before opening to prevent pressure release.

What is the minimum achievable particle size for soil samples in the PBM-100 and what operational parameters enable this performance?

The PBM-100 can grind soil samples from ≤10 mm feed to an output as fine as 0.1 μm. This is enabled by a planetary drive with jar rotation speed of 70–670 r/min and revolution of 35–335 r/min, a transmission ratio of 1:1.5, and adjustable jar sealing pressure via a graduated scale, combined with an 11KW motor supporting 48-hour continuous full-load operation.

Can the PBM-100 handle materials other than soil, and what are the feed size and jar material constraints to avoid cross-contamination?

Yes, the PBM-100 can grind other materials, but feed size must be ≤3 mm (compared to ≤10 mm for soil). To avoid cross-contamination in heavy metal analysis, jar and ball materials must be carefully selected; available options include WC-Co, Al₂O₃, Agate (natural SiO₂ for zero-metal analysis), YSZ, SS, PU, Ceramic, and Nylon, all ordered separately. Dry, wet, and vacuum grinding modes are supported.

What are the weight, dimensions, and electrical requirements for installing the PBM-100 main unit, and what consumables must be ordered separately?

The PBM-100 main unit weighs 1300 kg and measures 1750×1140×1330 mm. It requires an 11KW motor with variable frequency controller. The standard configuration includes the mill, an electric screener, and a complete set of round frame sieves (20–200 mesh) with base, but 4 pcs of 25 L grinding jars and grinding balls (at 40% of jar capacity) must be ordered separately in the appropriate material for the application.

The PBM-100 is a heavy-duty 100-liter planetary ball mill with integrated electric screener, designed for soil sample preparation in heavy metal analysis. Its 11 kW motor enables 48-hour continuous operation and sub-micron grinding, but requires separate purchase of jars and media as well as substantial laboratory infrastructure.

Positive

  • Integrated Grinding and Screening System: Includes a planetary ball mill and a seven-layer electric screener with sieves from 20 to 200 mesh, enabling sequential grinding and particle size analysis for heavy metal soil testing.
  • Ultrafine Output Down to 0.1 μm: Capable of reducing soil feed up to 10 mm to sub-micron particles (0.1 μm) via high-energy planetary impact, essential for heavy metal analysis preparation.

Trade-offs

  • Jars and Media Ordered Separately: Grinding jars (4×25 L) and media must be purchased separately, requiring additional material compatibility assessment to avoid cross-contamination during heavy metal analysis.
  • Large Footprint and Power Requirements: Weighing 1300 kg and requiring 11 kW, 220 VAC supply, the PBM-100 demands dedicated floor space and electrical infrastructure, limiting placement to well-equipped laboratories.

Every advanced material, component, equipment, and instrument in our catalog is backed by rigorous testing. We maintain strict internal quality management frameworks and align with CE conformity metrics to deliver transparent, reproducible performance data via our public open-science repository.

To request raw batch performance data, submit formal vendor registration paperwork, or execute a fast-turnaround R&D manufacturing loop, contact us at inquiry@atomfair.com.

Item is dispatched under the Atomfair Shipping & Delivery Framework (Free worldwide shipping on orders over $59 USD). Return is governed by the Atomfair Return & Refund Policy (7-day technical return window).

Additional information

Weight 1300 kg
Dimensions 175 × 114 × 133 cm
Combinations

Main Unit, Main Unit +4 Al₂O₃ Jars & Media, Main Unit +4 YSZ Jars & Media, Main Unit +4 Agate Jars & Media
