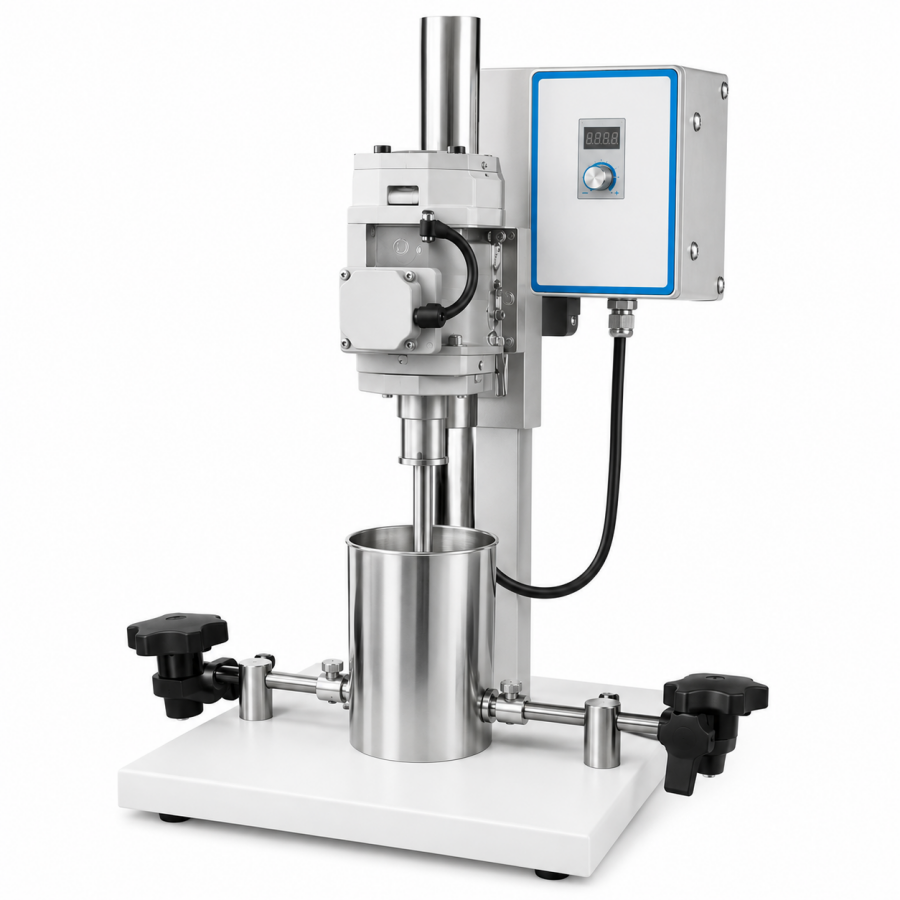

ATOMFAIR SBM-5L LABORATORY STIRRED BALL MILL ULTRASFINE GRINDINGRESEARCH GRADE EQUIPMENT
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
TAILORED SOLUTIONS FOR RESEARCH
Contact our engineering team for technical support or official quotations.
EMAIL: inquiry@atomfair.com
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Manufacturer: Atomfair LLC
Brand: ATOMFAIR®
|
The SBM-5L stirred ball mill requires proper grounding and cooling water connection to prevent electrical hazards and thermal damage. Grinding jars and balls must be selected for material compatibility and securely installed to avoid mechanical imbalance and contamination.
- Feed Material Size: Feed particles must not exceed 10 mm to prevent jamming and damage to the grinding chamber.
- Speed Limit: Operate within the manufacturer-specified speed range of 60–560 rpm to avoid excessive wear or mechanical failure.
- Jar Material Compatibility: Select jar and ball materials that are chemically compatible with the sample to prevent contamination or corrosion.
- Cooling System: Connect the jacketed cooling system to a continuous water supply before starting extended grinding operations to prevent overheating.
- Cleaning and Maintenance: Clean the grinding chamber and stirring shaft after each use to avoid cross-contamination and material buildup.
This procedure covers safe initialization and operation of the stirred ball mill for ultrafine grinding. Follow each step sequentially to ensure equipment integrity and sample quality.
Required Equipment: ATOMFAIR SBM-5L Laboratory Stirred Ball Mill
- Inspect Components
Inspect the grinding jar and balls for cracks or wear before assembly. - Load Media and Sample
Fill the jar to 40% capacity with grinding balls and add sample material up to the maximum load of 1.75 L. - Secure Jar Assembly
Mount the jar securely onto the mill and verify that the chamber tilting mechanism is locked. - Connect Cooling Water
Connect the cooling water hoses to the jacket and confirm flow before starting the motor. - Set Speed and Start
Set the rotation speed between 60 and 560 rpm using the frequency controller and start the mill.
What is the trade-off between the SBM-5L's 0.75 kW motor and its 60–560 rpm speed range for achieving ≤1 μm output from ≤10 mm feed?
The 0.75 kW motor provides higher power density than the 0.37 kW lab-type models (SBM-1L to SBM-3L), enabling processing of larger feed material up to ≤10 mm while maintaining ≤1 μm output. The lower speed range (60–560 rpm vs 50–1400 rpm) reflects the larger 5 L chamber volume and higher torque requirements, optimizing energy transfer for the 1.75 L maximum load. This design delivers superior energy efficiency for ultrafine grinding compared to conventional ball mills.
Which grinding jar and ball material combinations are required to prevent cross-contamination when processing high-purity ceramic powders with the SBM-5L?
The SBM-5L offers nine jar materials (WC-Co, Al₂O₃, Agate, YSZ, SS, PU, Ceramic, Nylon) and seven ball materials (WC-Co, Al₂O₃, Agate, YSZ, SS, IC-PU). For high-purity ceramic processing, match the jar and ball material to the target composition—for example, Al₂O₃ jars with Al₂O₃ balls for alumina grinding, or YSZ components for zirconia-based materials—to avoid introducing foreign elements. Grinding jars and balls are ordered separately and must be selected based on compatibility with the target material.
What infrastructure is required for the jacketed cooling system on the SBM-5L to maintain temperature control during prolonged grinding?
The jacketed cooling system requires connection to an appropriate external cooling water supply. The double-walled chamber circulates water to dissipate heat during extended grinding operations, preventing thermal degradation of temperature-sensitive materials. Users must ensure a compatible water source and flow rate as specified in the user manual; the system is not self-contained and depends on facility cooling infrastructure.
The ATOMFAIR SBM-5L is a laboratory stirred ball mill offering ultrafine grinding down to 1 μm from feed material up to 10 mm, driven by a 0.75 kW motor with frequency speed control and jacketed cooling for temperature management. Note that grinding jars and balls are ordered separately and external cooling water supply is required, which adds to initial setup complexity.
Positive
- Ultrafine Grinding with High Energy Efficiency: The stirred mill design achieves significantly higher power density than conventional ball mills, enabling consistent ultrafine grinding to ≤1 μm particle size from feed material as coarse as 10 mm, with frequency speed control for process optimization.
- Precise Temperature Control via Jacketed Cooling: The double-walled cooling jacket effectively dissipates heat during extended grinding, preventing thermal degradation of temperature-sensitive materials and ensuring consistent product quality.
Trade-offs
- Separate Procurement of Grinding Media Required: Grinding jars and balls are not included and must be ordered separately, requiring additional specification and lead time for compatible materials to avoid cross-contamination.
- External Cooling Water Infrastructure Needed: The jacketed cooling system requires connection to an appropriate cooling water supply, adding an infrastructure dependency for temperature-controlled operation.
