ATOMFAIR SPBM-8A Lateral Planetary Ball Mill 8L 1.5kW 0-580 rpm 4x2L Jars Research Grade

Planetary Ball Mill SPBM-8A 8 L 4-Station ATOMFAIR®

Price range: $3,416.00 through $13,120.00

Institutional Procurement & Supply Compliance: As a verified US supplier, Atomfair accepts formal institutional Purchase Orders (POs), contract billing schedules, and custom procurement loops for university and national laboratories, and corporate R&D departments globally.

SPBM-8A 8 L vertical planetary ball mill with 4 stations, 1.5 kW motor, 0–290 rpm revolution speed, and 1–9999 min programmable timing. Order now.

SKU: AFPBM812
Category: ,
Tags:
Brands:

Description

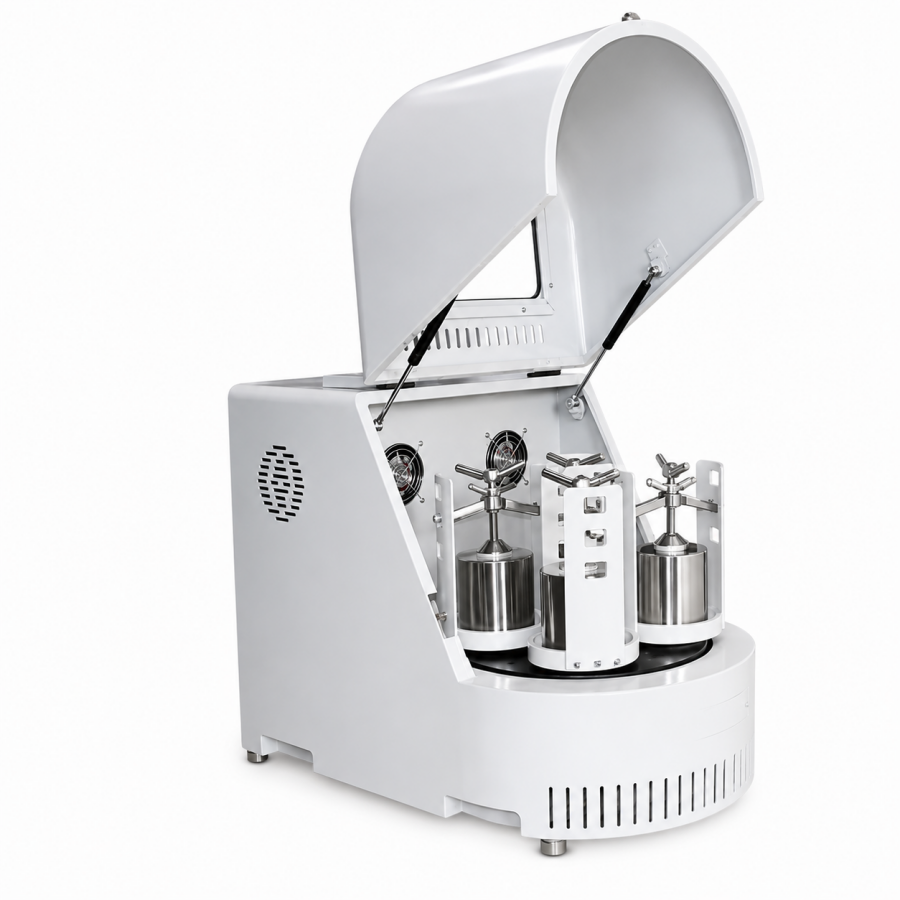

SPBM-8A LATERAL PLANETARY BALL MILL (LABORATORY TYPE)

LABORATORY & PRODUCTION GRADE EQUIPMENT

Product Introduction
SPBM-8A is a compact laboratory and production-type lateral planetary ball mill designed for mixing, ultra-fine grinding, small sample preparation, new product development, and small-batch production of high-tech materials. The SPBM series features a compact design with complete functionality, high grinding efficiency, and low operating noise—making it the core equipment for preparing experimental powder samples in universities, research institutes, and enterprise R&D laboratories. With a single run capable of simultaneously preparing four samples and compatibility with vacuum grinding jars for closed-environment material grinding, SPBM-8A offers versatility for diverse research applications. Key specifications include a total volume of 8 L, four standard 2 L grinding jars, a net weight of 150 kg, overall dimensions of 880×560×642 mm, 1.5 kW motor power, adjustable planetary disk speed of 0–290 rpm, jar rotation speed of 0–580 rpm at a 1:2 speed ratio, and a 220V 50Hz single-phase power supply with variable frequency stepless speed regulation, timing, and forward-reverse cycle control.

Technical Parameters – Basic Configuration
Model Total Volume Single Jar Capacity Jar Qty Net Weight (kg) Dimensions (mm)
SPBM-0.4A 0.4L 100mL 4 29 500×300×340
SPBM-1A 1L 250mL 4 85 760×470×600
SPBM-2A 2L 500mL 4 85 760×470×600
SPBM-4A 4L 1000mL 4 85 760×470×600
SPBM-6A 6L 1.5L 4 85 760×470×600
SPBM-8A 8L 2L 4 150 880×560×642
SPBM-10A 10L 2.5L 4 150 880×560×642
SPBM-12A 12L 3L 4 150 880×560×642
SPBM-16A 16L 4L 4 205 950×600×710

Technical Parameters – Performance
Model Power Supply Supply Type Motor Power (kW) Speed Control Timing (min) Fwd/Rev Cycle (min) Disk Speed (rpm) Jar Speed (rpm) Speed Ratio Noise (dB)
SPBM-0.4A 220V 50Hz Single 0.25 VFD 1–9999 1–999 0–435 0–870 1:2 58±5
SPBM-1A 220V 50Hz Single 0.75 VFD 1–9999 1–999 0–335 0–810 1:2 60±5
SPBM-2A 220V 50Hz Single 0.75 VFD 1–9999 1–999 0–335 0–810 1:2 60±5
SPBM-4A 220V 50Hz Single 0.75 VFD 1–9999 1–999 0–335 0–810 1:2 60±5
SPBM-6A 220V 50Hz Single 0.75 VFD 1–9999 1–999 0–335 0–670 1:2 60±5
SPBM-8A 220V 50Hz Single 1.5 VFD 1–9999 1–999 0–290 0–580 1:2 60±5
SPBM-10A 220V 50Hz Single 1.5 VFD 1–9999 1–999 0–290 0–580 1:2 60±5
SPBM-12A 220V 50Hz Single 1.5 VFD 1–9999 1–999 0–290 0–580 1:2 60±5
SPBM-16A 380V 50Hz Three 3 VFD 1–9999 1–999 0–255 0–510 1:2 65±5

Standard Configuration
Item Description
Main Grinding Unit 1 pc (Included in Price)
Grinding Jars (Order Separately) 4 pcs of 2 L grinding jars (Order Separately)
Available Materials: WC-Co · Al₂O₃ · Agate · YSZ · SS · PU · Ceramic · Nylon
Grinding Balls (Order Separately) 40% of the jar capacity (Order Separately)
Available Materials: WC-Co · Al₂O₃ · Agate · YSZ · SS · IC-PU

Application Details
  • Materials Science Research: Nanomaterials, composite materials, ultra-fine metal/non-metal powder preparation.
  • Pharmaceutical Field: Drug ingredient mixing, cell disruption, biological sample pretreatment.
  • Ceramics & Glass Industry: Uniform raw material dispersion, ceramic slurry preparation (kaolin, etc.).
  • Electronics & Metallurgy: Fine grinding of metal powders, semiconductor substrates, magnetic materials.
  • Environmental & Agriculture: Soil/geological sample testing, solid waste treatment, agricultural product quality analysis.

Product Features
  • High Grinding Efficiency: Compound planetary motion combining revolution and rotation delivers high energy density, far superior to traditional grinding equipment.
  • Uniform Particle Size: Three-dimensional motion trajectory ensures thorough material mixing, narrow particle size distribution, with minimum output particle size down to 0.1μm.
  • Multiple Grinding Modes: Supports both dry and wet grinding processes, compatible with various jar materials including stainless steel, alumina, polyurethane, and more.
  • Safe & Stable Operation: Equipped with safety interlock switches and motor overload protection, low-noise operation fully complies with laboratory safety standards.
  • Intelligent Control: Variable frequency stepless speed regulation, timing control, forward-reverse cycle, LED digital display, programmable operation for high experimental repeatability.

PACKAGING: This listing is priced for the SPBM-8A main unit only. The standard configuration includes 1 pc grinding host machine with variable frequency drive, timing control, and forward-reverse cycle functions. Grinding jars and grinding balls are ordered separately. Installation guidance and operational training support are provided upon request.
IMPORTANT NOTICE: The listed price is for the main unit; grinding jars and balls must be ordered separately. Select jar and ball materials compatible with your target material to avoid cross-contamination. The maximum jar loading capacity is two-thirds of jar volume. For detailed installation, operation, and maintenance instructions, consult the user manual prior to first use. If you have specific requirements for other SPBM models or custom configurations, please contact us at inquiry@atomfair.com.
TAILORED SOLUTIONS FOR RESEARCH
Contact our engineering team for technical support or official quotations.
EMAIL: inquiry@atomfair.com
Manufacturer: Atomfair LLC
Brand: ATOMFAIR®

The SPBM-8A mill requires the safety lock switch to be engaged before operation and overload protection to be active. Grinding jars and balls must be selected for material compatibility to avoid cross-contamination, and vacuum jar sealing must be verified for inert atmosphere grinding.

  • Safety Lock Engagement: The safety lock switch must be engaged before any grinding cycle begins.
  • Material Compatibility: Select grinding jar and ball materials that are compatible with the target sample to prevent cross-contamination.
  • Vacuum Jar Sealing: For vacuum atmosphere grinding, ensure the optional vacuum grinding jar is properly sealed before initiating the cycle.
  • Overload Protection: The mill's overload protection system automatically halts operation if electrical or mechanical overload is detected.
  • Power Supply Requirements: The mill requires a 220V/50Hz single-phase electrical supply with a 1.5 kW rated motor for proper operation.

This procedure describes the initialization and safe operation of the SPBM-8A mill for grinding experiments. Follow the steps below to ensure proper setup and safe grinding.

Required Equipment: ATOMFAIR SPBM-8A Planetary Ball Mill, Grinding Jars, Grinding Balls, Vacuum Grinding Jar (optional)

  1. Inspect Safety Lock
    Inspect the mill and confirm the safety lock switch is engaged before operation.
  2. Select Compatible Materials
    Select grinding jars and balls that are compatible with the target material to avoid cross-contamination.
  3. Verify Vacuum Jar Sealing
    If using vacuum atmosphere grinding, verify the optional vacuum jar is properly sealed before loading.
  4. Load Sample and Balls
    Load the sample material and grinding balls into the selected jars.
  5. Secure Jars on Platform
    Secure the loaded jars onto the four-station platform of the mill.
  6. Set Program Parameters
    Set the total grinding time between 1 and 9999 minutes and the bidirectional rotation interval between 1 and 999 minutes using the control panel.
  7. Start Grinding Cycle
    Start the grinding cycle and monitor the mill for normal operation.

Does the SPBM-8A's larger 8 L total volume reduce the maximum achievable grinding speed compared to smaller models, and what is the impact on particle size output?

Yes, the SPBM-8A has a lower maximum jar rotation speed of 580 rpm (revolution speed 0–290 rpm) compared to 870 rpm on the SPBM-0.4A, due to the larger jar capacity (1–2 L per jar). However, the fixed 1:2 revolution-to-rotation ratio and frequency conversion stepless speed regulation maintain consistent planetary motion, and the mill can still achieve minimum particle sizes down to 0.1 μm.

Can the SPBM-8A be used for wet grinding of air-sensitive materials, and what jar material is recommended to avoid contamination?

Yes, the SPBM-8A supports both dry and wet grinding processes. For air-sensitive materials, optional vacuum grinding jars up to 1500 mL can be used. Standard jar materials available include Al₂O₃, polyurethane, PTFE, ceramic, stainless steel, and nylon; the appropriate material should be selected based on chemical compatibility to avoid cross-contamination.

What are the electrical and physical installation requirements for the SPBM-8A, and what safety interlocks are integrated?

The SPBM-8A requires a 220V/50Hz single-phase power supply with a 1.5 kW motor. The unit weighs 150 kg and has overall dimensions of 880×560×642 mm. Safety features include a safety lock switch and overload protection; the lock must be engaged before operation to comply with laboratory safety standards.

The ATOMFAIR SPBM-8A (8 L total volume) vertical planetary ball mill delivers ultrafine grinding down to 0.1 μm with four-station parallel processing, but necessitates separate ordering of grinding jars and balls and optional vacuum jars for inert atmosphere applications.

Positive

  • Ultrafine grinding down to 0.1 μm: Planetary motion with revolution-to-rotation ratio of 1:2 delivers high energy density achieving minimum particle sizes of 0.1 μm for advanced material research.
  • Four-station parallel sample processing: Simultaneous preparation of up to four samples in a single experiment increases throughput for comparative studies in material science.

Trade-offs

  • Grinding media ordered separately: The main unit does not include grinding jars or balls; these consumables must be purchased separately with careful material compatibility selection to avoid cross-contamination.
  • Optional vacuum jars required for inert atmosphere: Vacuum or inert gas grinding capability requires purchase of optional vacuum grinding jars and proper sealing procedures before operation.

Every advanced material, component, equipment, and instrument in our catalog is backed by rigorous testing. We maintain strict internal quality management frameworks and align with CE conformity metrics to deliver transparent, reproducible performance data via our public open-science repository.

To request raw batch performance data, submit formal vendor registration paperwork, or execute a fast-turnaround R&D manufacturing loop, contact us at inquiry@atomfair.com.

Item is dispatched under the Atomfair Shipping & Delivery Framework (Free worldwide shipping on orders over $59 USD). Return is governed by the Atomfair Return & Refund Policy (7-day technical return window).

Additional information

Weight 168 kg
Dimensions 90 × 60 × 64 cm
Combinations

Main Unit, Main Unit +4 Al₂O₃ Jars & Media, Main Unit +4 YSZ Jars & Media, Main Unit +4 Agate Jars & Media
