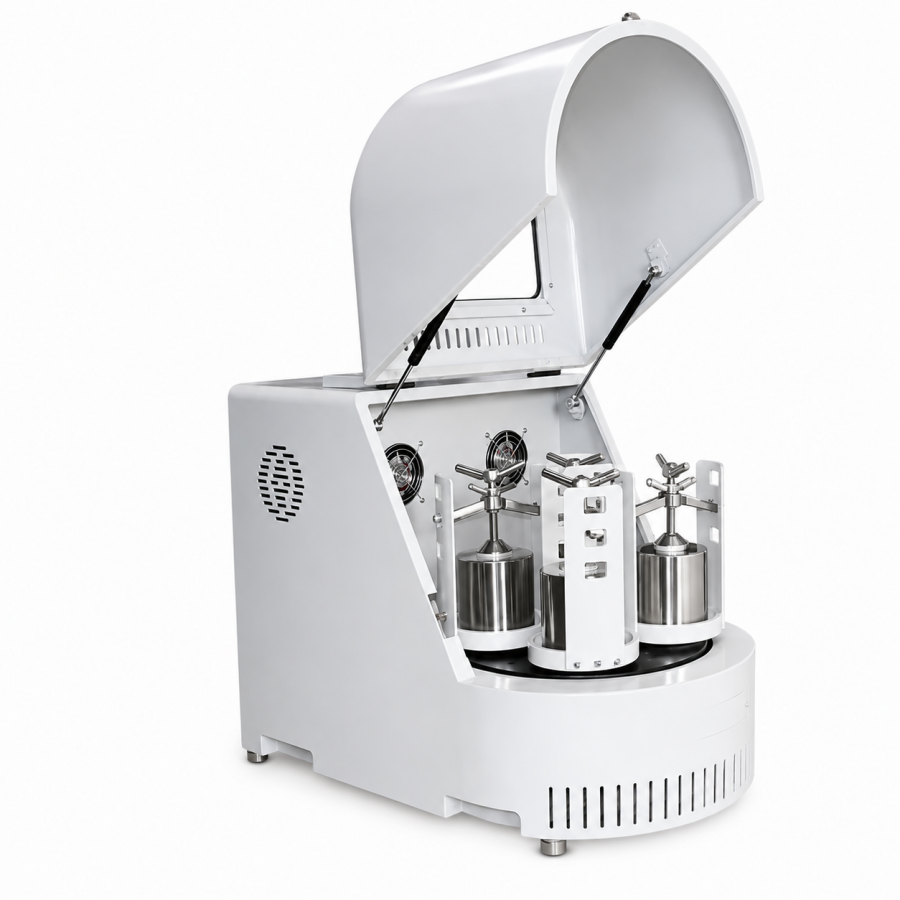

ATOMFAIR SPBM-1A Lateral Planetary Ball Mill 1L 0.75kW 0-810 rpm 4-Station Research Grade

SPBM-1A 4-Station Planetary Ball Mill 1 L ATOMFAIR®

Price range: $2,243.00 through $4,295.00

Institutional Procurement & Supply Compliance: As a verified US supplier, Atomfair accepts formal institutional Purchase Orders (POs), contract billing schedules, and custom procurement loops for university and national laboratories, and corporate R&D departments globally.

1 L SPBM-1A vertical planetary ball mill with four stations, 0–335 rpm revolution, 0–810 rpm jar speed, 0.75 kW motor, and 1–9999 min timing.

SKU: AFPBM02S
Category: ,
Brands:

Description

SPBM-1A LATERAL PLANETARY BALL MILL (LABORATORY TYPE)

LABORATORY GRADE EQUIPMENT

Product Introduction
SPBM-1A is a compact laboratory-type lateral planetary ball mill designed for mixing, ultra-fine grinding, small sample preparation, new product development, and small-batch production of high-tech materials. The SPBM series features a compact design with complete functionality, high grinding efficiency, and low operating noise—making it the core equipment for preparing experimental powder samples in universities, research institutes, and enterprise R&D laboratories. With a single run capable of simultaneously preparing four samples and compatibility with vacuum grinding jars for closed-environment material grinding, SPBM-1A offers versatility for diverse research applications. Key specifications include a total volume of 1 L, four standard 250 mL grinding jars, a net weight of 85 kg, overall dimensions of 760×470×600 mm, 0.75 kW motor power, adjustable planetary disk speed of 0–335 rpm, jar rotation speed of 0–810 rpm at a 1:2 speed ratio, and a 220V 50Hz single-phase power supply with variable frequency stepless speed regulation, timing, and forward-reverse cycle control.

Technical Parameters – Basic Configuration
Model Total Volume Single Jar Capacity Jar Qty Net Weight (kg) Dimensions (mm)
SPBM-0.4A 0.4L 100mL 4 29 500×300×340
SPBM-1A 1L 250mL 4 85 760×470×600
SPBM-2A 2L 500mL 4 85 760×470×600
SPBM-4A 4L 1000mL 4 85 760×470×600
SPBM-6A 6L 1.5L 4 85 760×470×600
SPBM-8A 8L 2L 4 150 880×560×642
SPBM-10A 10L 2.5L 4 150 880×560×642
SPBM-12A 12L 3L 4 150 880×560×642
SPBM-16A 16L 4L 4 205 950×600×710

Technical Parameters – Performance
Model Power Supply Supply Type Motor Power (kW) Speed Control Timing (min) Fwd/Rev Cycle (min) Disk Speed (rpm) Jar Speed (rpm) Speed Ratio Noise (dB)
SPBM-0.4A 220V 50Hz Single 0.25 VFD 1–9999 1–999 0–435 0–870 1:2 58±5
SPBM-1A 220V 50Hz Single 0.75 VFD 1–9999 1–999 0–335 0–810 1:2 60±5
SPBM-2A 220V 50Hz Single 0.75 VFD 1–9999 1–999 0–335 0–810 1:2 60±5
SPBM-4A 220V 50Hz Single 0.75 VFD 1–9999 1–999 0–335 0–810 1:2 60±5
SPBM-6A 220V 50Hz Single 0.75 VFD 1–9999 1–999 0–335 0–670 1:2 60±5
SPBM-8A 220V 50Hz Single 1.5 VFD 1–9999 1–999 0–290 0–580 1:2 60±5
SPBM-10A 220V 50Hz Single 1.5 VFD 1–9999 1–999 0–290 0–580 1:2 60±5
SPBM-12A 220V 50Hz Single 1.5 VFD 1–9999 1–999 0–290 0–580 1:2 60±5
SPBM-16A 380V 50Hz Three 3 VFD 1–9999 1–999 0–255 0–510 1:2 65±5

Standard Configuration
Item Description
Main Grinding Unit 1 pc
Grinding Jars (Order Separately) 4 pcs of 250 mL grinding jars (Order Separately)
Available Materials: WC-Co · Al₂O₃ · Agate · YSZ · SS · PU · Ceramic · Nylon
Grinding Balls (Order Separately) 40% of the jar capacity (Order Separately)
Available Materials: WC-Co · Al₂O₃ · Agate · YSZ · SS · IC-PU

Application Details
  • Materials Science Research: Nanomaterials, composite materials, ultra-fine metal/non-metal powder preparation.
  • Pharmaceutical Field: Drug ingredient mixing, cell disruption, biological sample pretreatment.
  • Ceramics & Glass Industry: Uniform raw material dispersion, ceramic slurry preparation (kaolin, etc.).
  • Electronics & Metallurgy: Fine grinding of metal powders, semiconductor substrates, magnetic materials.
  • Environmental & Agriculture: Soil/geological sample testing, solid waste treatment, agricultural product quality analysis.

Product Features
  • High Grinding Efficiency: Compound planetary motion combining revolution and rotation delivers high energy density, far superior to traditional grinding equipment.
  • Uniform Particle Size: Three-dimensional motion trajectory ensures thorough material mixing, narrow particle size distribution, with minimum output particle size down to 0.1μm.
  • Multiple Grinding Modes: Supports both dry and wet grinding processes, compatible with various jar materials including stainless steel, alumina, polyurethane, and more.
  • Safe & Stable Operation: Equipped with safety interlock switches and motor overload protection, low-noise operation fully complies with laboratory safety standards.
  • Intelligent Control: Variable frequency stepless speed regulation, timing control, forward-reverse cycle, LED digital display, programmable operation for high experimental repeatability.

PACKAGING: This listing is priced for the SPBM-1A main unit only. The standard configuration includes 1 pc grinding host machine with variable frequency drive, timing control, and forward-reverse cycle functions. Grinding jars and grinding balls are ordered separately. Installation guidance and operational training support are provided upon request.
IMPORTANT NOTICE: The listed price is for the main unit; grinding jars and balls must be ordered separately. Select jar and ball materials compatible with your target material to avoid cross-contamination. The maximum jar loading capacity is two-thirds of jar volume. For detailed installation, operation, and maintenance instructions, consult the user manual prior to first use. If you have specific requirements for other SPBM models or custom configurations, please contact us at inquiry@atomfair.com.
TAILORED SOLUTIONS FOR RESEARCH
Contact our engineering team for technical support or official quotations.
EMAIL: inquiry@atomfair.com
Manufacturer: Atomfair LLC
Brand: ATOMFAIR®

The SPBM-1A must be operated with the safety lock switch engaged and within the rated electrical supply of 220V/50Hz single-phase. Vacuum atmosphere grinding requires properly sealed optional vacuum grinding jars and inert gas supply.

  • Electrical Supply Constraint: The unit requires a 220V/50Hz single-phase grounded power supply with a 0.75 kW motor and overload protection.
  • Safety Interlock: The safety lock switch must be engaged before starting the grinding cycle.
  • Vacuum Sealing: For vacuum atmosphere grinding, ensure the optional vacuum grinding jar is properly sealed and connected to a vacuum source.
  • Jar Compatibility: Only use grinding jars within the 50–500 mL range and compatible materials (Al₂O₃, PU, PTFE, ceramic, SS, nylon) to avoid mechanical imbalance.
  • Speed Regulation: The planetary revolution speed must not exceed 335 rpm and jar rotation speed 810 rpm to maintain safe operation.

This procedure describes the initialization, loading, and safe operation of the planetary ball mill for ultrafine grinding. Follow these steps to ensure proper containment and avoid mechanical or electrical hazards.

Required Equipment: SPBM-1A main grinding unit, Grinding jars (50–500 mL, compatible material), Grinding balls (compatible material and size), Optional vacuum grinding jar

  1. Inspect and prepare the unit
    Inspect the unit for any damage and ensure the power cord is connected to a 220V/50Hz grounded outlet.
  2. Load jars and balls
    Select grinding jars and balls compatible with your material and load the jars with the sample and balls.
  3. Secure jars
    Secure the jars onto the four-station platform and verify the locking mechanism is engaged.
  4. Close and lock lid
    Close the safety lid and confirm the safety lock switch is activated.
  5. Set grinding parameters
    Set the desired grinding time, speed, and bidirectional rotation intervals on the programmable control panel.
  6. Start grinding cycle
    Press the start button to begin the grinding cycle and monitor the operation.
  7. Stop and retrieve samples
    Allow the unit to stop completely before opening the lid and removing jars.

How does the fixed 1:2 revolution-to-rotation ratio of the SPBM-1A affect its grinding performance compared to variable-ratio planetary ball mills?

The fixed 1:2 ratio (revolution speed 0–335 rpm, jar speed 0–810 rpm) delivers a consistent high-energy density and three-dimensional movement trajectory, achieving ultrafine grinding down to 0.1 μm. This fixed ratio simplifies process reproducibility but offers no tunability for material-specific energy input; for applications requiring different impact-to-friction ratios, the SPBM-1A cannot adjust the ratio without changing the model.

What jar and ball material options are available for the SPBM-1A, and how should researchers select combinations to prevent cross-contamination?

The SPBM-1A supports jar materials including Al₂O₃, PU, PTFE, ceramic, stainless steel, and nylon, and ball materials including WC-Co, Al₂O₃, PU-Fe, agate, YSZ, HCCI, and 304SS, all ordered separately. Researchers must select jar and ball materials chemically compatible with the target sample to avoid contamination; for example, use agate for silica-free grinding or YSZ for high-wear-resistance applications. The mill can run both dry and wet processes with any of these materials.

What infrastructure and safety measures are required for vacuum atmosphere grinding with the SPBM-1A?

The SPBM-1A supports vacuum grinding only with optional 50–250 mL vacuum grinding jars and requires a safety interlock that must be engaged before operation. The mill operates on 220V/50Hz single-phase power with a 0.75 kW motor, and the safety lock switch and overload protection must be verified prior to use. For air-sensitive materials, the vacuum jar must be properly sealed before initiating the grinding cycle to maintain inert atmosphere integrity.

This compact lateral planetary ball mill offers high-energy compound planetary motion for ultra-fine grinding down to 0.1 μm, with variable frequency drive and programmable cycles. However, jars and media are sold separately, and jar loading is limited to two-thirds capacity, requiring careful planning for lab deployment.

Positive

  • High grinding efficiency and fine particle size: Compound planetary motion delivers high energy density, achieving minimum output particle size down to 0.1 μm with narrow size distribution, superior to traditional milling equipment.
  • Intelligent programmable control: Variable frequency stepless speed regulation, timing (1–9999 min), forward-reverse cycle (1–999 min), and LED digital display enable precise, repeatable operation for diverse protocols including dry and wet grinding.

Trade-offs

  • Jars and grinding media not included: The main unit is sold without grinding jars or balls; these must be ordered separately based on material compatibility, adding upfront procurement steps and cost.
  • Limited jar loading capacity: Maximum jar filling is two-thirds of jar volume per the manufacturer's instruction, constraining batch size and requiring careful charge calculation to avoid overloading.

Every advanced material, component, equipment, and instrument in our catalog is backed by rigorous testing. We maintain strict internal quality management frameworks and align with CE conformity metrics to deliver transparent, reproducible performance data via our public open-science repository.

To request raw batch performance data, submit formal vendor registration paperwork, or execute a fast-turnaround R&D manufacturing loop, contact us at inquiry@atomfair.com.

Item is dispatched under the Atomfair Shipping & Delivery Framework (Free worldwide shipping on orders over $59 USD). Return is governed by the Atomfair Return & Refund Policy (7-day technical return window).

Additional information

Weight 29 kg
Dimensions 39 × 22 × 27 cm
Combinations

Main Unit, Main Unit +4 Al₂O₃ Jars & Media, Main Unit +4 YSZ Jars & Media, Main Unit +4 Agate Jars & Media
