ATOMFAIR SPBM-16A Lateral Planetary Ball Mill 16L 3kW 0-510 rpm 4x4L Jars Research Grade

Planetary Ball Mill SPBM-16A 16 L 3 kW Vertical ATOMFAIR®

Price range: $6,133.00 through $27,541.00

Institutional Procurement & Supply Compliance: As a verified US supplier, Atomfair accepts formal institutional Purchase Orders (POs), contract billing schedules, and custom procurement loops for university and national laboratories, and corporate R&D departments globally.

SPBM-16A vertical planetary ball mill with 16 L total volume, four 2–4 L jars, 3 kW motor, 0–510 rpm jar speed, and 380V three-phase power. Order now.

SKU: AFPBM16A
Category: ,
Tags:
Brands:

Description

SPBM-16A LATERAL PLANETARY BALL MILL (LABORATORY TYPE)

LABORATORY & PRODUCTION GRADE EQUIPMENT

Product Introduction

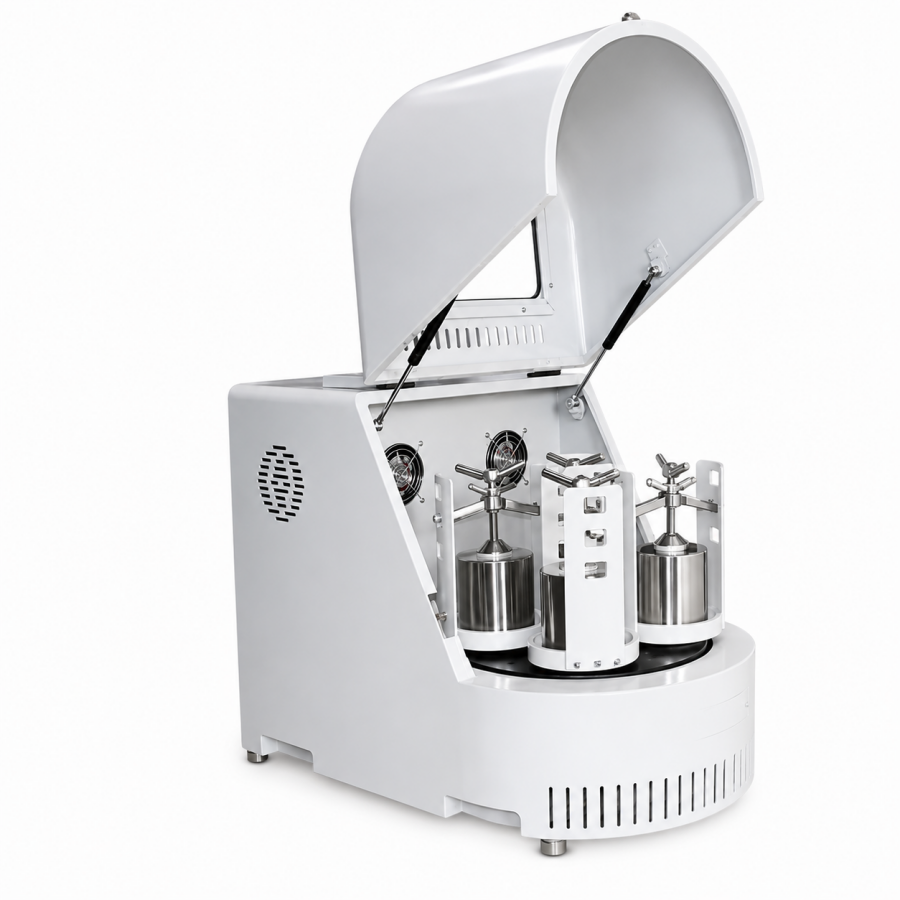

SPBM-16A is a compact laboratory and production-type lateral planetary ball mill designed for mixing, ultra-fine grinding, small sample preparation, new product development, and small-batch production of high-tech materials. The SPBM series features a compact design with complete functionality, high grinding efficiency, and low operating noise—making it the core equipment for preparing experimental powder samples in universities, research institutes, and enterprise R&D laboratories. With a single run capable of simultaneously preparing four samples and compatibility with vacuum grinding jars for closed-environment material grinding, SPBM-16A offers versatility for diverse research applications. Key specifications include a total volume of 16 L, four standard 4 L grinding jars, a net weight of 205 kg, overall dimensions of 950×600×710 mm, 3 kW motor power, adjustable planetary disk speed of 0–255 rpm, jar rotation speed of 0–510 rpm at a 1:2 speed ratio, and a 380V 50Hz three-phase power supply with variable frequency stepless speed regulation, timing, and forward-reverse cycle control.

Technical Parameters – Basic Configuration
Model Total Volume Single Jar Capacity Jar Qty Net Weight (kg) Dimensions (mm)
SPBM-0.4A 0.4L 100mL 4 29 500×300×340
SPBM-1A 1L 250mL 4 85 760×470×600
SPBM-2A 2L 500mL 4 85 760×470×600
SPBM-4A 4L 1000mL 4 85 760×470×600
SPBM-6A 6L 1.5L 4 85 760×470×600
SPBM-8A 8L 2L 4 150 880×560×642
SPBM-10A 10L 2.5L 4 150 880×560×642
SPBM-12A 12L 3L 4 150 880×560×642
SPBM-16A 16L 4L 4 205 950×600×710

Technical Parameters – Performance
Model Power Supply Supply Type Motor Power (kW) Speed Control Timing (min) Fwd/Rev Cycle (min) Disk Speed (rpm) Jar Speed (rpm) Speed Ratio Noise (dB)
SPBM-0.4A 220V 50Hz Single 0.25 VFD 1–9999 1–999 0–435 0–870 1:2 58±5
SPBM-1A 220V 50Hz Single 0.75 VFD 1–9999 1–999 0–335 0–810 1:2 60±5
SPBM-2A 220V 50Hz Single 0.75 VFD 1–9999 1–999 0–335 0–810 1:2 60±5
SPBM-4A 220V 50Hz Single 0.75 VFD 1–9999 1–999 0–335 0–810 1:2 60±5
SPBM-6A 220V 50Hz Single 0.75 VFD 1–9999 1–999 0–335 0–670 1:2 60±5
SPBM-8A 220V 50Hz Single 1.5 VFD 1–9999 1–999 0–290 0–580 1:2 60±5
SPBM-10A 220V 50Hz Single 1.5 VFD 1–9999 1–999 0–290 0–580 1:2 60±5
SPBM-12A 220V 50Hz Single 1.5 VFD 1–9999 1–999 0–290 0–580 1:2 60±5
SPBM-16A 380V 50Hz Three 3 VFD 1–9999 1–999 0–255 0–510 1:2 65±5

Standard Configuration
Item Description
Main Grinding Unit 1 pc (Included in Price)
Grinding Jars (Order Separately) 4 pcs of 4 L grinding jars (Order Separately)
Available Materials: WC-Co · Al₂O₃ · Agate · YSZ · SS · PU · Ceramic · Nylon
Grinding Balls (Order Separately) 40% of the jar capacity (Order Separately)
Available Materials: WC-Co · Al₂O₃ · Agate · YSZ · SS · IC-PU

Application Details
  • Materials Science Research: Nanomaterials, composite materials, ultra-fine metal/non-metal powder preparation.
  • Pharmaceutical Field: Drug ingredient mixing, cell disruption, biological sample pretreatment.
  • Ceramics & Glass Industry: Uniform raw material dispersion, ceramic slurry preparation (kaolin, etc.).
  • Electronics & Metallurgy: Fine grinding of metal powders, semiconductor substrates, magnetic materials.
  • Environmental & Agriculture: Soil/geological sample testing, solid waste treatment, agricultural product quality analysis.

Product Features
  • High Grinding Efficiency: Compound planetary motion combining revolution and rotation delivers high energy density, far superior to traditional grinding equipment.
  • Uniform Particle Size: Three-dimensional motion trajectory ensures thorough material mixing, narrow particle size distribution, with minimum output particle size down to 0.1μm.
  • Multiple Grinding Modes: Supports both dry and wet grinding processes, compatible with various jar materials including stainless steel, alumina, polyurethane, and more.
  • Safe & Stable Operation: Equipped with safety interlock switches and motor overload protection, low-noise operation fully complies with laboratory safety standards.
  • Intelligent Control: Variable frequency stepless speed regulation, timing control, forward-reverse cycle, LED digital display, programmable operation for high experimental repeatability.

PACKAGING: This listing is priced for the SPBM-16A main unit only. The standard configuration includes 1 pc grinding host machine with variable frequency drive, timing control, and forward-reverse cycle functions. Grinding jars and grinding balls are ordered separately. Installation guidance and operational training support are provided upon request.
IMPORTANT NOTICE: The listed price is for the main unit; grinding jars and balls must be ordered separately. Select jar and ball materials compatible with your target material to avoid cross-contamination. The maximum jar loading capacity is two-thirds of jar volume. For detailed installation, operation, and maintenance instructions, consult the user manual prior to first use. If you have specific requirements for other SPBM models or custom configurations, please contact us at inquiry@atomfair.com.
TAILORED SOLUTIONS FOR RESEARCH
Contact our engineering team for technical support or official quotations.
EMAIL: inquiry@atomfair.com
Manufacturer: Atomfair LLC
Brand: ATOMFAIR®

This document outlines the critical operating constraints for the ATOMFAIR SPBM-16A planetary ball mill. Adherence to these constraints ensures safe and reliable operation in ultrafine grinding applications.

  • Power Supply Requirements: The SPBM-16A operates on a 380V/50Hz three-phase supply and requires a properly grounded circuit with overload protection.
  • Safety Interlock: The safety lock switch must be engaged to lock the cover before starting the motor to prevent accidental access during operation.
  • Material Compatibility: Select grinding jar and ball materials that are chemically and mechanically compatible with the target sample to prevent cross-contamination.
  • Vacuum Atmosphere Sealing: For optional vacuum grinding, ensure the jar sealing is verified before initiating the grinding cycle to maintain atmosphere control.
  • Load Capacity and Stability: The unit's 205 kg weight requires placement on a level, vibration-absorbing surface to prevent tipping during high-speed operation.

This procedure provides step-by-step instructions for safe initialization and operation of the SPBM-16A. Proper selection of grinding components and adherence to safety interlocks are required.

Required Equipment: Grinding jars (2-4 L), Grinding balls, Safety lock switch, Control panel with frequency inverter

  1. Select Grinding Components
    Select grinding jars and balls that are chemically and mechanically compatible with your sample material.
  2. Inspect Jars
    Inspect the grinding jars for cracks, defects, and proper sealing surfaces before use.
  3. Verify Vacuum Seal (if applicable)
    If using optional vacuum grinding jars, verify the vacuum seal integrity by performing a leak test before loading.
  4. Load Sample and Media
    Load the sample and grinding balls into the jars, then seal the lids tightly.
  5. Secure Jars on Platform
    Place the sealed jars onto the four-station platform and secure them with the clamping mechanism.
  6. Engage Safety Lock
    Engage the safety lock switch to lock the cover before starting the motor.
  7. Program and Start Cycle
    Program the total running time and bidirectional rotation intervals on the control panel, then press start to begin the grinding cycle.

How does the fixed 1:2 revolution-to-rotation ratio on the SPBM-16A affect grinding performance for materials requiring different impact-to-shear ratios?

The SPBM-16A's fixed 1:2 ratio (max revolution 255 rpm, jar speed 510 rpm) provides a consistent energy transfer profile optimized for general ultrafine grinding. While the ratio is non-adjustable, the 3 kW motor maintains stable torque across the entire speed range, and users can adjust the charge volume, ball size, and grinding time (1–9999 min) to influence the effective impact-to-shear balance for specific materials.

What are the electrical and spatial infrastructure requirements for installing the SPBM-16A in a standard laboratory?

The SPBM-16A requires a 380V/50Hz three-phase power supply with a 3 kW motor; standard single-phase 220V outlets are insufficient. The unit measures 950×600×710 mm and weighs 205 kg, necessitating a reinforced bench or floor installation. Electrical wiring must support the 3 kW load, and a three-phase outlet must be available.

What safety precautions are required when using optional vacuum grinding jars with the SPBM-16A for air-sensitive materials?

The SPBM-16A supports optional 1–3 L vacuum grinding jars with a vacuum atmosphere grinding safety interlock system. Before operation, verify proper jar sealing and engage the safety lock switch. The unit also includes overload protection. For air-sensitive materials, ensure the inert gas or vacuum atmosphere is established and maintained throughout the grinding cycle.

The ATOMFAIR SPBM-16A vertical semi-circular planetary ball mill offers a 16 L total volume with four-station simultaneous processing, achieving ultrafine grinding down to 0.1 μm via a 1:2 revolution-to-rotation ratio. It requires a 380V three-phase power supply and operates at 65±5 dB; grinding jars and balls must be purchased separately.
