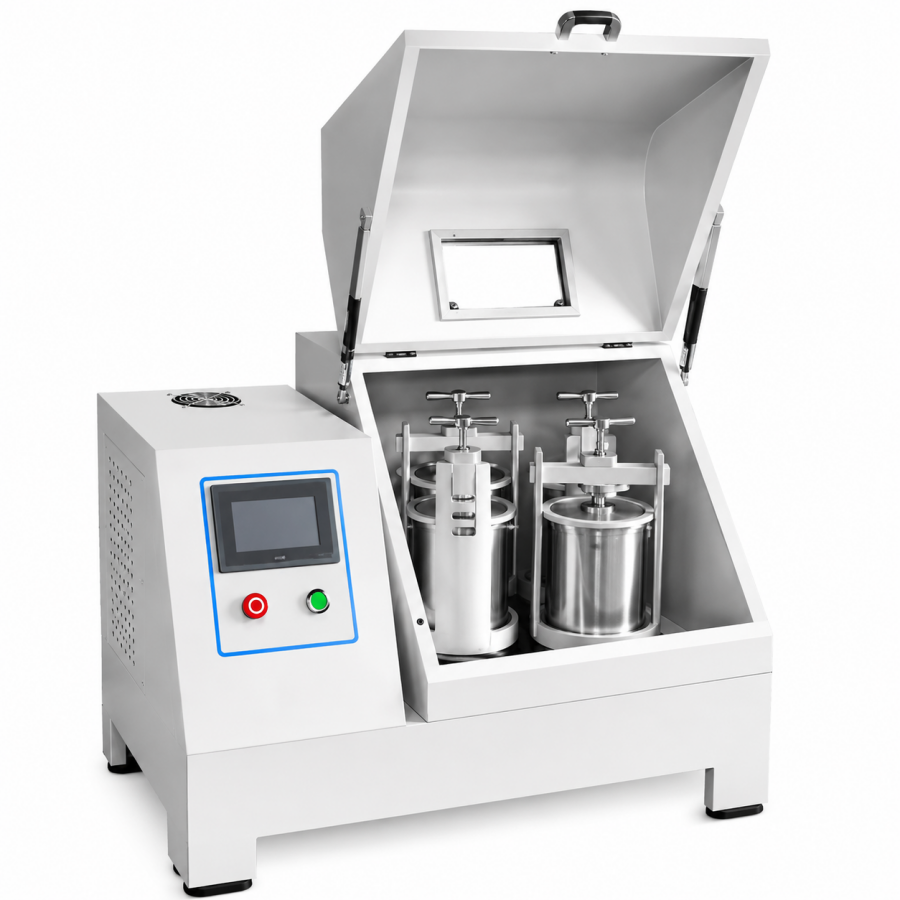

ATOMFAIR MPBM-(8-12)A TOUCHSCREEN PLANETARY BALL MILL PLC LAB GRADERESEARCH GRADE EQUIPMENT
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
TAILORED SOLUTIONS FOR RESEARCH
Contact our engineering team for technical support or official quotations.
EMAIL: inquiry@atomfair.com
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Manufacturer: Atomfair LLC
Brand: ATOMFair®
|
This document outlines the handling constraints and safety requirements for the ATOMFAIR MPBM-(8-12)A planetary ball mill. Proper material compatibility, jar selection, and control system operation are essential to prevent equipment damage and ensure operator safety.
- Jar and Ball Material Compatibility: Select jar and ball materials that are chemically compatible with the grinding material to avoid cross-contamination and equipment degradation.
- Electrical and Mechanical Safety: The unit requires a stable electrical supply and must be placed on a level, vibration-dampened surface capable of supporting 150 kg to prevent tipping.
- Control System Access: Use the password-protected PLC touchscreen to prevent unauthorized program changes that could lead to unsafe operating conditions.
- Vacuum Grinding Precautions: Vacuum grinding requires airtight jar lids and proper sealing; consult the user manual for compatible jar types and pressure limits.
- Post-Operation Shutdown: Allow the mill to come to a complete stop before opening the jar holders to avoid ejection of components or material.
Follow these steps to initialize and execute a grinding run on the touchscreen PLC-controlled ball mill. Always consult the full user manual for detailed safety procedures.
Required Equipment: MPBM-(8-12)A grinding main unit, appropriate grinding jars and balls, PLC touchscreen control interface, user manual
- Inspect the Equipment
Inspect the mill, jars, and balls for any visible damage or wear before each use. - Load the Grinding Jars
Load the selected grinding jars with the appropriate amount of material and balls, filling no more than two-thirds of jar volume. - Secure the Jars
Secure the jars tightly into the jar holders and verify the lids are properly sealed to prevent leakage or ejection. - Configure the PLC Program
Configure the grinding time, speed, and direction using the touchscreen PLC interface, ensuring parameters are within safe operating limits. - Start the Grinding Cycle
Start the grinding cycle and monitor the operation through the real-time display; ensure the unit operates without excessive vibration or unusual noise. - Stop and Cool Down
Stop the mill and allow it to cool down completely before handling the jars or opening the chamber. - Clean the Components
Clean the jars and balls thoroughly after each use to prevent material residue buildup and cross-contamination.
What is the trade-off between using 2L versus 3L grinding jars on the MPBM-(8-12)A in terms of particle size distribution and throughput?
The MPBM-(8-12)A accommodates either 2L or 3L grinding jars, with the jar holder inner diameter fixed at 162 mm and jar rotation speed range of 0–580 r/min. Using 3L jars increases batch throughput per run but may reduce the effective grinding energy density per unit volume, potentially requiring longer milling times to achieve the same fineness as with 2L jars. The optimal choice depends on whether your priority is higher batch yield or finer particle size distribution for a given milling duration.
Can the MPBM-(8-12)A be integrated with existing glovebox or inert atmosphere systems for air-sensitive materials?
The MPBM-(8-12)A supports vacuum grinding mode, enabling processing of air-sensitive materials without direct glovebox integration. However, the unit itself is a semi-circular standalone design (880 × 560 × 642 mm, 150 kg) and is not a dedicated glovebox model like the MPBM-0.2S. For full inert atmosphere operation, you would need to place the entire main unit inside a glovebox or use a sealed jar system; the PLC touchscreen control with password protection and fault alarm can be operated externally via remote monitoring if configured.
What are the critical infrastructure requirements for installing and operating the MPBM-(8-12)A in a laboratory setting?
The MPBM-(8-12)A requires a stable, level surface capable of supporting its 150 kg net weight, with overall dimensions of 880 × 560 × 642 mm. The 1.5 kW motor draws significant power, so a dedicated electrical circuit with appropriate grounding is recommended. For vacuum grinding mode, an external vacuum pump and compatible sealing system for the jars are needed. The PLC touchscreen should be protected from dust and moisture per the user manual, and the bidirectional rotation with power-off memory function requires reliable power to prevent data loss during operation.
The MPBM-(8-12)A provides advanced PLC touchscreen control with programmable memory and bidirectional rotation, enabling precise and reproducible grinding for advanced material processing. Its semi-circular design enhances stability, but additional jar and ball purchases are required, and careful material compatibility selection is essential to avoid contamination.
Positive
- PLC touchscreen with programmable control: The integrated PLC system supports password-protected multi-program editing, storage, and recall, along with real-time monitoring and automatic fault alarms, ensuring reproducible grinding protocols and operational security.
- Bidirectional rotation with power-off memory: Forward/reverse rotation control with precise timing and automatic retention of parameters after power interruption enables consistent grinding across experimental campaigns.
Trade-offs
- Jars and balls ordered separately: The main unit does not include grinding jars or balls; these must be purchased separately, requiring additional selection of material and capacity to match the target powder processing.
- Requires careful material compatibility selection: To avoid cross-contamination, users must select jar and ball materials compatible with the target material, adding a layer of planning and potential cost.
