Description

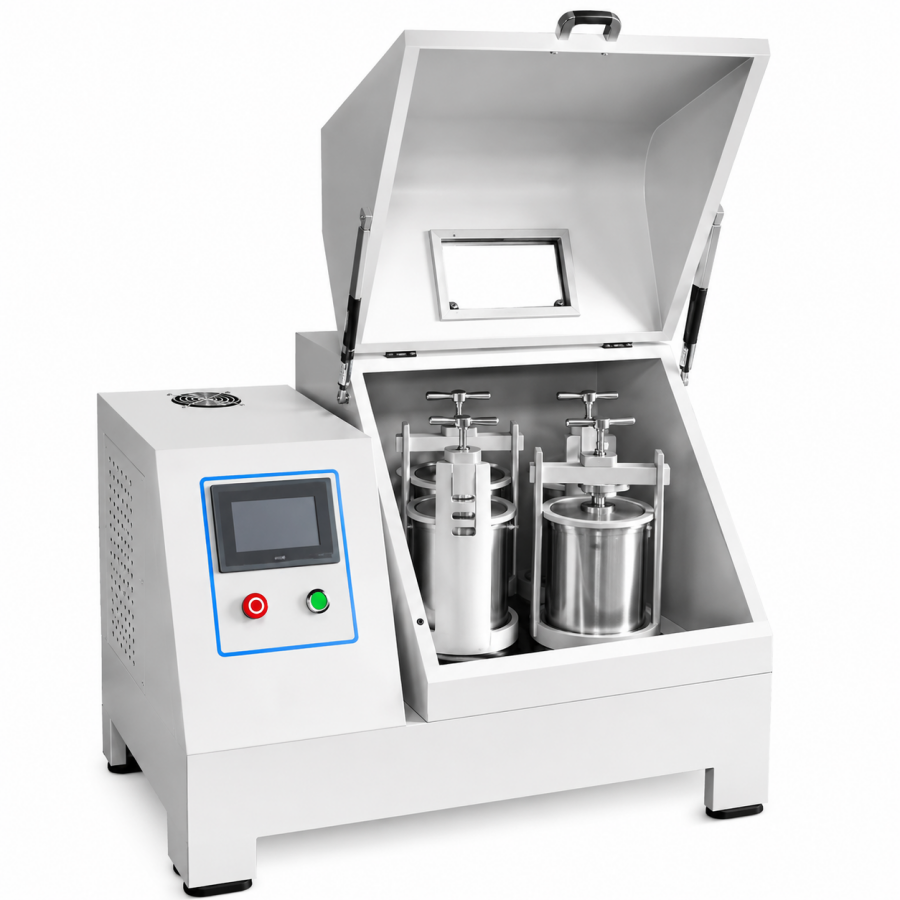

ATOMFAIR MPBM-60 TOUCHSCREEN PLANETARY BALL MILL PLC LAB GRADERESEARCH GRADE EQUIPMENT
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
TAILORED SOLUTIONS FOR RESEARCH
Contact our engineering team for technical support or official quotations.
EMAIL: inquiry@atomfair.com
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Manufacturer: Atomfair LLC
Brand: ATOMFair®
|
The MPBM-60 main unit requires a stable, grounded electrical supply rated for 7.5 kW motor load and must be operated in a well-ventilated area to dissipate heat from the high-torque drive system. Grinding jar and ball materials must be selected to be chemically compatible with the target powder to prevent cross-contamination and avoid reactive hazards during dry, wet, or vacuum grinding modes.
- Electrical Safety Constraint: The 7.5 kW motor and PLC control system require a dedicated, grounded power supply with appropriate overcurrent protection to prevent electrical faults.
- Material Compatibility Constraint: Select grinding jar and ball materials (e.g., WC-Co, Al₂O₃, Agate, YSZ, SS, PU, Nylon) that are chemically inert toward the sample to avoid contamination or hazardous reactions.
- Mechanical Stability Constraint: The 950 kg unit must be placed on a level, vibration-dampened surface capable of supporting its weight and dynamic loads during operation.
- Vacuum Grinding Containment Constraint: When using vacuum grinding mode, verify that all jar seals and connections are intact to maintain vacuum integrity and prevent powder leakage.
This procedure covers the safe initialization, program setup, and operation of the MPBM-60 PLC touchscreen planetary ball mill for dry, wet, or vacuum grinding. Proper material selection and jar loading are critical to avoid mechanical imbalance and cross-contamination.
Required Equipment: MPBM-60 main grinding unit, Four compatible grinding jars (ordered separately), Grinding balls (ordered separately, fill to 40% jar capacity), PLC touchscreen control interface
- Select and load grinding jars and balls
Select four grinding jars and corresponding balls made of a material compatible with your sample, then load each jar to approximately 40% capacity with balls and the remaining volume with sample. - Secure jars in the holder
Mount the loaded jars into the 275 mm inner diameter jar holder and tighten all clamps to ensure they are firmly seated and balanced. - Power on and access the PLC control system
Connect the unit to the grounded power supply, power on the system, and enter the password-protected PLC touchscreen interface. - Program the grinding protocol
Set the jar rotation speed (0–260 r/min), select forward or reverse rotation, choose dry, wet, or vacuum grinding mode, and program the total run time using the multi-program editor. - Start the grinding cycle
Confirm all parameters on the touchscreen, then initiate the cycle and monitor real-time operation and fault alarms on the display. - Stop and unload after completion
Allow the mill to complete the programmed cycle or stop it manually, then power off and carefully remove the jars to collect the ground powder.
How does the MPBM-60's lower jar rotation speed (0–260 r/min) impact its grinding performance compared to higher-speed models in the MPBM series?
The MPBM-60 operates at a maximum jar speed of 260 r/min with a 1:1.5 speed ratio, which is lower than smaller models like the MPBM-6 (0–670 r/min). This trade-off accommodates larger 15L jars and a 7.5 kW motor for high-throughput milling of electronic ceramics and magnetic materials, but may achieve finer particle sizes less rapidly than higher-speed mills optimized for small batches.
Which jar and ball material combinations are recommended for grinding battery cathode materials like lithium cobalt oxide in the MPBM-60 to prevent contamination?
For battery cathode materials such as lithium cobalt oxide or lithium manganese oxide, the MPBM-60 supports jar materials including Al₂O₃ (95% alumina), YSZ (yttria-stabilized zirconia), and agate (natural SiO₂), with corresponding grinding balls in Al₂O₃, YSZ, or agate. These ceramic options minimize metallic cross-contamination compared to WC-Co or stainless steel alternatives.
What electrical and floor-loading specifications must be met for installing the MPBM-60 planetary ball mill?
The MPBM-60 requires a dedicated electrical supply capable of supporting its 7.5 kW motor and weighs 950 kg with dimensions of 1600×1070×1250 mm. The installation floor must accommodate at least 950 kg static load plus dynamic forces during operation; consult the user manual for detailed electrical and structural requirements.
The ATOMFair MPBM-60 Touchscreen Planetary Ball Mill integrates a 7.5 kW motor with PLC control for precise, reproducible grinding across dry, wet, and vacuum modes, but requires separate procurement of jars and media and a substantial lab footprint.
Positive
- PLC touchscreen with program management: The capacitive touch PLC system supports password-protected multi-program editing, storage, recall, real-time monitoring, and automatic fault alarm, enabling reproducible grinding protocols with enhanced process security.
- Three grinding modes and bidirectional rotation: Supports dry, wet, and vacuum grinding; bidirectional rotation with timing and power-off memory ensures consistent milling even after power interruption.
Trade-offs
- Separate jar and media procurement required: Grinding jars and balls are ordered separately, requiring careful material compatibility selection to avoid cross-contamination, adding procurement complexity and lead time.
- Large footprint and substantial weight: At 950 kg and 1600×1070×1250 mm, the MPBM-60 demands dedicated floor space and structural support, limiting placement flexibility in smaller laboratories.
