ATOMFAIR MPBM-0.2 TOUCHSCREEN PLANETARY BALL MILL PLC LAB GRADERESEARCH GRADE EQUIPMENT
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
TAILORED SOLUTIONS FOR RESEARCH
Contact our engineering team for technical support or official quotations.
EMAIL: inquiry@atomfair.com
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Manufacturer: Atomfair LLC
Brand: ATOMFair®
|
The MPBM-0.2 requires careful material compatibility to avoid cross-contamination. The unit must be operated in accordance with the user manual to ensure electrical safety and prevent mechanical damage.
- Material Compatibility: Select jar and ball materials compatible with your target material to avoid cross-contamination.
- Grinding Media Fill Level: Fill grinding balls to 40% of the jar capacity for optimal grinding efficiency.
- User Manual Adherence: Consult the user manual prior to first use for proper operation and safety.
- Fault Alarm Response: The automatic fault alarm system alerts the operator to abnormal conditions requiring immediate attention.
Begin by selecting appropriate grinding jars and balls that are compatible with your sample material. Follow the touchscreen interface to program the grinding parameters and monitor the process.
Required Equipment: Grinding jars (4 pcs, 50 ml), Grinding balls (40% jar volume), Touchscreen control system
- Inspect and Position
Inspect the main unit and ensure it is placed on a stable, level surface. - Select Jars and Media
Select four compatible grinding jars and grinding balls that match your sample material. - Load Sample and Media
Load the sample material into each jar and add grinding balls to fill 40% of the jar volume. - Secure Jars
Secure the jars onto the jar holders, ensuring they are properly seated. - Program Parameters
Program the grinding parameters, including rotation speed, duration, and direction, using the touchscreen interface. - Enable Password Protection
Enable password protection to prevent unauthorized changes to the program. - Start and Monitor
Start the grinding cycle and monitor the operation via the real-time display for any fault alarms.
What is the trade-off between the high jar rotation speed (1160 r/min) and the small jar holder diameter (50 mm) in the MPBM-0.2 for ultrafine grinding?
The MPBM-0.2 achieves jar rotation speeds up to 1160 r/min with a 50 mm jar holder inner diameter and Φ111 mm revolution diameter, generating intense planetary motion for ultrafine particle size reduction. This high-speed miniature design limits batch capacity to 50 ml per jar (4-jar configuration), making it ideal for small-batch high-purity research but not for production-scale milling, where larger models in the MPBM series are required.
Which jar and ball materials are recommended for the MPBM-0.2 when processing lithium cobalt oxide or alumina ceramics to avoid cross-contamination?
For lithium cobalt oxide, recommended jar materials include Al₂O₃, Agate, or YSZ to avoid metal contamination; matching balls of the same material should be used. For alumina ceramics, Al₂O₃ jars and balls are typical to maintain purity. The standard configuration lists 50 ml jars and 40% ball filling, available in WC-Co, Al₂O₃, Agate, YSZ, SS, PU, Ceramic, Nylon, and IC-PU, with the important notice advising selection compatible with the target material to avoid cross-contamination.
How does the power-off memory function on the MPBM-0.2 ensure protocol reproducibility in the event of an unexpected power loss?
The bidirectional rotation control system includes automatic power-off memory that retains all operational parameters after a power interruption, enabling the mill to resume the grinding protocol exactly where it stopped. This feature, combined with precise timing and password-protected multi-program storage, ensures consistent and reproducible grinding conditions across experimental campaigns even with intermittent power supply.

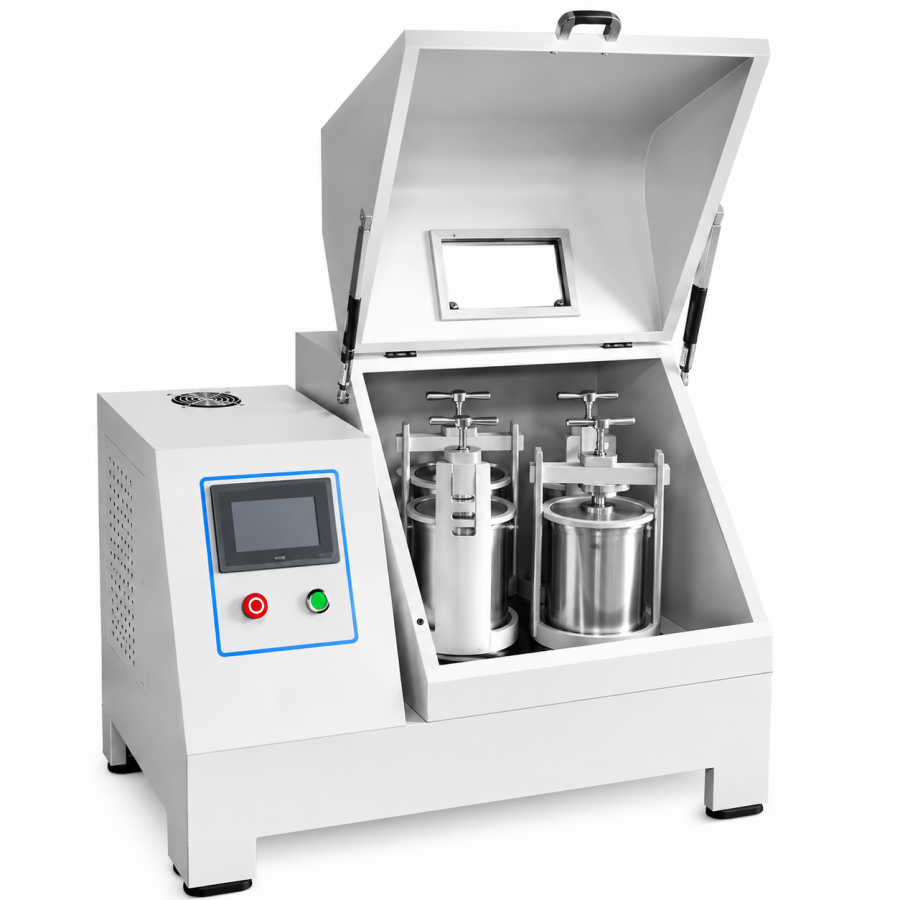

The ATOMFair MPBM-0.2 is a mini research-grade planetary ball mill with PLC touchscreen control, offering bidirectional rotation, programmable protocols, and support for dry, wet, and vacuum grinding. Its high-speed 1160 r/min jar rotation enables ultrafine grinding for small-batch advanced materials, but jars and balls are ordered separately, and capacity is limited to 0.2 L.
Positive
- PLC Touchscreen with Programmable Control: Password-protected multi-program editing, storage, recall, real-time monitoring, and fault alarm enhance reproducibility and process security.
- High-Speed Miniature Ultrafine Grinding: Up to 1160 r/min jar speed and 4-jar configuration deliver intense planetary motion for rapid pulverization to ultrafine particles in small batches.
Trade-offs
- Separate Ordering of Consumables: Grinding jars and balls must be purchased separately, requiring careful material compatibility selection to avoid cross-contamination.
- Limited Batch Capacity: The 0.2 L miniature model restricts processing to small sample volumes, unsuitable for larger pilot or production runs.
