Touchscreen Planetary Ball Mill MPBM-0.4A 250 W ATOMFAIR®

The MPBM-0.4A planetary ball mill generates mechanical vibration and acoustic noise during operation, requiring placement on a stable, level surface away from sensitive instrumentation. The PLC touchscreen control system must be protected from moisture, dust, and electrostatic discharge to maintain capacitive sensitivity and prevent fault alarm malfunctions.

• Electrical Safety Constraint: The 250 W motor draws peak current during jar acceleration, necessitating a dedicated grounded power outlet with overcurrent protection to prevent tripping or equipment damage.
• Mechanical Stability Constraint: Unbalanced jar loads at rotation speeds above 500 r/min can induce resonant vibration, requiring symmetrical jar mass distribution and secure jar holder clamping before operation.
• Thermal Management Constraint: Continuous operation at maximum jar rotation speed (870 r/min) for extended periods may elevate motor housing temperature above 60°C, requiring intermittent cooling intervals to prevent thermal overload shutdown.
• Contamination Control Constraint: Grinding jar and ball materials must be selected to match the target sample composition, as abrasive wear during milling can introduce trace contaminants from jar linings or media into the powder product.
• Vacuum Grinding Constraint: Vacuum grinding mode requires a sealed jar system and compatible vacuum pump; inadequate sealing may cause air ingress, oxidizing air-sensitive materials or reducing milling efficiency.

This procedure covers initial setup, jar loading, and program execution for dry grinding of ceramic powders. Always verify jar compatibility and secure clamping before starting the rotation sequence.

Required Equipment: MPBM-0.4A main grinding unit, Four 100 ml grinding jars with matching lids and seals, Grinding balls (40% jar volume, appropriate material), PLC touchscreen control panel

1. Inspect the grinding unit
   Inspect the main unit for any visible damage, loose connections, or debris on the jar holder surfaces before placing it on a stable, level workbench.
2. Load jars with sample and media
   Load each grinding jar with the sample powder and grinding balls to approximately 40% of the jar volume, ensuring symmetrical mass distribution across all four jars.
3. Seal and clamp jars securely
   Seal each jar with its lid and gasket, then clamp the jars firmly into the jar holders, verifying that each jar is centered and the locking mechanism is fully engaged.
4. Set rotation parameters on the PLC touchscreen
   Set the desired jar rotation speed (0–870 r/min), grinding duration, and rotation direction (forward, reverse, or bidirectional) using the PLC touchscreen interface.
5. Enable password protection and start the program
   Enable password protection if required, then press the start button on the touchscreen to initiate the programmed grinding cycle.
6. Monitor operation via real-time display
   Monitor the real-time operation display for any fault alarms or abnormal vibration, and stop the mill immediately if unusual noise or excessive heating is observed.
7. Allow the mill to come to a complete stop
   Allow the mill to come to a complete stop after the program ends, then unclamp and remove the jars carefully to avoid spillage of fine powder.

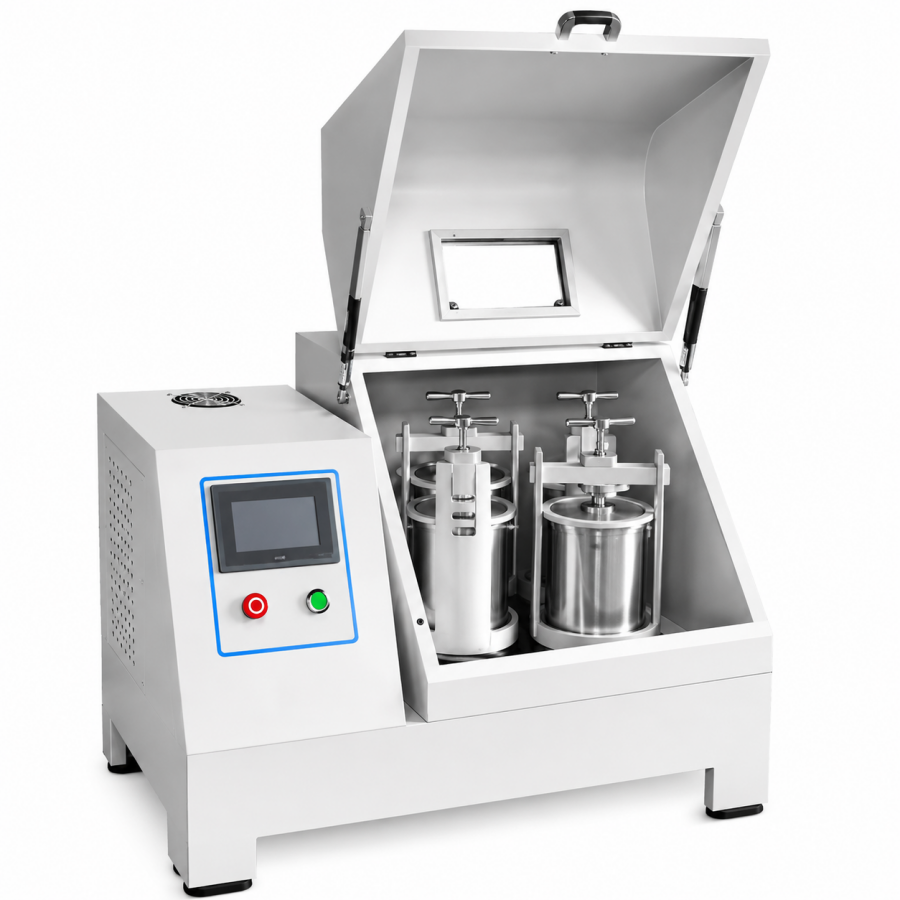

The ATOMFAIR MPBM-0.4A is a benchtop semi-circular planetary ball mill with PLC touchscreen control, offering bidirectional rotation, multi-program editing, and fault alarm for reproducible grinding of electronic ceramics and advanced powders. However, jars and media are sold separately, and the 250 W motor and 80 mm jar holder limit throughput to small-batch research applications.

Positive

• PLC Touchscreen with Programmable Security: Integrated capacitive touch PLC system with password protection, multi-program editing, storage, recall, and real-time fault alarm ensures reproducible grinding protocols and operational security.
• Bidirectional Rotation with Power-Off Memory: Forward/reverse rotation control with timing and power-off memory retention maintains consistent grinding parameters across experimental campaigns, even after power interruptions.

Trade-offs

• Consumables Ordered Separately: Grinding jars and balls must be purchased separately, requiring additional procurement coordination and compatibility verification for target materials.
• Limited Jar Size and Motor Power: The 80 mm jar holder and 250 W motor restrict capacity to 4 x 100 ml jars, suitable for small-batch research but not for pilot-scale milling.
