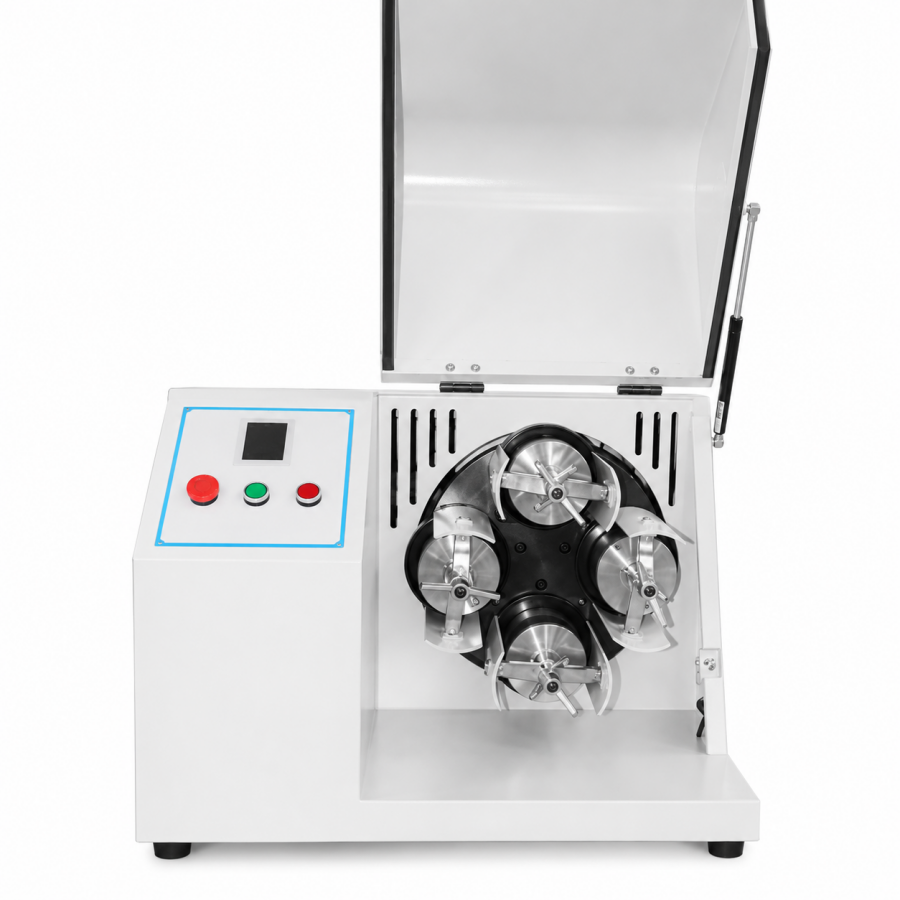

HPBM-16 HEAVY-DUTY HORIZONTAL PLANETARY BALL MILL 3KWLABORATORY & PRODUCTION GRADE EQUIPMENT
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
TAILORED SOLUTIONS FOR RESEARCH
Contact our engineering team for technical support or official quotations.
EMAIL: inquiry@atomfair.com
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Manufacturer: Atomfair LLC
Brand: ATOMFAIR®
|
The HPBM-16 planetary ball mill requires strict adherence to installation and operational constraints to ensure safety and equipment longevity. Failure to comply with the specified weight-bearing, braking, jar compatibility, and control programming requirements may result in mechanical failure or personal injury.
- Floor Load Capacity: The mill must be installed on a level, rigid foundation capable of supporting its 470 kg net weight to prevent structural fatigue or tipping.
- Brake Locking Requirement: The integrated brake locking mechanism must be engaged whenever lifting or discharging jars to prevent accidental drops or uncontrolled movement.
- Jar and Media Compatibility: Only grinding jars and media that are chemically and mechanically rated for the intended material must be used to avoid contamination, imbalance, or rupture.
- Cycle Programming Limits: The microcomputer control system should be programmed with appropriate forward-reverse intervals and idle periods to prevent motor overheating or gear wear.
Initialize and operate the HPBM-16 ball mill by following a sequence of inspection, jar preparation, parameter setting, and safety checks. Proper execution of these steps minimizes the risk of mechanical damage, contamination, or operator injury.
Required Equipment: Grinding jar set, Grinding media set
- Inspect Machine
Inspect the mill for shipping damage and confirm that all safety components, including the brake lock and emergency stop, are functional. - Select Jars and Media
Select grinding jars and media that match the hardness and chemical compatibility of the sample material to prevent contamination or mechanical failure. - Load Jars
Load the jars with sample material and grinding media to approximately 40% of jar volume to allow adequate milling action. - Secure Jars in Holders
Place each loaded jar into the holder and lock it firmly in position to prevent imbalance during rotation. - Set Control Parameters
Set the desired jar rotation speed, grinding time, and forward-reverse interval cycles on the microcomputer touch panel. - Engage Brake Before Access
Engage the brake locking mechanism before lifting or discharging jars to prevent unintended jar movement. - Start and Monitor
Start the mill and monitor the first grinding cycle for abnormal noise, vibration, or temperature rise.
How does the lower drive ratio of the HPBM-16 (0.096) affect its grinding performance compared to smaller HPBM models, and what throughput can be expected for hard ceramics?
The HPBM-16's lower drive ratio (0.096) compared to 0.134 for smaller models reduces maximum jar rotation speed to 480 rpm, trading higher torque for lower speed, which is beneficial for heavy-duty grinding of hard materials. The 3 kW motor and Φ385 mm revolution diameter enable processing of up to 4×4 L jars, suitable for pilot-scale batch production of materials like lithium battery cathodes and electronic ceramics.
Can the HPBM-16 be fitted with grinding jars made of tungsten carbide or agate for contamination-free milling of hard and ultra-trace samples?
Yes, the HPBM-16 accepts 4 L grinding jars of various materials including WC-Co, Al₂O₃, agate, YSZ, stainless steel, PU, ceramic, and nylon, all ordered separately. For hard samples requiring high wear resistance, WC-Co jars (HRA 93) are recommended, while agate jars (natural SiO₂) enable zero-metal analysis for ultra-trace element studies. The 182 mm jar holder inner diameter and locking mechanism ensure secure fit during high-speed operation.
What safety features are integrated into the HPBM-16 to protect operators during jar loading, milling, and powder discharge?
The HPBM-16 includes an integrated lifting and screen discharging mechanism with a brake locking safety function to prevent jar movement during maintenance. The thickened steel plate cabinet and CNC machined heat-treated parts reduce vibration and noise. Additionally, the microcomputer touch control system supports forward-reverse operation and power-off memory, allowing safe interruption and resumption of long grinding cycles.
The HPBM-16 is a heavy-duty horizontal planetary ball mill with a 3kW motor and dual-end double disc support frame, offering enhanced rigidity and load capacity for pilot-scale grinding. Its 0–480 rpm adjustable jar speed and 182 mm jar holder accommodate 4 L jars, but grinding jars and media must be purchased separately, adding to initial setup cost.
Positive
- High rigidity and load capacity: The dual-end double disc support frame and thickened steel plate cabinet provide superior structural stability and load-bearing capability compared to light horizontal planetary mills, enabling reliable pilot-scale and small-batch production.
- Precision low-noise drive system: CNC machined heat-treated parts and precision special alloy transmission gears ensure stable, low-noise high-speed operation, critical for consistent grinding results in sensitive applications like lithium battery materials and nanomaterials.
Trade-offs
- Grinding jars and media not included: The main unit is sold without grinding jars or balls; these must be ordered separately, requiring additional procurement planning and cost for the buyer.
- Heavy weight and large footprint: At 470 kg net weight and dimensions of 1640×840×1040 mm, the unit demands a robust floor support and significant laboratory or production floor space, limiting placement flexibility.
